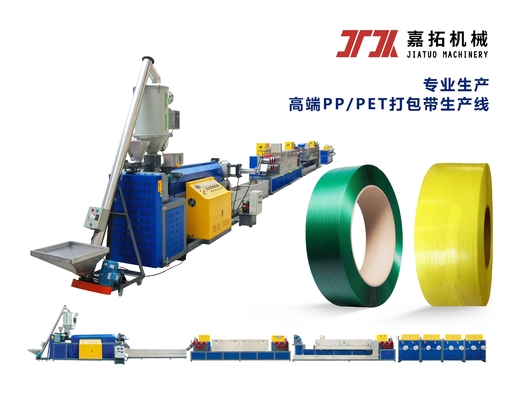

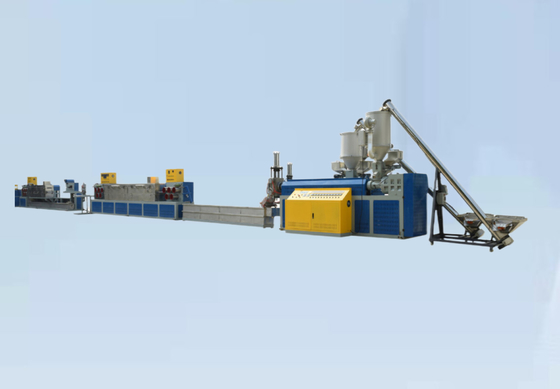

Packaging machinery PP PET strapping production line PET plastic steel strapping equipment for 9-32mm​

Packaging machinery PP PET strapping production line PET plastic steel strapping equipment for 9-32mm​
Packaging machinery PP PET strapping production line PET plastic steel strapping equipment for 9-32mm​
Packaging machinery PP PET strapping production line PET plastic steel strapping equipment for 9-32mm​ Packaging machinery PP PET strapping production line PET plastic steel strapping equipment for 9-32mm​ Packaging machinery PP PET strapping production line PET plastic steel strapping equipment for 9-32mm​ Packaging machinery PP PET strapping production line PET plastic steel strapping equipment for 9-32mm​ Packaging machinery PP PET strapping production line PET plastic steel strapping equipment for 9-32mm​

Large Image :  Packaging machinery PP PET strapping production line PET plastic steel strapping equipment for 9-32mm​

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JTPET-100
Document: Specification of PET Strap ...ne.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50 set/month

Packaging machinery PP PET strapping production line PET plastic steel strapping equipment for 9-32mm​

Description
Product Type: PET Strap Making Production Line Raw Material: PET Flakes Or 100% Recycled Material
PET Strap Width: 9-32mm PET Thickness Range: 0.6-12mm
Capacity: 200kg/h Driven Type: Electric
Motor: Siemens Voltage: According To Customer's Factory
Application: Packaged Material Product Color: Green/Pink/yellow/black
After-sales Service Provided: Video Technical Support, Online Support Warranty: 1 Year
Highlight:

Brick Kiln Pet Strapping Band Machine

,

16mm Pet Strapping Band Machine

,

16mm strapping roll manufacturing machine

Packaging machinery PP PET strapping production line PET plastic steel strapping equipment for 9-32mm​


PRODUCT DESCRIPTION



Advantages of PET plastic steel belt equipment:

Economical and efficient: With long service life, low maintenance requirements and high degree of automation, it is an economical and efficient equipment for the use of packaging materials.
Efficient----High strength and durability ensure efficient material handling, sustainable production and reduced downtime.
Safe-----The solid structure ensures safe and reliable operation and minimizes the risk of belt failure.
Energy saving----- Energy saving and environmental protection, high output and low power consumption.



PET belt making machine--screw:

1. Single screw extruder, equipped with automatic mixing and feeding system, PET plastic steel belt special screw and complete set of screw sleeve, with high plasticization rate, uniform melt, continuous and stable production.

2. High-performance gearbox reducer, large torque, long life and low noise.

3. Equipped with automatic feeding, proportioning, metering and mixing system for raw materials and additives, no manual addition is required, reducing manufacturing costs.



                                                            PRODUCT DESCRIPTION



Model PET-2 PET-3 PET-4 PET-6 PET-8
Raw materials Bottle flakes/crushed materials
Number of tapes 2 3 4 6 8
Width (mm) 9-32
Thickness (mm) 0.4-1.2
Maximum line speed(m/min) ≧150 ≧150 ≧150 ≧150 ≧150
Screw Model 90 100 125 150 180
Reducer model 200 250 280 315 350
Dehumidifier 1000 1000 2000 3000 3500
Metering Pumps 100CC
Production capacity /24 H 5-6T 7-8T 10-12T 12-15T 18-20T

Packaging machinery PP PET strapping production line PET plastic steel strapping equipment for 9-32mm​ 0







Packaging machinery PP PET strapping production line PET plastic steel strapping equipment for 9-32mm​ 1

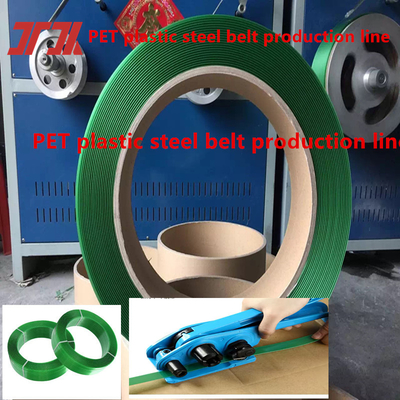

Advantages of Plastic Strapping

  • Savings : Polyester's unique qualities make it one of the best strapping materials to use for securing any type of palletized or unitized load
  • Proven Performance : Open top and cosed rail car shipments of Brick,Lumber and other panel products.
  • Ease of Disposal : Polyester strapping can be easily disposed of by rolling or bending.then recycled
  • Elongation Recovery : Polyester strapping provides approximately 2% elongation at normal work tension,which a;llows the materials to stretch.the strapping will recover this elongation however,keeping the strapping tight around the pacakge even if the load settles and shrinks in size.
  • Moisture and UV Resistant : Because it is plastic,it is moisture resistant and therefore unaffected by rusting that might occur with other packaguing alternatives which may stain or affect the quality of your product before it gets to its destination. it is also UV resistant to protect strapping from long periods of exposure to the sun.

Packaging machinery PP PET strapping production line PET plastic steel strapping equipment for 9-32mm​ 2

Packaging machinery PP PET strapping production line PET plastic steel strapping equipment for 9-32mm​ 3

  • erlapping and no horn shape, so that the packing belts maintain a good straightness, which is more suitable for the use of automatic packing machines, and ensures that the automatic equipment conveyor belts are in place. Do not drop the belt.
