Product Details:
|
| Product Type: | PET Strap Making Production Line | Raw Material: | PET Raw Material Or 100% PET Bottle Flakes Recycled |
|---|---|---|---|
| Application: | Waste Paper, Steel Pipe, Steel Coil, Medical | Processing Type: | Extrusion Molding Machine |
| Machine Control: | PLC | Driven Type: | Electric |
| Feeding Mode: | One Feed | Automation: | Automatic |
| Function: | High Effieciency | After-sales Service Provided: | Video Technical Support, Online Support |
| Warranty: | 1 Year | ||
| Highlight: | PLC PET Strap Making Machine,Packing Belt Making Machine CE ISO,CE ISO PET Strap Making Machine |
||

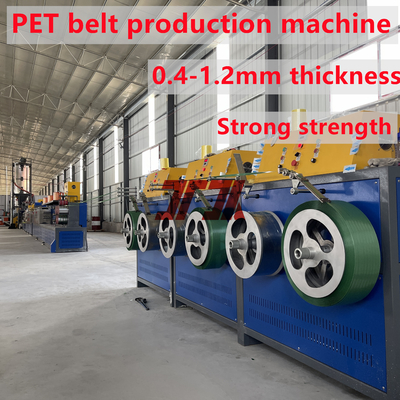

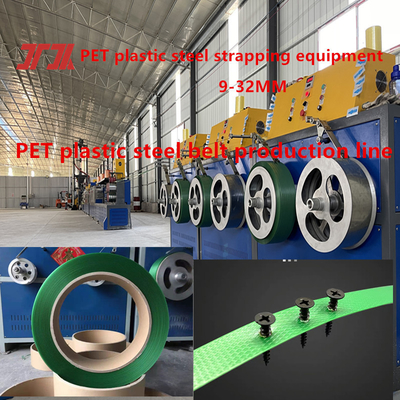

1 to 2/4 Pet Strap Plastic Packing Belt PP Tapes Extruder Making Production Line
PRODUCT DESCRIPTION
Shenzhen Jiatuo Plastic Machinery Co., Ltd, specilizing in PP & PET Strap production and development for more than 20years.
Products consist of PET/PP Strap Making Machine, Rattan Making Machine, Handheld Strapping Machine, Plastic Coating Machine, high-precision Plastic Embossing Roller, PP & PET Strap Winder, Tensile Testing Machine, Strap Printing Machine, Plastic Extrusion Screen Changer, Extrusion Machine Parts, automatic suction machine, screw feeder, crusher, etc; Automatic wrapping machine, automatic packing machine for all bags, automatic packing machine for all bags and automatic packing machine for all bags; High grade, high-strength and environment-friendly PP baling machine, PP packing belt, pet plastic steel belt and other packaging materials.
Excellent quality and professional service is the promise made by Jiatuo Machinery Co., Ltd. to new and old friends.
Character:
It use single screw extruder system
For PET strap production, It use 100% recycling material
Measurement pump ensure constant and stable production
Two pull four station filter can efficiently eliminate impurity
Large hauling force stretch device and insulation oven

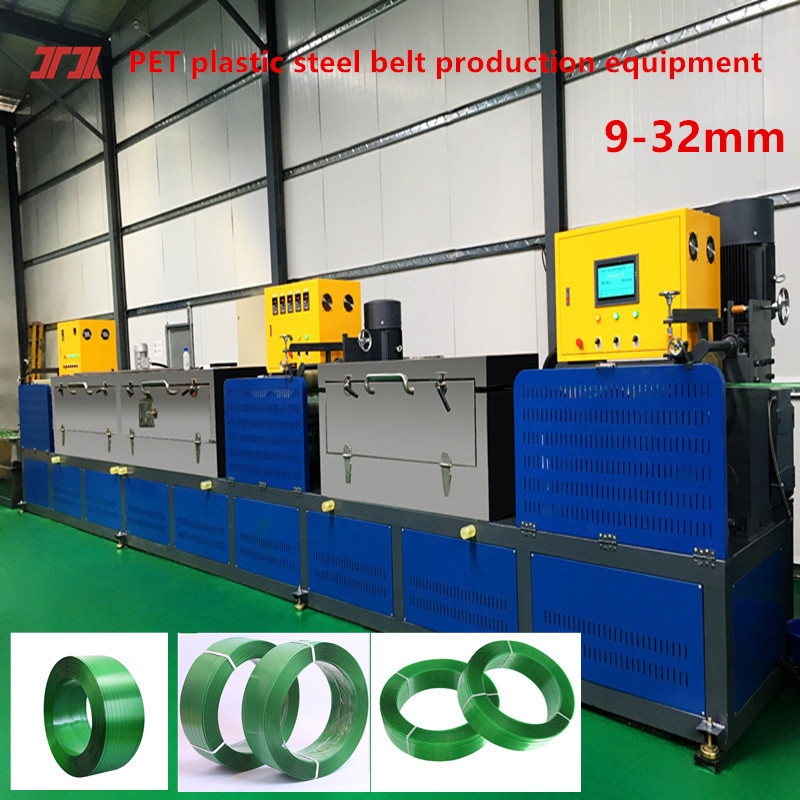

PET Strap Production Line Machine List
| Item | Quantity |
| 1. Lifting mixing drying system and screw feeding system | 1 set |
| 2. 450 type dehumidifier and drying crystallization tank | 1 set |
| 3. single screw extruder | 1 set |
| 4. high-power screen changer | 1 set |
| 5. metering pump with independent speed regulation system | 1 set |
| 6. Special mould for PET strap band | 1 set |
| 7. Cooling water tank | 1 set |
| 8. The first five-roller tractor | 1 set |
| 9. Stretching oven | 1 set |
| 10. The second five-roller tractor | 1 set |
| 11. Embossing machine | 1 set |
| 12. The third five-roller tractor | 1 set |
| 13. Cooling sizing system | 1 set |
| 14. The fourth three-roller tractor | 1 set |
| 15. Single station semi-automatic winding machine | 1 set |
PET and PP strap making machine introduction
As PET is easy to absorb moisture in the air, it must be fully dried. At the same time, in order to prevent bonding during drying, crystallization equipment needs to be configured. PP strap not need it.
Always PET two straps extrusion needs 90/30 single screw extruder.
PP two straps extrusion needs 75/30 single screw extruder.
Special design screw structurer could extrude PET PP materials smoothl,it does not create excessive shear molecular structure, and ensures the strength of the packing belt.
There are six heating tubes inside the oven, and the unique oven hot air circulation mode makes full use of heat energy to reduce power loss.
High temperature silicone seal to keep the oven super tight. Special high-efficiency stainless steel electric heating tube, heating quickly, durable.
It is controlled by PLC pressure closed loop control system. The pressure sensor will transmit signals, and PLC is used to control the speed of melt pump and extruder, so as to stabilize the extrusion of PET or PP materials
PET is Length 4000mm, PP 2000mm.
It is stainless steel materials.
The water is heated by water tank heating unit
The haul off rollers is five rollers, working to take PET or PP strap materials out of water tank
The oven is heated by electric power. Heating air is spread evenly by fans.
In the oven, the PET and PP strap will be stretched first time.
1. There are six heating tubes inside the oven, and the unique oven hot air circulation mode makes full use of thermal energy to reduce power loss.
2. High temperature resistant silicone seal to keep the oven super tight.
3. Special high-efficiency stainless steel electric heating tube, heating quickly and durable.
4. Heating again to shrink the packing belt in the oven, and the straightness of the output packing belt is more standardized.
This device is working for PET strap second time stretching.
PP strap not need stretching.
This 38Crmoal materials, high surface hardness rollers do embossing
As PET and PP materials has high deformation prestress after stretching. It has to do annealing and water cooling to fix the size.
It is working to take the materials out of annealing oven and cooling tank before winders
The winder could be designed into servo motor unit, inverter motor unit and torque motor according PET or PP materials.
The unique back tooth shaft is used to make the packing belts neatly arranged without overlapping and no horn shape, so that the packing belts maintain a good straightness, which is more suitable for the use of automatic packing machines, and ensures that the automatic equipment conveyor belts are in place. Do not drop the belt.
