Low Energy Consumption Alloy Steel Shaft Plastic PET Strap Making Machine
PRODUCT DESCRIPTION
PET strapping extrusion line : PET strap, also known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline, have been widely used in the steel industry, chemical fiber industry, aluminum ingots, paper, brick kiln industry, screw industry, tobacco industry, electronics, textiles and wood, etc.; is replaced by a new high-strength steel strapping, is the world’s most widely used for steel products.
For users to save the cost of equipment purchases, especially on the initial investment of users, a large new R & D design light (economic type) PET packing belt production equipment, can achieve single one, a two belt production, production of up to 150kg/h.

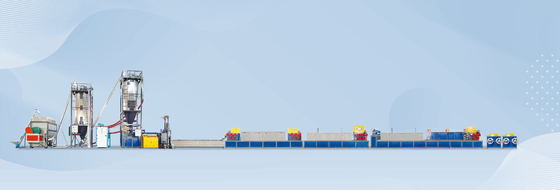

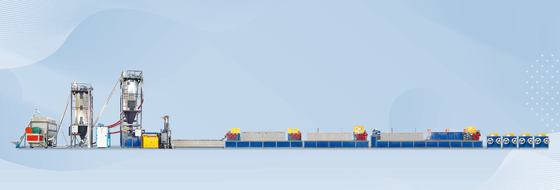

PET Strap Production Line Machine List
| Item |
Quantity |
| 1.Lifting mixing drying system and screw feeding system |
1 set |
| 2.450 type dehumidifier and drying crystallization tank |
1 set |
| 3. single screw extruder |
1 set |
| 4.high-power screen changer |
1 set |
| 5.metering pump with independent speed regulation system |
1 set |
| 6.Special mould for PET strap band |
1 set |
| 7.Cooling water tank |
1 set |
| 8.The first five-roller tractor |
1 set |
| 9.Stretching oven |
1 set |
| 10.The second five-roller tractor |
1 set |
| 11.Embossing machine |
1 set |
| 12.The third five-roller tractor |
1 set |
| 13.Cooling sizing system |
1 set |
| 14.The fourth three-roller tractor |
1 set |
| 15.Single station semi-automatic winding machine |
1 set |
FEATURES
1. Using the recycling bottle slices as raw materials by making them melt directly, which reduces the course of raw material-making
2. With the multi-purpose machine, it can produce PET straps in different specifications directly and doesn"t need to change the mould head
3. The products has the same transparency as made from new polyester slices, but the tensile strength and shock resistance are stronger
4. Low energy consumption, high production capability
5. Easy to operate, saves manpower
The raw material processing and extrusion system:
High efficiency pre crystallization and drying system, the equipment can be used 100% bottles of recycled materials, the production of high value-added packaging belt. Special design of PET special screw, single and double screw extruder can be used to choose:
Polyester Strap
The polyester (PET) strapping has outstanding toughness and in many cases is a valid alternative to steel strapping.Unalterable in conditions of temperature changes and insensitive to ultraviolet rays,the polyester strapping guarantees constant tension during each stage of management of the pack,providing conditions of absolute safety during transport.the strap is available in a wide range of measures,from 9mm to 32mm,and it can be used with manual otr automatic strapping tools.
