Product Details:
|
| Product Type: | PP Making Machine Equipment | Processing Type: | Extruding Machine |
|---|---|---|---|
| Raw Material: | PP | Screw Design: | Single-screw,Double-screw,single Or Double |
| Application: | Sheet,Strap,Pipe,packaging Band,Tape And Strap | Automation: | Automatic |
| Driven Type: | Electric | Voltage: | 220V-240V |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | 240kg/H Strapping Roll Manufacturing Machine,CE ISO pp strap extrusion machine,240kg/H pp strap extrusion machine |
||

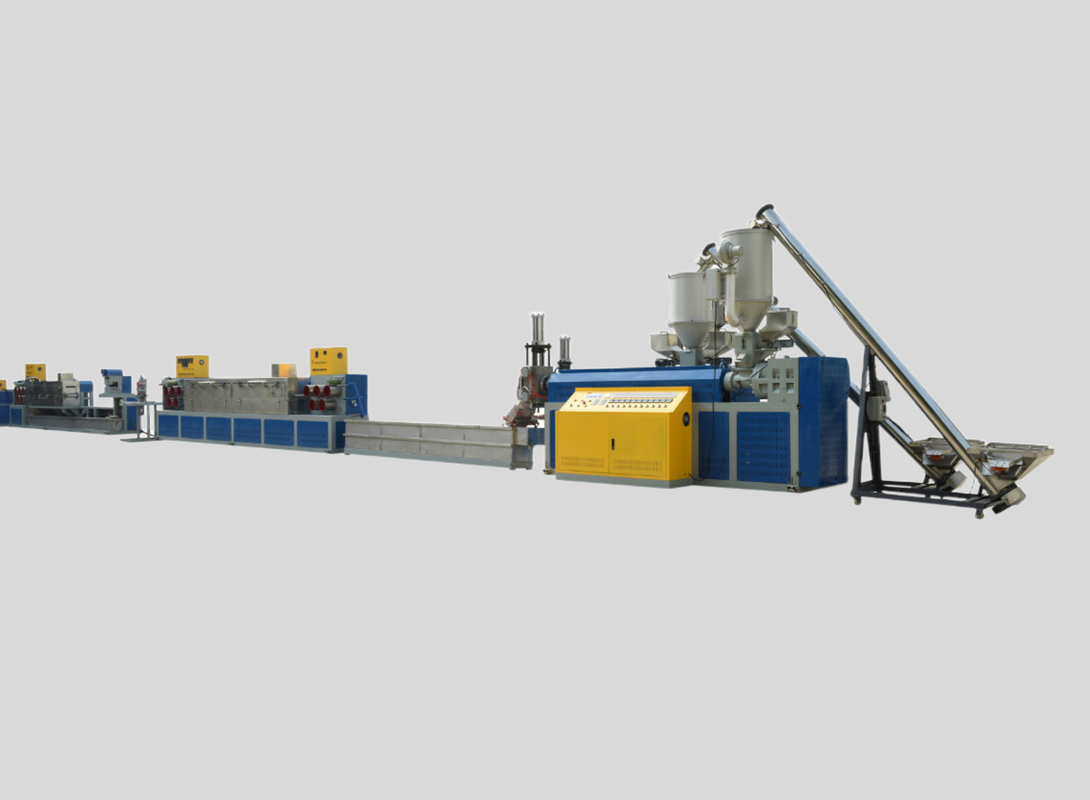

PLC Automatically PP Strap Band Making Machine Equipment Packaging Production Line
PRODUCT DESCRIPTION
The raw material can be 100% recycled material, which can reduce the produce cost and get a good profit.
And The PP bale is the substitution of the steel strap and has a lot of advantages such as good extension, high temperature
resistant, easy use.
It is mainly suitable for packaging for various trades.
| Machine size (L*W*H) mm | 3600*1200*4000 |
| Product arrange mode | PP One out four |
| Extrusion Capacit(kg/h) | 240 |
| Speed (m/min) | more than 250 |
| Number of Straps | 4 |
| PLC control system | PLC |
| Outgoing band width(mm) | 5-19 |
| Band Thickness(mm) | 0.4-1.2 |
| Capacity per day | 5.7 T |
APPLICATION & FEATURES
1. The conveyor width can be easily adjusted without the use of any tool, which can be quickly changed to the required size. Uniquely designed pull film part can be widely applicable to different types of shrink film.
2. Vertical sealing designed, sealing action is stable to provide excellent stability and durability.
3. It can reduce the sealing line folded to get a perfect sealing and cutting effect.
4. It can be equipped with extra contact device and pack smaller products.
5. Relative to the traditional machine, vertical sealing machine has a major breakthrough that sealing path can be automatically adjusted
6. It can be equipped with automatic feeding system.
7. With horizontal and vertical two groups of electric eyes the machine can adapt to different thickness of the products.
8. It is easier to replace the product sizes.
9. It can use the shrink film of different brands.
according to the thickness of the product, greatly improving the production efficiency. The fastest speed is up to 40 packs per minute.
For packaging those higher or lower products, it can even highlight the advantages. It can bring more satisfying effect of packaging to the user.
FAQ
1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm;
* What about the installation power of the PP strap machine? 135kw/155kw/195kw/439kw;
* What about the usage of PP strap? Packing boxes, money, paper;
* Will the strap be used for automatic strapping tool or manual tool? Both.
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm;
* What about the camber of strap? <20mm/2m;
* What about the usage of PET strap? Packing cotton, aluminum, wood, brick, boxes;
* Will the strap be used for automatic strapping tool or manual tool? Both.
CHARACTER

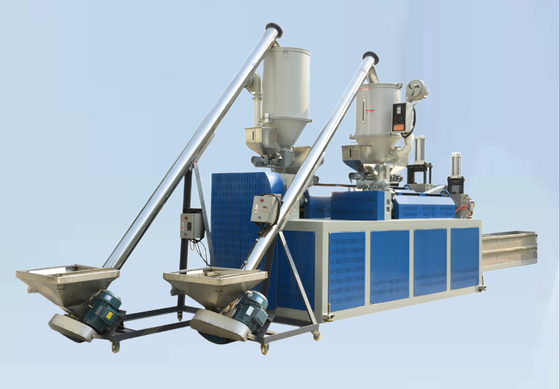

It use single screw extruder system
For PET strap production, It use 100% recycling material
Measurement pump ensure constant and stable production
Two pull four station filter can efficiently eliminate impurity
Large hauling force stretch device and insulation oven
WHY CHOOSE US
1. We major in Pet Strap Production Line for 20 years
2. Can use 100% recycled bottle flakes material
3. The final straps can be packed automatically
4. Always have at least 3 sets of sample machine in our workshop
5. Can take customers to see the running machines
6. Can test the machine for customers
