Large Image :  PET strapping machine high-speed PET strapping equipment PET extrusion machine

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JTPET-110
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50 set/month
Contact Now

PET strapping machine high-speed PET strapping equipment PET extrusion machine

Description
Product Type: PET Strap Making Machine Raw Material: PET Flakes Or 100% Recycled Material
PET Thickness Range: 0.6-12mm PET Strap Width: 9-32mm
Capacity: 200kg/h Driven Type: Electric
Voltage: According To Customer's Factory Motor: Siemens
Product Color: Green/Pink/yellow/black Application: Packaged Material
After-sales Service Provided: Video Technical Support, Online Support Warranty: 1 Year

PET strapping machine high-speed PET strapping equipment PET extrusion machine
PRODUCT DESCRIPTION OF PET STRAPS MAKING MACHINE:


PET plastic strapping (also known as PET strapping) production equipment is specialized for producing high-strength, environmentally friendly PET plastic strapping. Its key features include:
1. Efficient and Automated Production

Features :

1. Good tensile strength----PET strapping tape production line has the tensile strength of steel tape, good ductility, good impact resistance, not easy to break, and ensures the safety of product transportation.
2. Small elongation----Although PET strapping belt is a kind of plastic, its elongation changes very little, and its elongation is only 1/6 of polypropylene. It can maintain tension and make the expansion and contraction amount no longer change after packaging.
3. Strong temperature resistance----Experiments have proved that the melting point of PET strapping tape is about 260℃, and it can be used for a long time at 120℃ without deformation, and has good stability.
4. Good economic benefits----The density of PET strapping belt is 1.30~1.38g/cm3, which is only 1/6 of the density of steel tape (7.8g/cm3), equivalent to the length of 6-ton steel tape, and the price per unit length is relatively low.

                                                             EXTRUSION PARAMETERS TABLE


ModelPET-2PET-3PET-4PET-6PET-8
Raw materialsBottle flakes/crushed materials
Number of tapes23468
Width (mm)9-32
Thickness (mm)0.4-1.2
Maximum line speed(m/min)≧150≧150≧150≧150≧150
Screw Model90100125150180
Reducer model200250280315350
Dehumidifier10001000200030003500
Metering Pumps100CC
Production capacity /24 H5-6T7-8T10-12T12-15T18-20T


PET strapping machine high-speed PET strapping equipment PET extrusion machine 0

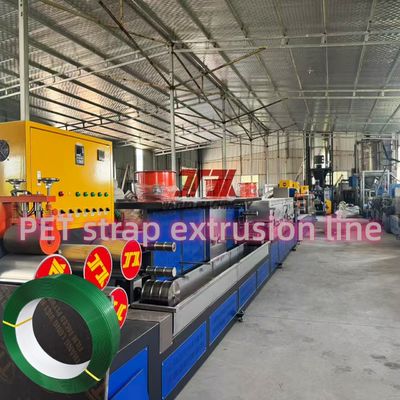

PET plastic steel belt production line extrusion process:
Horizontal feeder ----mix different PET crushed materials or bottle flakes evenly.
Drying barrel ------ heat the PET raw materials to dry the moisture.
Dehumidifier--------remove the moisture in the PET raw materials.
Extrusion molding-------make the molten PET belt blank pass through the mold to form.
Cooling water tank-------cool the extruded PET belt blank to ensure its molding.
Tractor--------tow the cooled PET strapping belt to maintain a stable production speed.
Stretcher--------stretch the formed PET belt instantly, about 1-10 times
Oven--------heat the strapping belt to improve the toughness of the PET belt.
Embossing machine------emboss the surface of the strapping belt to increase friction and prevent slipping.
Forming oven--------heat and shape again to make the PET belt more standardized.
Rewinder---------roll the strapping belt into a roll for easy storage and transportation.
PET strapping machine high-speed PET strapping equipment PET extrusion machine 1

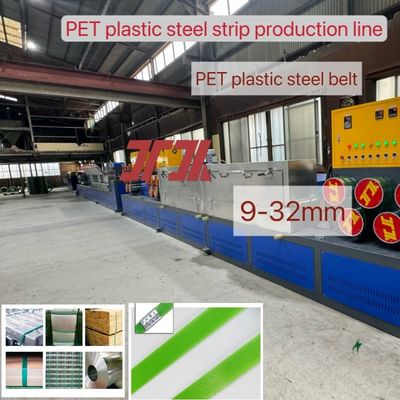

Applications of finished PET plastic steel strapping:
1. Glass
2. Steel
3. Brickworks
4. Marble
5. Cotton
6. Aluminium and other materials.
PET strapping machine high-speed PET strapping equipment PET extrusion machine 2

FAQ

Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
PET strapping machine high-speed PET strapping equipment PET extrusion machine 3
