PET plastic strap making machine 9-25mm pet strap manufacturing machine PLC control system
DESCRIPTION OF PET PLASTIC STRAP MACKING MACHINE

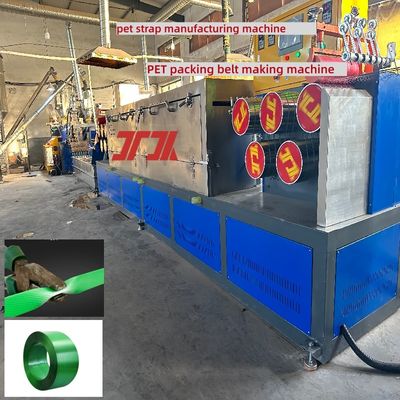

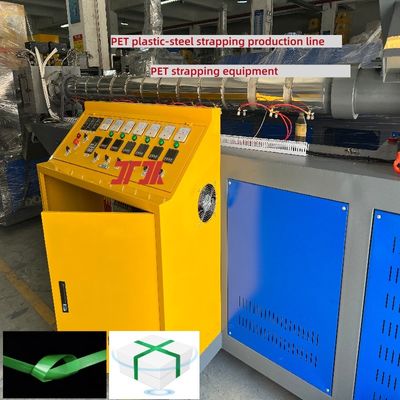

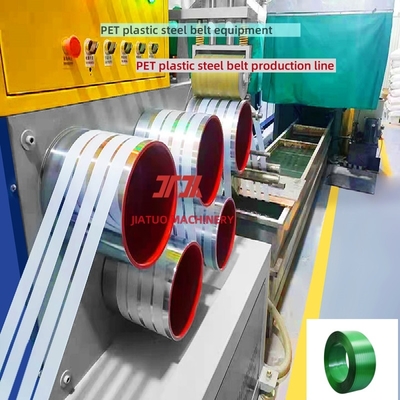

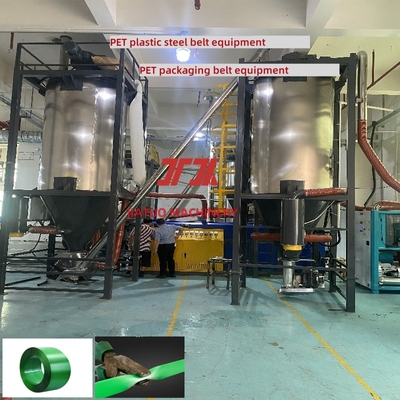

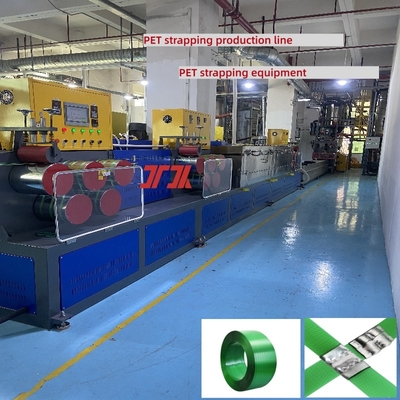

PET plastic strap making machine
PET plastic strap making machine is a specialized production line that converts recycled or virgin polyethylene terephthalate (PET) into high-strength plastic strapping through a process including melting, extrusion, stretching, shaping, and winding. PET plastic-steel strapping is widely used for heavy-duty packaging in industries such as steel, aluminum, papermaking, chemical fiber, and building materials due to its high strength, corrosion resistance, aesthetic appeal, and recyclability.
FEATURES:
1. Good tensile strength----PET strapping belt production line has the tensile strength of steel tape, good ductility, good impact resistance, not easy to break, and ensures the safety of product transportation.
2. Small elongation----Although PET strapping belt is a kind of plastic, its elongation changes very little, and its elongation is only 1/6 of polypropylene. It can maintain tension and make the expansion and contraction amount no longer change after packaging.
3. Strong temperature resistance----Experiments have proved that the melting point of PET strapping belt is about 260℃, and it can be used for a long time at 120℃ without deformation, and has good stability.
4. Good economic benefits----The density of PET strapping belt is 1.30~1.38g/cm3, which is only 1/6 of the density of steel tape (7.8g/cm3), equivalent to the length of 6-ton steel tape, and the price per unit length is relatively low.
EXTRUSION PARAMETERS TABLE
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Width (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dryer tank |
3000L |
4000L |
5000L |
6000L |
6000L |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
100CC |
100CC |
100CC |
100CC |
| Screen Changer |
Single cylinder |
| Winding machine |
Automatic winding/ Semi-automatic winding |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
ADVANTAGES:
Efficient production-----with high degree of automation and fast production speed.
High-quality products----The produced PET plastic steel belt has high strength, good toughness and strong tensile force.
Energy saving -----energy-saving design is adopted, the raw materials are mineral water bottles, which can be recycled and the manufacturing cost is low.
Easy operation----PLC automatic control, easy to operate.
FAQ
Q: What is the voltage of the PET plastic strap making machine?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic strap making machine?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic strap making machine?
A: 9-32mm
Q: Can the PET plastic strap making machine be customized?
A: Customization supported
Q: Where does the PET plastic strap making machine come from?
A: China.
Q: What are the certifications for the PET plastic strap making machine?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic strap making machine?
A: 1 set
Q: What is the weight of the PET plastic strap making machine?
20T, 40GP container * 3PCS
