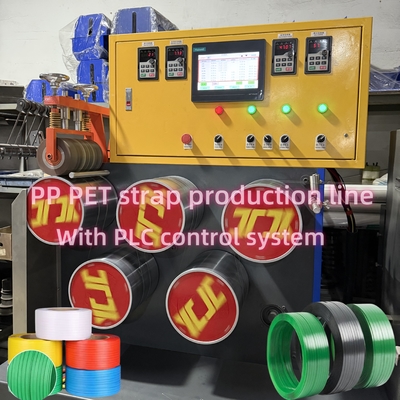

9-32mm PET strap Production Line with automatic winder and large filter area

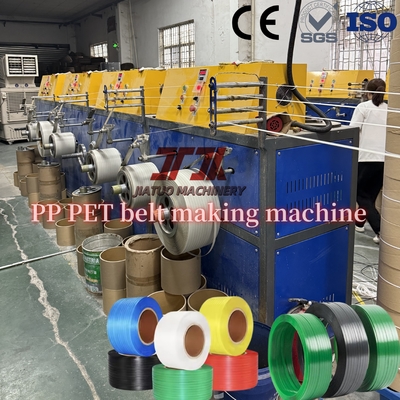

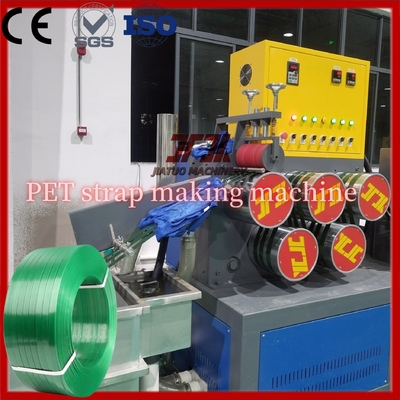

PET strap making machine Introduction
This machine is main used to make pet packing strap .
Adopt the plc control the whole line for the auotmatic production.
It use the melting pump and pressure sensor ensure the production stable and strap quality control
The raw material can use is 100% recycled pet flakes and PET crushed material from the waste pet bottles,or virgin material or mixed with each other.
Technical parameters of PET belt 2output production line
| Screw model |
90 (Single screw or double screw) |
| Number of strap |
2 straps |
| Width |
9-32mm |
| Thickness |
0.4-1.2mm |
| Screen changer |
Automatic/Manual |
| Control system |
PLC control(Chinese and English) |
| Production capacity |
220-250kg/H |
| Reducer Brand |
GUOMAO |
| Motor Brand |
Gugao |
| Pull of finial product |
150kg-900kg |
| Line speed |
More than 160m/min |
| Material |
PET crushed material/bottle flake material |
Process flow of PET belt production line
1. feeding to → 2.mixing raw materials→ 3. ingredients are vacuum dehumidification prebake→ 4. Vacuum dehumidification of raw materials→ 5. raw materials melting extrusion→ 6. material embryo expression(with embryo) cooling molding → 7.preheat the oven→ 8. firstly stretching → 9. secondly streching → 10. embossing → 11. tempering oven→ 12. cooling → 13.winding to finished product.

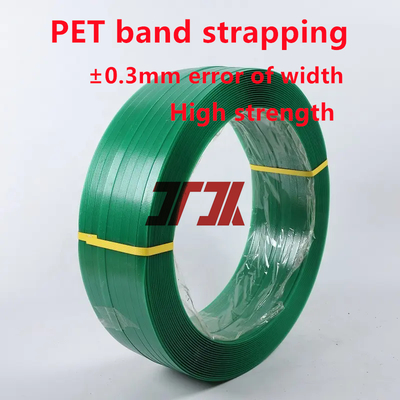

Application of PET strapping
PET packing strap, also known as PET plastic belt, is a world widely used new type package material substitute for steel belt. With years development on it and decrease on cost, it is now widely used in steel industry, chemical fiber industry, Aluminum industry, paper industry, Brick ceramics, Screw industry, tobacco industry, electric industry, textile industry and wood industry. It is most widely used steel belt substitute with high strength.
The features of PET packing belt production line
Diversity of raw materials: The raw materials used in this production line include PE, PP, PET, etc. these raw materials have good plasticity and processability, suitable for large-scale production.
Environmental protection: The PET polyester strapping belt produced by PET packing belt production line is a kind of recyclable environmental protection material, has good weather resistance, is stable in the temperature range of -50ºC to 100ºC, is suitable for various environmental conditions.
Efficient production: we have 2/3/4/6/8 strips at the same time, available for different production needs of customers to make a choice, and the production capacity is also very high, the output of 2 strips per hour can reach 220-250kg/H.
FAQ
Q: Can we send sample for customizing the machine?
A: No problem, you can send us samples, and our engineer will recommend and customize the machine according to your product and other demand.
Q: Can we go to your factory discussing more detail and checking the quality of the machine?
A: Yes, no problem, welcome to our factory and we will do our best to help you.
Q: Can we inspect the machine before delivery?
A: Yes, you can come and inspect the delivery. If you can not come, we have specialized engineer team to test the machine and inspect the delivery. We guarantee that you can receive a totally good machine.
