PET Packing Strap Extrusion Machine with 5000L drying barrel and PLC control system
Product Description of PET strap making machine
PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
Parameter of PET belt 3straps output making machine
1.use 100% recycled pet flakes and PET crushed material to reduce the cost
2.good dehumidifier drying system to ensure the material equal dry to produce high quality strapping
3.special design hot forming tensile tank to make good gorming,euqal width,straight strap.
| Model |
Capcity (kg/h) |
Strap Size |
Power(kw) |
Manpower |
| JT-PET90 |
220-250KG/H |
9-32mm |
85 |
1-2 |
| JT-PET110 |
300-330KG/H |
9-32mm |
100 |
1-2 |
| JT-PET125 |
400-450KG/H |
9-32mm |
110 |
1-2 |
| JT-PET130 |
480-500KG/H |
9-32mm |
200 |
1-2 |
Characteristic of PET packing strap machine
1. The raw material treatment is by our serious dehumidify and dryness system, it ensures the humidity in raw material less than 80PPM.
2. Closed circulation feeding system prevent the material from exposure on air to keep the dryness of raw material.
3. The screw is specially designed for PET application, it consists of separate and mixing part to keep the even plastication, also by fixed material feeding system, the extrusion is stable, which ensures the good dimension of PET strap.
4. The machine can produce 4 strap at the same time.
5. The mould is specially designed, equipped with two-stage filter.
6. Constant temperature heating device provide even cooling environment for PET strap to raise the tensile strength performance.
7. Anneal treatment for finished PET strap to remove the part remaining stress to keep good shape
8. The winder is double disk type with easy operation and coil changing.
Machine List
PET strap Extrusion Machine
※ Dehumidification and drying system 1 set
※ Oil and dust filter 1 set
※ Horizontal mixer(5000L) 1 set
※ Pre-drying tower(5000L) 1 set
※ Screw Feeder 3 set
※ Barrel 1 set
※ ¢125mm Extruding Machine 1 set
※ Melt pump 1 set
※ Single cylinder filter 1 set
※ PET Mould output 4straps 1 set
※ Cooling water tank 1 set
※ Stretching oven 1 set
※ Five roller gearbox 3 set
※ PLC electrical control system 1 set
※ Forming oven 1 set
※ Double disk winder 4 set

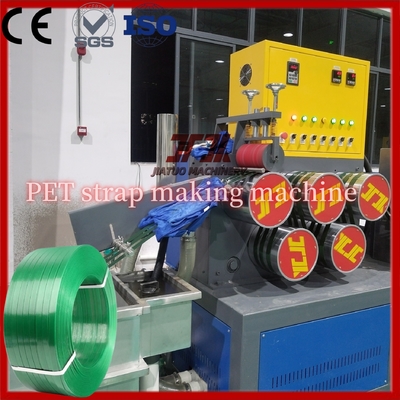

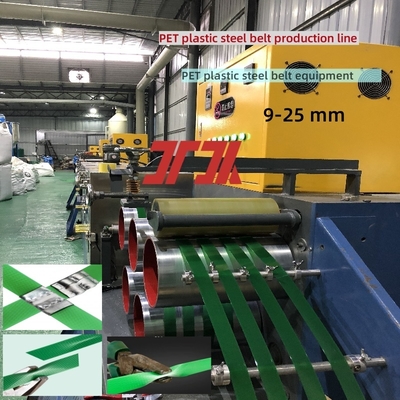

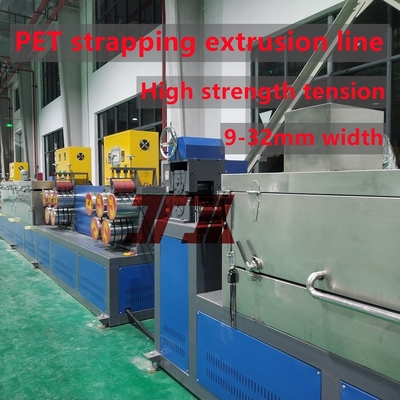

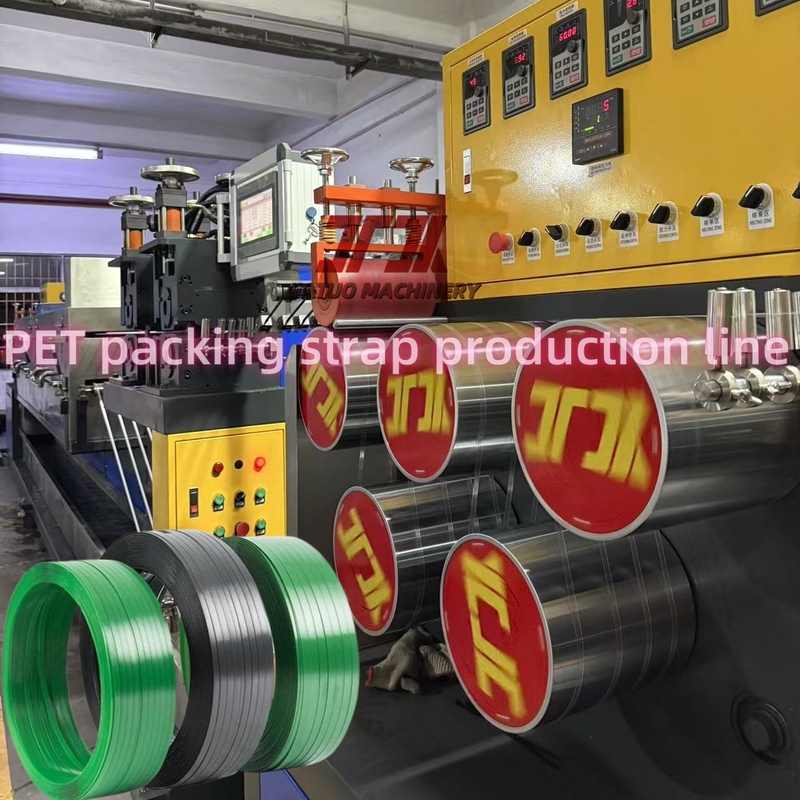

Machine Pictures
