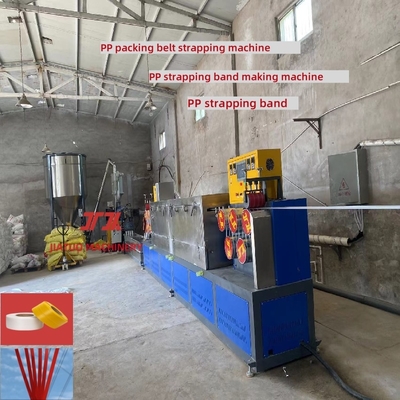

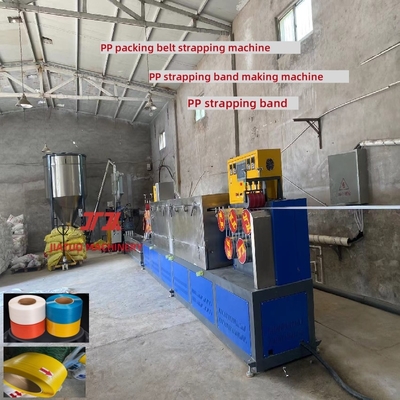

PLC control system PP packing strap making machine PP strapping production line High-speed PP strap equipment
Product Description of pp packing strap making machine:
pp strapping strap making machine
MAIN CPMPONENTS
Extruder------Heats and melts PP raw material (polypropylene pellets or recycled material) and extrudes it into a shape through a screw.
Extrusion Die------- Molten PP passes through a die to form a strip, which determines the width and thickness of the strapping tape.
Cooling Water Tank------- Rapidly cools and shapes the hot strip, ensuring its strength and surface smoothness.
Stretching System------- Longitudinally stretches the strip using multiple sets of heated and pulling rollers (a hot stretching process), increasing its tensile strength and toughness.
Embossing Device-------Imprints patterns or logos on the strip surface, increasing friction and aesthetics.

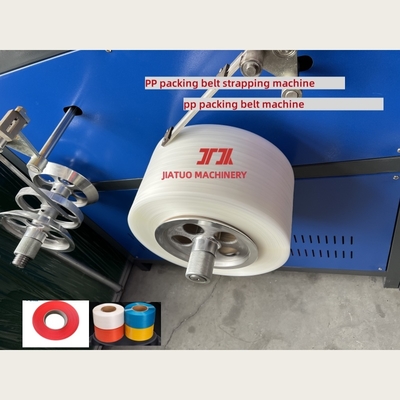

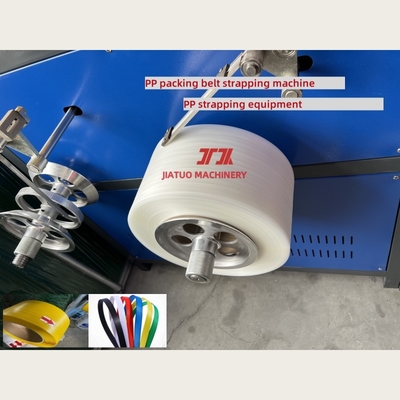

Winding machine-------- Winds the finished strapping tape into a roll, typically equipped with automatic roll-changing and cutting functions.
Raw materials------
100% PP polypropylene new material or recycled material
EXTRUSION PARAMETERS TABLE
|
Model
|
PP-2
|
PP-4
|
PP-6
|
PP-8
|
PP-10
|
PP-12
|
|
Raw material
|
PP polypropylene new material/recycled material
|
|
Number of tapes
|
2
|
4
|
6
|
8
|
10
|
12
|
|
Width(mm)
|
5-19
|
5-19
|
5-19
|
5-19
|
5-19
|
5-19
|
|
Thickness(mm)
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
|
Line speed(m/min)
|
≧260-300
|
|
PLC control system
|
PLC
|
PLC
|
PLC
|
PLC
|
PLC
|
PLC
|
|
Screw Model
|
90
|
110
|
125
|
135
|
135
|
135
|
|
Reducer model
|
200
|
220
|
250
|
280
|
280
|
280
|
|
Winding machine
|
Automatic winding machine /Semi-automatic winding machine
|
|
Screen Changer
|
Automatic/Manua
|
|
Production capacity 24H
|
2.5-3T
|
6-7T
|
8-9T
|
10-11T
|
12-13T
|
13--14T
|
Features of PP equipment:
It has the characteristics of high efficiency, flexibility, environmental protection, and durability. The use of advanced technology can quickly complete the packaging, the PP strap can adjust the length and width to adapt to different items, and the PP strap itself can be recycled and reused. The equipment is made of high-quality materials and has strong durability.
Energy saving and environmental protection, saving more than 40% of electricity
Strong production capacity, more than 50% of early production,
PLC control----
Adopting PLC control system, unique built-in memory parameters, the same product does not need to be debugged multiple times.
Services :
Technical Support and Service for pp strapping strap making machine
We offer a wide range of technical support and services for our pp strapping strap making machine products, including:
- Installation and commissioning of the extrusion line.
- Operational and maintenance training.
- Consultation and advice.
- Technical support.
- Spare parts supply.
- Regular maintenance.
- On-site repair and maintenance.
Packing and Shipping :
Packaging and Shipping for pp strapping strap making machine:
- Product will be packaged in standard export cartons.
- The weight of each carton is less than 20KG.
- Transport methods include air, sea, express and railway.
