100-300 m/min line speed 5-19 mm PP strapping production line PP strapping equipment

Large Image : 100-300 m/min line speed 5-19 mm PP strapping production line PP strapping equipment

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	JIATUO
Certification:	CE, ISO
Model Number:	JTPP-110

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	plastic film or other standard package for sea shipping
Delivery Time:	30~55 working days
Payment Terms:	L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability:	50set/month

Contact Now

100-300 m/min line speed 5-19 mm PP strapping production line PP strapping equipment

Description

Name:	PP Strapping Production Line	Raw Material:	Polypropylene PP Raw Material Pellets, Recycled Pellets
Screw Design:	Optional	Twin Screw Type:	Co-rotating Parallel Twin-screw
Driven Type:	Electric	Processing Type:	Extruding Machine
Automation:	Automatic	Application:	Packaging Strap
Width:	5-19 Mm	Thickness:	0.3-1.2 Mm
Highlight:	PP Strapping Equipment , PP Strapping Production Line , 19 mm PP Strapping Production Line

100-300m/min line speed 5-19 mm PP strapping production line PP strapping equipment

DESCRIPTION OF PP STRAPPING PRODUCTION LINE

Production speed:

usually 200-300 m/min (high-speed equipment can reach more than 300 meters).

Band width/thickness range: width 5-19mm, thickness 0.3-1.2mm (customizable).

Raw material requirements: PP new material or recycled material.

Power consumption: The whole machine power is about 100kW (depending on the production capacity).

FEATURES

Extrusion----Extrusion capacity can be customized according to customer requirements, and can produce 2-12 strips.

Oven-----Energy-saving and environmentally friendly, constant temperature oven, high output, low power consumption.

Winding machine-----Can be equipped with semi-automatic winding machine & fully automatic winding machine according to customer requirements

EXTRUSION PARAMETERS TABLE

Model	PP-2	PP-4	PP-6	PP-8	PP-10	PP-12
Raw material	PP polypropylene new material/recycled material
Number of tapes	2	4	6	8	10	12
Width(mm)	5-19	5-19	5-19	5-19	5-19	5-19
Thickness(mm)	0.4-1.2	0.4-1.2	0.4-1.2	0.4-1.2	0.4-1.2	0.4-1.2
Line speed(m/min)	≧260-300
PLC control system	PLC	PLC	PLC	PLC	PLC	PLC
Screw Model	90	110	125	135	135	135
Reducer model	200	220	250	280	280	280
Winding machine	Automatic winding machine /Semi-automatic winding machine
Screen Changer	Automatic/Manua
Production capacity 24H	2.5-3T	6-7T	8-9T	10-11T	12-13T	13--14T

Auxiliary Feeding Section:

The PP strapping equipment is equipped with ---- 3 sets of auxiliary feeders,

Can add dyeing masterbatch------- change the color of PP strap

Can add filling masterbatch----- reduce the cost of PP strap by more than 30%

Can add defoaming agent-------- eliminate the moisture of PP raw materials

Applicable to balers:

1. Fully automatic baler

2. High-speed baler

3. Semi-automatic baler

4. Handheld electric baler

5. Manual clamp baler

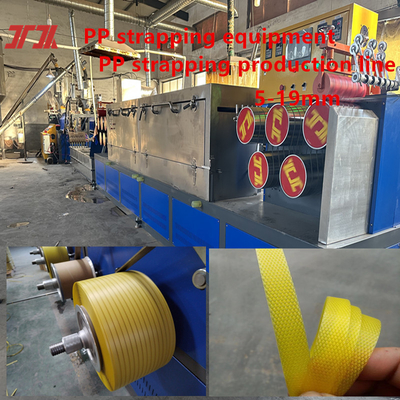

100-300 m/min line speed 5-19 mm PP strapping production line PP strapping equipment 1

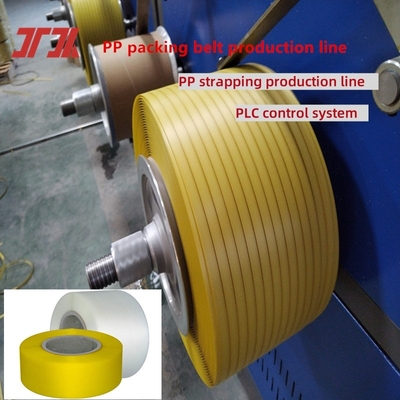

100-300 m/min line speed 5-19 mm PP strapping production line PP strapping equipment 2

FQA:

Q:What is the voltage of PP Strapping Production Line?
A:380V/50HZ, we support customization
Q:Can the PP Strapping Production Line be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP Strapping Production Line?
A:We are from China.
Q:Can PP Strapping Production Line provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP Strapping Production Line stable?
A:We have 30 years of manufacturing experience, and have their own PP strapping equipment plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
