PP Plastic Extruder 5-15 Mm PP Strapping Production Line PP Strapping Equipment With 45KW Siemens Motor

PP Plastic Extruder 5-15 Mm PP Strapping Production Line PP Strapping Equipment With 45KW Siemens Motor
PP Plastic Extruder 5-15 Mm PP Strapping Production Line PP Strapping Equipment With 45KW Siemens Motor PP Plastic Extruder 5-15 Mm PP Strapping Production Line PP Strapping Equipment With 45KW Siemens Motor PP Plastic Extruder 5-15 Mm PP Strapping Production Line PP Strapping Equipment With 45KW Siemens Motor PP Plastic Extruder 5-15 Mm PP Strapping Production Line PP Strapping Equipment With 45KW Siemens Motor

Large Image :  PP Plastic Extruder 5-15 Mm PP Strapping Production Line PP Strapping Equipment With 45KW Siemens Motor

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JT-PP
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 500 units/month

PP Plastic Extruder 5-15 Mm PP Strapping Production Line PP Strapping Equipment With 45KW Siemens Motor

Description
Product Type: PP Strap Making Machine Raw Material: PP
Processing Type: Extruding Machine Screw Design: Single-screw, Double-screw, Single Or Double
Application: Sheet,Strap,Pipe,packaging Band,Tape And Strap Driven Type: Electric
Automation: Automatic Voltage: 220V-240V
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Highlight:

PP strapping production line

,

PP strapping production extruder

PP plastic extruder 5-15 mm PP strapping production line PP strapping equipment with 45KW Siemens motor

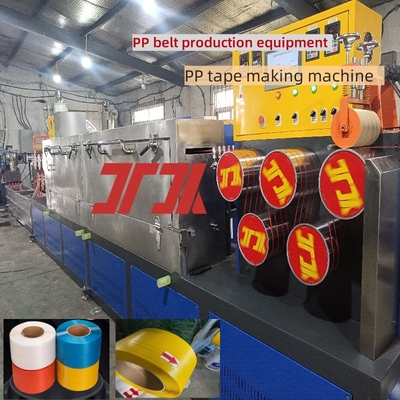

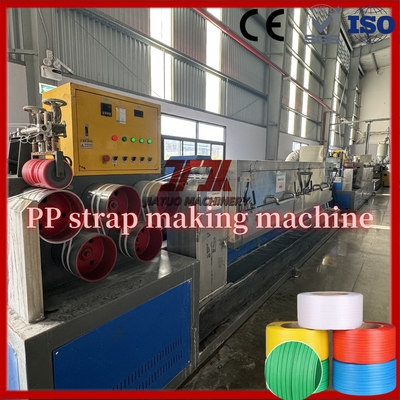

Description of PP strapping machine:





1. Raw materials------PP strapping equipment can produce plastic raw materials: recycled materials or new materials to produce strapping;

2. Screw------The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping acceptance standards;

3. Mold-----Foreign CNC machine cutting, high-precision die parts, so that the product molding quality is stable, the width and thickness error range is less than the national strapping acceptance range;

4. Screen changer-----Equipped with a non-stop automatic screen changer, the screen change does not need to stop, and the efficiency is maximized. The 4-net circulation filter has a large area and does not require frequent screen change.

PP Plastic Extruder 5-15 Mm PP Strapping Production Line PP Strapping Equipment With 45KW Siemens Motor 0



                                           EXTRUSION PARAMETERS TABLE

                                          (  PP strapping tape specifications)

Model Width Thickness Pull Gross weight Net weight Paper core Length
PP-05045 5.0mm 0.45mm >50kg 10kg 9.5kg Ø200mm 7000m
PP-08050 8.0mm 0.50mm >90kg 10kg 9.5kg Ø200mm 4700m
PP-09060 9.0mm 0.60mm >90kg 10kg 9.5kg Ø200mm 3150m
PP-10060 10.0mm 0.60mm >110kg 10kg 9.5kg Ø200mm 2350m
PP-11045 11.0mm 0.45mm >80kg 10kg 9.5kg Ø200mm 3650m
PP-12080 12.0mm 0.80mm >150kg 10kg 9.5kg Ø200mm 1700m
PP-13580 13.5mm 0.80mm >160kg 10kg 9.5kg Ø200mm 1550m
PP-15100 15.0mm 1.00mm >180kg 10kg 9.5kg Ø200mm 1050m
PP-18080 18.0mm 0.80mm >180kg 10kg 9.5kg Ø200mm 1150m
PP-19060 19.0mm 0.60mm >160kg 10kg 9.5kg Ø200mm 1350m
PP-19070 19.0mm 0.70mm >200kg 10kg 9.5kg Ø200mm 1200m
PP-19080 19.0mm 0.80mm >240kg 10kg 9.5kg Ø200mm 1000m

PP Plastic Extruder 5-15 Mm PP Strapping Production Line PP Strapping Equipment With 45KW Siemens Motor 1


ADVANTAGES

About embossing machine Features:

1. The embossing wheel has been nitrided and heat-treated to achieve a surface hardness of 60 degrees, which is strong and durable. The surface texture of the strapping tape embossed by this embossing machine is clear and rough enough, and the automatic strapping machine can use the belt to deliver force;

2. The upper and lower flower wheels of the embossing machine are equipped with synchronous gears to ensure synchronous rotation of the upper and lower wheels, ensuring that the flower spinning on both sides of the strapping tape is completely consistent, increasing the beauty and transparency of the strapping tape;

3. When assembling the upper and lower flower wheels, a fixed gap is left to prevent collision, which extends the service life of the flower wheels.

PP Plastic Extruder 5-15 Mm PP Strapping Production Line PP Strapping Equipment With 45KW Siemens Motor 2






WHY CHOOSE US

We have more than 30 years of manufacturing experience in the PP/PET strapping industry, and our R&D and after-sales personnel often go abroad to study;

We are a manufacturing factory with our own production workshop, and all accessories are processed by our own lathes.

We have our own production team, R&D team, after-sales team, sales team, etc.

The quality of the machines we produce is stable and the after-sales service is guaranteed.





 ABOUT AFTER-SALES

We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:

Pre-sales:

1.Layout plan of PP belt making machine.

2.Analysis of the cost of PP tape making machine.

3.Raw materials that can be used for PP tape making machine.

After-sales service:

1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.

2.Installation, commissioning and training of PP belt making machine.

3.Maintenance service of PP belt making machine.

4.Regular maintenance and repair

5.Troubleshooting and diagnosis

6.Software updates and upgrades

7.Spare parts and accessories

8.Training and technical advice

PP Plastic Extruder 5-15 Mm PP Strapping Production Line PP Strapping Equipment With 45KW Siemens Motor 3



FAQ:

Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping tape??
A: L:36 M.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.

Q:What does the wrapping machine part of the PP strapping equipment look like?

A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
