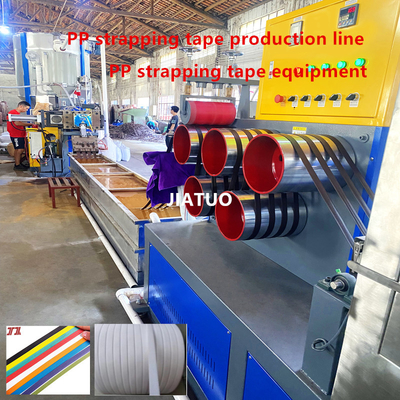

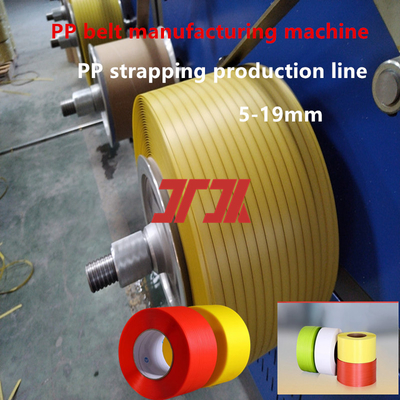

Plastic Machinery Customized High Speed Single Screw 5-19mm PP Strapping Production Line PP Strapping Equipment PP Extruder with Automatic Wrapping Machine
QUICK DETAIL ABOUT PP PACKING STRAP PRODUCTION LINE
Main information of PP strapping tape:
Production speed: usually 200-300 m/min (high-speed equipment can reach more than 300 meters).
Band width/thickness range: width 5-19mm, thickness 0.3-1.2mm (customizable).
Raw material requirements: PP new material or recycled material.
Power consumption: The whole machine power is about 100kW (depending on the production capacity).
Features :
High degree of automation: reduce manual intervention, improve efficiency, PLC control, easy debugging.
High production efficiency: continuous production, large output, 24-hour non-stop production.
Stable product quality: automated control ensures consistency of extrusion specifications, suitable for high-end strapping machines.
SPECIFICATION OF PP STRAPPING MACHINE
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Extrusion----Extrusion capacity can be customized according to customer requirements, and can produce 2-12 strips.
Oven-----Energy-saving and environmentally friendly, constant temperature oven, high output, low power consumption.
Winding machine-----Can be equipped with semi-automatic winding machine & fully automatic winding machine according to customer requirements
Features of the oven:
1. There is a high-power heating tube inside the oven, and the hot air circulation method makes full use of heat energy to reduce power loss.
2. High-temperature resistant silicone seals keep the oven super tight
3. Special high-efficiency all-stainless steel electric heating tube, fast heating, long-lasting and durable
4. Reheating makes the PP strapping tape shrink in the oven, and the straightness of the strapping tape produced is more standardized and the shrinkage rate is smaller.
5. Energy saving and environmental protection, saving more than 30-40% electricity.
FAQ ABOUT PLASTIC STRAPPING BAND MACHINE
Q. Are we manufactory of trade company?
A. We are factory has big workshop space and long history.
Q. What kind machines we produce?
A. Our factory produce plastic machines for PP & PET, PP strap making machine, PET extrusion production line...
Q. Can we produce the machine as customer costom order? A. Yes.
Q. Can customer send worker here to study the operation of the machine? A. Yes.
Q. Can customer send technician here to inspect the machine and loading?
A. We welcome you to visit us for this purpose.
Q. How long we need to produce the machines?
A. According to different machine model and configuation, we need different time, like 20 days to 2 months.
