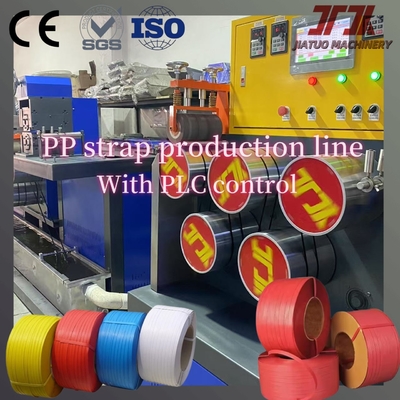

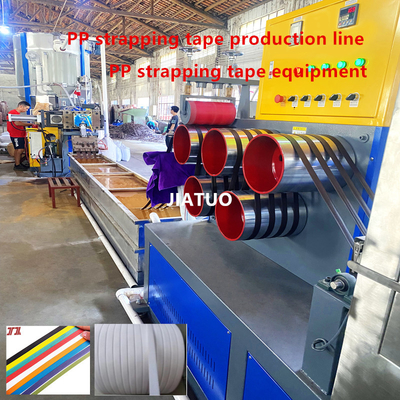

Plastic Machinery Twin Screw Sandwich PP Strapping Tape Production Line PP Strapping Tape Machine with 5-19mm Width
QUICK DETAILS OF PP STRAP MAKING MACHINE
The main components of PP strapping equipment:
Feeder---- transfer PP raw materials into the machine.
Extruder----heat and melt the PP raw materials and extrude them into shape.
Molding mold---- make the molten PP tape embryo pass through the mold to form a strip.
Cooling water tank----cool the extruded PP tape embryo to ensure its shaping.
Tractor----pull out the cooled strapping tape to maintain a stable production speed.
Oven---- heat the strapping tape to improve its strength and toughness.
Embossing machine---- emboss the surface of the strapping tape to increase friction and prevent slipping.
Shaping oven----heat again, shape, and make the PP tape more standardized.
Reeler---- reel the strapping tape into rolls for easy storage and transportation.
EXTRUSION PARAMETERS TABLE
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
APPLICATION & FEATURES OF PP STRAP EXTRUSION LINE
The features of line are as follows: screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part; gearbox with hardened gears; die can be precisely adjusted to ensure stable production and smooth surface of straps; stainless steel cooling trough with four thermo treatment processes displaces the traditional one; haul off rollers with bigger size ensure the quality of products; new rolling technology overcomes the shortcomings of traditional rolling machine like high gradient and bending delection; laser embossing roller makes clear and even patterns.
PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
The PP strapping tape production line can produce PP strapping tapes of different colors according to customer requirements, including: red, green, blue, black, yellow, transparent, white, etc.
The PP strapping tape production line can use twin-screw extrusion or single-screw extrusion according to customer requirements, and can produce all-plastic PP tapes or sandwich PP tapes.
About After-sales
We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:
Pre-sales:
1.Layout plan of PP belt making machine.
2.Analysis of the cost of PP tape making machine.
3.Raw materials that can be used for PP tape making machine.
After-sales service:
1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.
2.Installation, commissioning and training of PP belt making machine.
3.Maintenance service of PP belt making machine.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
FAQ ABOUT PP BELT STRAPPING PRODUCTION LINE
Q1:Are you a trading company or a factory?
A1:We are a factory,can give u best service.
Q2:When can I get my machine after I paid?
A2:We will deliver the machines on time as the date we agreed both side.
Q3:How can I install my machine when it arrives?
A3:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q4:What's your guarantee or the warranty of the quality if we buy your machines?
A4:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years.
