9-32mm Width Pet Band Production Machine For Making High Tension PET Strapping With PLC Memory System
Production description of PET strap making machine
PET strap production line is used to produce mechanical or manual bands with 100% PP recycled as materials, This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.
Application of PET strapping
PET packing strip is widely used in packing applications, it can replaced the steel strap for packing application, as its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
PET Strap Production Line Machine List
| Item |
Quantity |
| 1.Lifting mixing drying system and screw feeding system |
1 set |
| 2.450 type dehumidifier and drying crystallization tank |
1 set |
| 3. single screw extruder |
1 set |
| 4.high-power screen changer |
1 set |
| 5.metering pump with independent speed regulation system |
1 set |
| 6.Special mould for PET strap band |
1 set |
| 7.Cooling water tank |
1 set |
| 8.The first five-roller tractor |
1 set |
| 9.Stretching oven |
1 set |
| 10.The second five-roller tractor |
1 set |
| 11.Embossing machine |
1 set |
| 12.The third five-roller tractor |
1 set |
| 13.Cooling sizing system |
1 set |
| 14.The fourth three-roller tractor |
1 set |
| 15.Single station semi-automatic winding machine |
1 set |

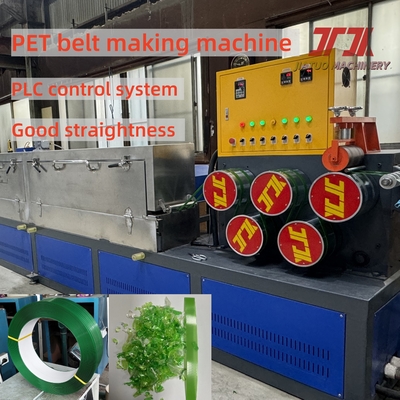

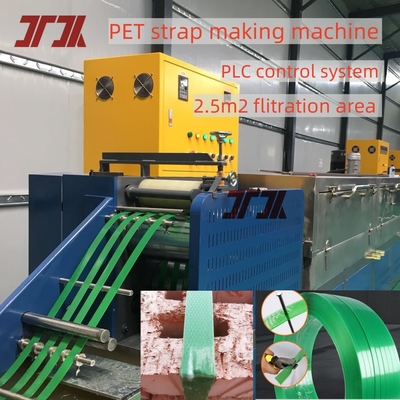

Photos of PET packing strip belt making machine
Pre-drying and dihumidifucation system

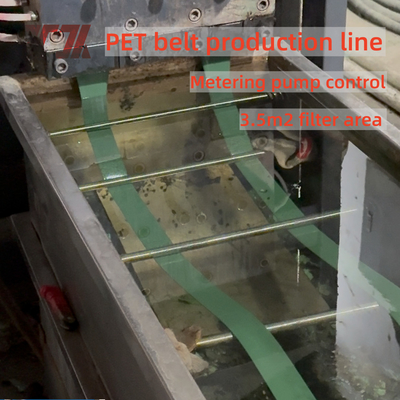

Main machine: Screw melting, 3.5m2 filtration system to filter material impurities, Metering pump and high-precision die head design for extruded materials
Five rolls strench machine: Through the stretching oven preheating will be carried out 2 sections of five-roller roller stretching, so that the stretch ratio to reach the optimal state, the width and thickness of the packing tape small error.
Double station winder: easy to change rolls, neatly wound, with automatic deskew function.
FAQ
Q2.When can I get the price?
A:We usually quote within 24 hours after getting your inquiry if you are urgent to get the price.Please call us or tell us by email so that we will take your inquiry as priority.
Q3. How can we guarantee quality?
A:Material inspect before mass production, make sure stable material quality(material IV, impurity, color,moisture,etc) QC will make inspect during whole production, including every technical data from customer, make sure it's all higher standard than customer needs.
Q4.Can you make other sizes and packaging for this product?
A:Yes, we can produce other sizes of products according to your requirements, usually our quotation includes ordinary packaging.If you need your own parcel, we can discuss in advance in order to get the solution.
Q5. Can we place a small order?
A:Yes, we accept trial small order, LCL shipment.
