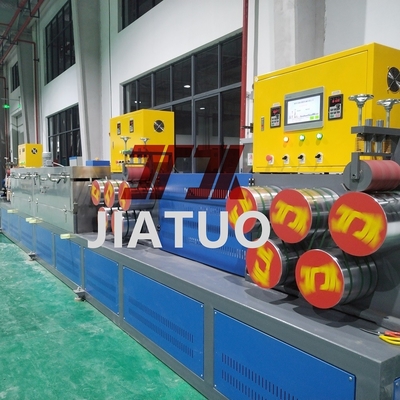

350-950kg Tension Strength PET Strap Extrusion Line For Making PET Belt With SGS Certification

350-950kg Tension Strength PET Strap Extrusion Line For Making PET Belt With SGS Certification

                            Technical parameters of PET belt 4output production line

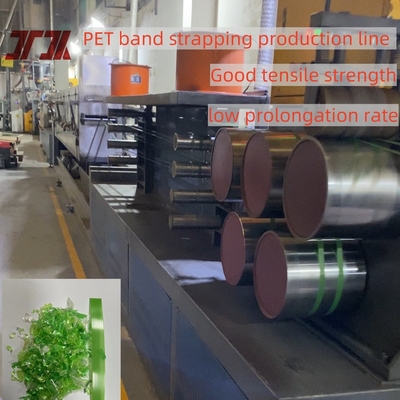

Process flow of PET belt production line

1. Feeding to → 2.mixing raw materials→ 3. pre-drying→  4. Vacuum dehumidification of raw materials→ 5. raw materials melting extrusion→  6. material embryo expression(with embryo) cooling molding → 7.preheat the oven→ 8. firstly stretching → 9. secondly streching → 10. embossing → 11. tempering oven→ 12. cooling → 13.winding to finished product

Advantags of PET strap making machine

1. process 100% recycled PET bottle flakes.

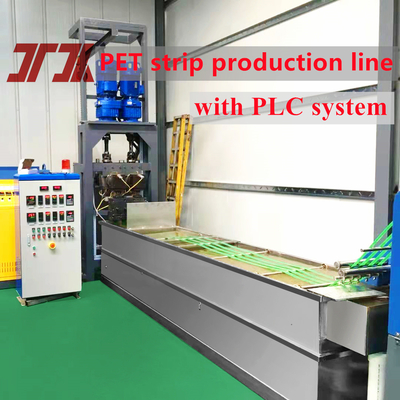

2. even plasticization and stable extrusion with PLC automatic control for the whole line.
3. as per different requirements, changing a coating materials for making strap has better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
4. Melt filter with two pistons with air venting design amd back flushing.
5. Production line just need 1-2 workers ,suit to 24 hours moving per day.

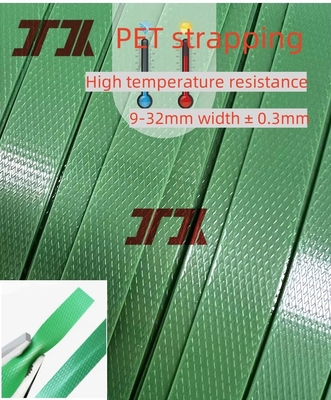

6. Finished product: width: 9-32 mm, thickness: 0.4-1.2mm.

FAQ

1.Are you manufacturer or trading company?
We are manufacturer.

2.Why choose us?
We have 30 years experience for producing machine.We can arrange for you to visit our local customer's factory.

3.Delivery time: 20~30 days.

4.Payment terms:
30% of total amount should be paid by T/T as down payment, the balance (70% of total amount) should be paid before delivery by T/T
or irrevocable L/C(at sight).
