500KG/H Capacity PET Strap Production Line With Automatic Winder And Strong Strength For Packaging

500KG/H Capacity PET Strap Production Line With Automatic Winder And Strong Strength For Packaging
500KG/H Capacity PET Strap Production Line With Automatic Winder And Strong Strength For Packaging
500KG/H Capacity PET Strap Production Line With Automatic Winder And Strong Strength For Packaging 500KG/H Capacity PET Strap Production Line With Automatic Winder And Strong Strength For Packaging 500KG/H Capacity PET Strap Production Line With Automatic Winder And Strong Strength For Packaging 500KG/H Capacity PET Strap Production Line With Automatic Winder And Strong Strength For Packaging 500KG/H Capacity PET Strap Production Line With Automatic Winder And Strong Strength For Packaging

Large Image :  500KG/H Capacity PET Strap Production Line With Automatic Winder And Strong Strength For Packaging

Product Details:
Place of Origin: CHINA
Brand Name: JIATUO CHINA
Certification: CE SGS ISO
Model Number: JTPET-125
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: plastic film
Delivery Time: 30-40 Days
Payment Terms: L/C, T/T
Supply Ability: 10000sets
Contact Now

500KG/H Capacity PET Strap Production Line With Automatic Winder And Strong Strength For Packaging

Description
Product Name: PET Strap Extrusion Line Material: PET Bottle Flakes Material/PET Recycle Material
Power Supply: 380V/50Hz/220V/60HZ Three-phase Automation: PLC Computer Touch Screen
Oil Removal And Dust Removal Filter: 1set Main Motor: 37KW(Siemens)
Neat Winding: YES Pre Drying Tower: 5000L
Production Capacity: 220-250kg/H Width: 9-32mm
Thickness: 0.4-1.2mm Line Speed: >260m/min
Highlight:

Strong Strength PET Strap Production Line

,

Automatic Winder PET Strap Production Line

,

500KG/H PET Strap Production Line

500KG/H Capacity PET Strap Production Line With Automatic Winder And Strong Strength For Packaging


                            Technical parameters of PET belt 4output production line



Item Product name Q’ty
1 Materials PET raw material or 100% PET bottle flakes recycled
2 Product PET output 4straps making machine
3 Capacity 450-500kg/h
4 Total install power 300kw, (actual power consumption is 50-55%)
5 Strap width 9 mm-32 mm
6 Thickness 0.4 mm-1.2 mm
7 Manpower 2person/shift
8 Workshop required L (58m) ×W (2m) ×H (8m)
9 Power source 380V, 50Hz, 3Phase (according to customer requirement)
10 Electric components Schneider
11 Inverter INVT
12 Switches Taiwan Fotek
13 Motor power Gugao
14 Gearbox GUOMAO
15 Warranty period 12 months



Process flow of PET belt production line



1. feeding to → 2.mixing raw materials→ 3. ingredients are vacuum dehumidification prebake→  4. Vacuum dehumidification of raw materials→ 5. raw materials melting extrusion→  6. material embryo expression(with embryo) cooling molding → 7.preheat the oven→ 8. firstly stretching → 9. secondly streching → 10. embossing → 11. tempering oven→ 12. cooling → 13.winding to finished product



500KG/H Capacity PET Strap Production Line With Automatic Winder And Strong Strength For Packaging 0

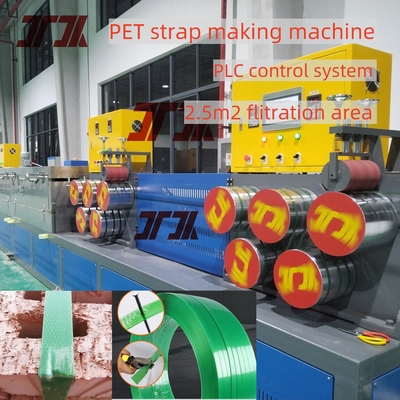

Feature of PET strap making machine



1. 100% recycle PET scraps or granules.
2. Completely PLC controlling, evenly plasticization and stable pressure extruding.
3. 2.5m2 filtration area.
4. Metal pump ensure continuously stable producing.
5. 1-8 straps extruding, according to customer request and straps size.
6. Produce monofilament by changing some parts.
7.Torque motor for winding machine.


FAQ



1.Are you manufacturer or trading company?
We are manufacturer.

2.Why choose us?
We have 30 years experience for producing machine.We can arrange for you to visit our local customer's factory.

3.Delivery time: 20~30 days.

4.Payment terms:
30% of total amount should be paid by T/T as down payment, the balance (70% of total amount) should be paid before delivery by T/T
or irrevocable L/C(at sight).
