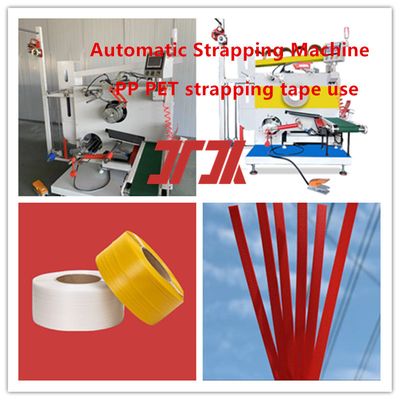

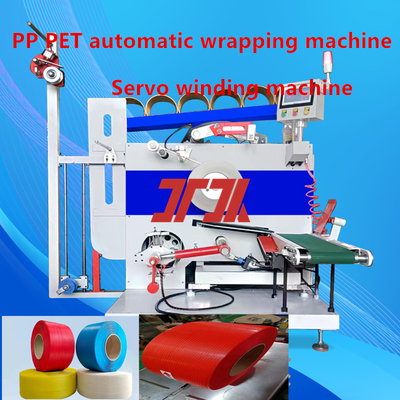

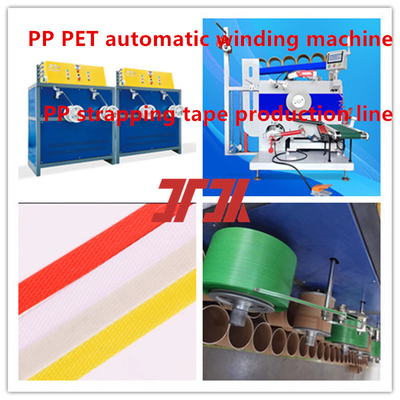

Plastic Machinery PP PET Automatic Winding Machine Automatic Winding Machine PLC Touch Screen Panel
Product Description of Automatic strapping machine:
1.The product comes from a brand that has been around for 30 years, assuring high-quality and reliability. The brand's expertise in the industry shows in the machine's design and functionality.
2.Using condition: power single-phase 220V, air pressure 4-7kgf, plug the air pipe(Φ8)in according to the marks on the equipment,connect the electronic line(2.5 m2 +).Ventilate first, then electrify(When turning off the machine in reverse order-first turn off the electricity, then turn off the air pressure).
3.After the winding is completed, the machine will stop automatically, replace the paper tube, cut off the packing belt and clip the packing head to fix the packing head, and the winding operation will be carried out automatically, and the whole process will be completed automatically.
Line speed: 200-300 m/min
| Name |
Automatic Winding Machine |
| Tape width |
5-19mm |
| Thickness |
0.6-1.2mm |
| Control mode |
servo motor |
| Pressure |
4-7kgf |
| PLC control |
YES |
| Paper tube |
Ø200*190mm |
| Max weight |
20-350kg/roll |
| power single-phase |
220V |
| Weight |
700KG |
| Overall dimension |
(L)1400mm*(W)1200mm*(H) 1850mm |
Features of Automatic strapping machine:
Automatic operation----Automatic winding, automatic tape cutting, automatic roll changing, with simple settings, the equipment can automatically complete packaging, reducing manual intervention.
Intelligent control----equipped with PLC and touch screen, easy to operate, adjustable parameters, one-button operation.
High efficiency and energy saving----fast speed, 200-300 m/min, improve efficiency.
Energy-saving design----using energy-saving motors and frequency conversion technology to reduce energy consumption.
Performance description:
A:Human-machine interface: various functions and displays in the PLC touch screen panel of the automatic winding machine (winding length, weight, start, stop, interface switching, bandwidth selection, paper core height selection, etc.)
B:The automatic winding machine replaces PP strapping tapes of different specifications and widths without replacing the transmission gears, belt grooves, etc. The back and forth axis line travel is automatically calculated by the computer, and the bandwidth spacing can be fine-tuned by the servo.
C:The automatic winding machine moves through the swing arm, and the sensor synchronously adjusts the winding speed to achieve constant tension winding.
D:Two modes of weight and meter are available, one-button control spring gas expansion disk is used, 5-19MM bandwidth arrangement is automatically calculated, and the side roller fits the guide belt to rewind, so that the finished PET belt rewinding end surface is flat, neatly arranged, uniformly spaced, and not overlapped.
Services:
After-sales service:
The automatic winding machine provides comprehensive technical support and services. Our experienced team of technicians can provide a variety of services, including:
Pre-sales:
1. Layout diagram.
2. Labor cost analysis.
After-sales service:
1. Water and electricity lines, circuit diagrams, etc. of the automatic winding machine.
2. Installation, commissioning and training of the automatic winding machine.
3. Maintenance service of the P automatic winding machine.
4. Regular maintenance and repair
4. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
- Q1: What is the brand name of the Strapping Band Winding Machine?
- A1: The brand name of the Strapping Band Winding Machine is Automatic PP packing and winding machine.
- Q2: What is the model number of the Strapping Band Winding Machine?
- A2: The model number of the Strapping Band Winding Machine is JTPP/PET.
- Q3: What is the place of origin of the Strapping Band Winding Machine?
- A3: The place of origin of the Strapping Band Winding Machine is CHINA.
- Q4: What is the purpose of the Strapping Band Winding Machine?
- A4: The Strapping Band Winding Machine is used to automatically wind PP strapping bands.
- Q5: Does the Strapping Band Winding Machine have any special features?
- A5: Yes, the Strapping Band Winding Machine can automatically count the number of winding layers, and it is equipped with a touch screen for easy operation.
