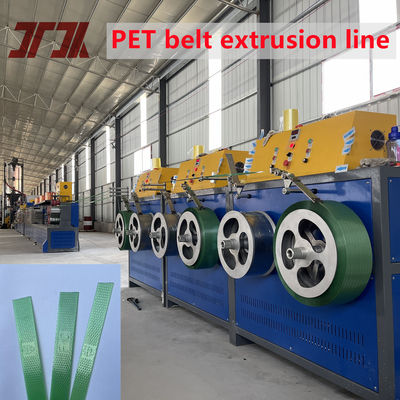

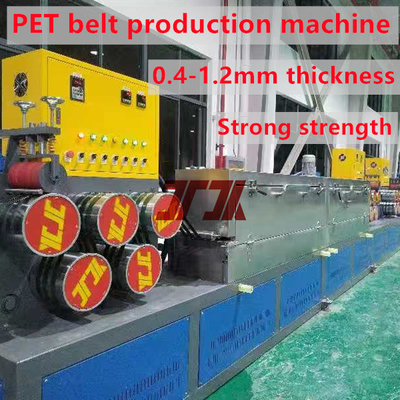

9-32mm customized PET packing belt production line with non-stop screen changer
Technical parameters of PET belt 2output production line
| Raw material |
PET granules or PET recycled material |
| Width of final product |
9-32mm |
| thickness of final product |
0.4-1.2mm |
| Max Capacity |
180-200kg/h |
| Manpower |
1-2 persons/shift |
| Machine Dimension |
55*2*8m |
| BRANDS |
| Gearbox: |
GUOMAO |
| Contactor: |
Siemens |
| Temperature controller |
Fotek |
| Inverter |
INVT |
1. Efficient PET dehumidification drying system
(1)
The system has the functions of raw material dehumidification, dynamic drying, automatic dust removal, and centralized dust collection.
(2) Don't need the crystallization of raw material, short drying time, energy saving and high efficiency.
2. Single screw extruder with automatic mixing and feeding system
(1)
Optimized screw and new slotted sleeve, high plasticizing rate, uniform melt, continuous and stable production.
(2) High performance gear box reducer, high torque, long life, low noise.
(3) Can uses 100% recycled bottle flakes.
(4) Equipped with automatic proportioning, metering and mixing system for raw materials and additives,etc.
Feature of PET Stapping making machine
1. PET strap is recognized a new environment protective strapping material to substitute for Steel Strap in the ruling international market.
2. They are not only the aggregation of the intensity and the tenacity of steel strap, but also overcome the disadvantage of the tradition packing material such as insufficient intensity, brittle and so on. At present, they have been applied in wood, steel, and so on.
3. Our company pet strap line adopt the PLC control the whole line do the automatic production. It use the melting pump and pressure sensor ensure the production stable and strap quality control;
4.The raw material you can use 100% recycled PET flakes from the waste PET bottles, or virgin material or mixed with each other
FAQ
1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2. Do you have quality certificate?
Yes we have CE, SGS etc.
3. What's the delivery time?
Around 40~50days, however, based on order.
4. What is your overseas service?
We will provide high quality overseas service ,our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment
