Product Description of PP strapping production line:

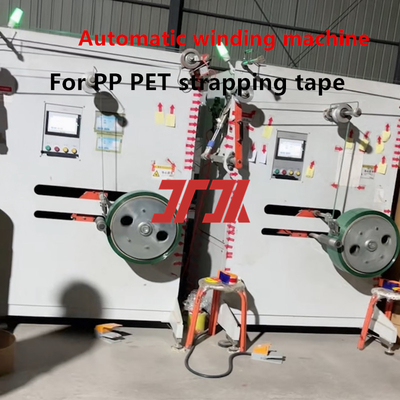

Automatic PLC controlled single station PET/PP tape winder, this PP PET winder is suitable for tapes with extrusion speeds up to 200-300 m/min. Each machine is equipped with a reel. The machine is equipped with a reinforced tension arm to control the winding tension. The inclinometer fixed on the reinforced tension arm converts the physical position signal of the tension arm into an electrical signal and sends it to the programmable logic controller (PLC).
After data processing, the PLC controls the running speed of the winding motor and drives the paper tube fixed on the winding shaft to evenly wind the tape with constant tension.

1. Mode-------The automatic winding machine is a finished winding tool for PP PET strapping tapes. It uses servo motors for wiring, automatic winding, automatic reeling, automatic tape cutting, and automatic reel changing. It can wind strapping tapes with a width of 5-19MM. The corresponding bandwidth can be selected for reeling through the PLC touch screen, and there is no need to manually change the transmission gear.
2. Servo motor------The reel uses the torque mode of the servo motor. The torque during reeling can be set through the touch screen, so that strapping tapes of different weights or widths can be reeled with appropriate torque, and the bending deformation of the strapping tape after reeling can be minimized.
3. Automatic reel changing:-------After reeling, the strapping tape that is withdrawn automatically moves to the storage conveyor. About 3 rolls of strapping tape can be placed on the conveyor, and the conveyor belt can also be lengthened according to customer needs.

                                                          PARAMETER TABLE

.



The winding process does not require manual operation, and there is no need to replace the transmission gear.

Automatic winding, automatic rewinding, automatic stop, and automatic roll change.

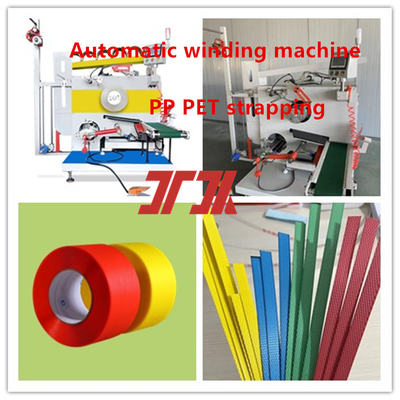

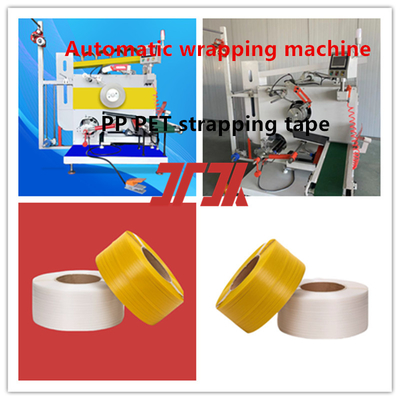

PP PET strapping tape automatic winding machine
1. Applicable products: used to pack PP and PET strapping tape into rolls.
2. Automatic debugging: winding length is set according to customer requirements
3. Control mode:servo motor control,
4. Winding mechanism: reciprocating rod type, automatic winding
5. PLC control: wire spacing, gear change, adjustment of different specifications of bandwidth, no need for manual replacement, PLC key debugging.
6. Mode: meter, weight, switchable.
