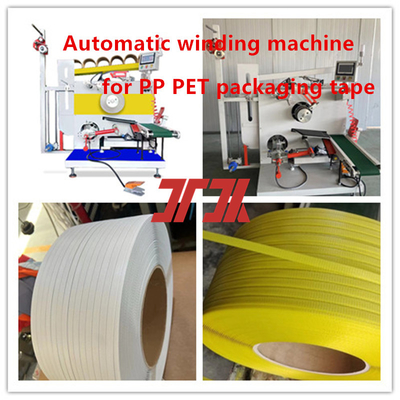

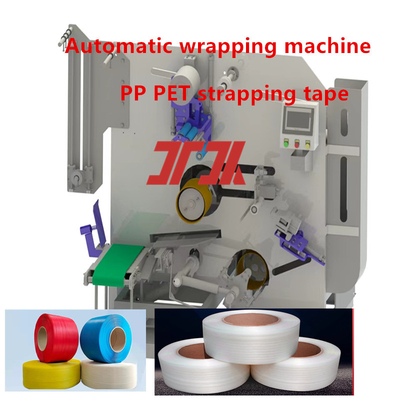

Automatic wire arranging machine PP PET strapping winding machine PP strapping winding machine for servo motor control
Product Description of PP PET packing tape automatic winding machine:
Advantages of PET PP automatic winding machine:
1. Different specifications of PP PET plastic steel belts can be selected for winding according to customer needs.
2. No need to change gears, the whole process is operated by buttons on the PLC touch screen.
3. The winding is neat and the reel is flat.
4. It can support meter & weight, two modes, which can be switched at will.
5. No manual operation, saving labor.
6. The speed can reach 220-300 meters/minute.
7. Different languages can be customized according to customer requirements, and multiple languages are supported.
8. Increase production capacity by more than 30%.
Features of PP PET packing tape automatic winding machine:
- Torque motor(Main machine) 4N.M
2. Change roller motor By air cylinder
3. Conveyor belt motor 0.4KW
4. PLC contactor (switch) Korean LS brand
5. Transducer and Approach toggle Light: Korean AUTONICS
6. Type Single station station
7. Winding Diamete of paper core 200 mm X185 mm(can Customized)
8. Surface treatment High temperature spray chromeplate
9. Machine dimension 1600MM*1500MM*1400MM(L*W*T)
10. Change roller time Around 12 seconds
11. Automatic cutting yes
12. After cutting machine automatic nailling fixed strap then rolling,make final roller orderliness.
Technical Parameters of PET packing tape automatic winding machine:
| Name |
PP PET Strapping Band Winding Machine |
|
Strap Width
|
5-19mm |
| Strap thickness |
0.6-1.2mm |
| Automatic winding |
YES |
| Application |
Packaging Industry |
| Winding method |
Automatic |
| Servo motor wiring |
YES |
| Touch screen control |
YES |
| Operation mode |
PLC Computer Touch Screen |
Applications of PET packing tape automatic winding machine:
The main functions of the automatic winder:
- The automatic winder uses a servo motor to arrange the wires, which is suitable for winding PP strapping tape with a width of 5-19mm. The corresponding bandwidth is selected through the PLC touch screen for winding and winding. The whole process does not require manual replacement of the transmission gear and belt slot.
- After the whole roll of strapping tape is wound, the machine automatically stops, automatically replaces the paper tube, automatically cuts the strapping tape, fixes the strapping tape head with a clip, and automatically changes the roll for winding. The whole process is completed automatically.
- The rewinding axis uses the torque mode control of the servo motor. The torque during winding can be set and debugged through the PLC touch screen, so that strapping tapes of different weights or widths can be wound with appropriate torque, and the bending deformation of the strapping tape after winding can be minimized.
Service:
1. Shelf life: 12 months
2. Consumable parts: spare parts are available
3. Support 24-hour online service.
4. Free system upgrade service.
5. Remote detection service.
FQA:
Q: Where is the automatic winding machine made?
A: China
Q: What is the voltage of the automatic winding machine:
A: 220V
Q: What mode is the automatic winding machine controlled by?
A: Servo motor control
Q: Can the automatic winding machine be purchased separately?
A: Yes
Q: Does the automatic winding machine require manual operation?
A: No, the entire process is controlled by PLC computerization.
