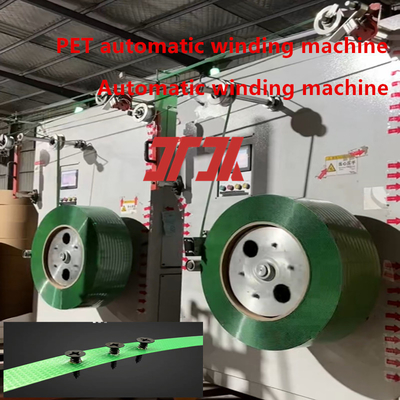

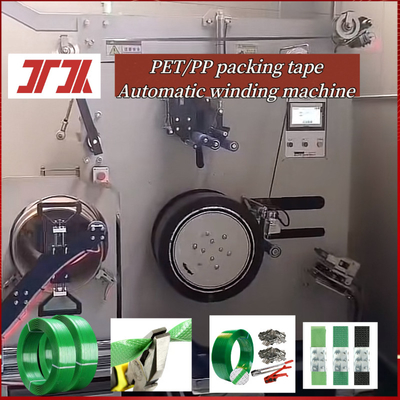

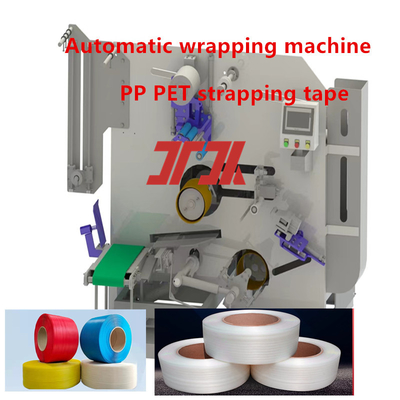

Factory production of Automatic winding machine PP PET automatic winding machine for PLC servo motor control system
Product Description of PP PET packing tape automatic winding machine:
Advantages of PET PP automatic winding machine:
The main functions of the automatic winder:
- The automatic winder uses a servo motor to arrange the wires, which is suitable for winding PP strapping tape with a width of 9-32mm. The corresponding bandwidth is selected through the PLC touch screen for winding and winding. The whole process does not require manual replacement of the transmission gear and belt slot.
- After the whole roll of strapping tape is wound, the machine automatically stops, automatically replaces the paper tube, automatically cuts the strapping tape, fixes the strapping tape head with a clip, and automatically changes the roll for winding. The whole process is completed automatically.
- The rewinding axis uses the torque mode control of the servo motor. The torque during winding can be set and debugged through the PLC touch screen, so that strapping tapes of different weights or widths can be wound with appropriate torque, and the bending deformation of the strapping tape after winding can be minimized.
Features of PP PET packing tape automatic winding machine:
- Product Name: PP PET Strapping Band Winding Machine
- Machine size: L1400*W1400*H1850mm
- Power Consumption: 1.8KW
- Name: Automatic Winding Machine
- Moment mode: YES
- Warranty: 12 Months
- Features:
- PP STRAP WINDER DUAL-SERVO MOTOR
- Automatically stop the winder
- PP STRAP WINDER DUAL-SERVO MOTOR
- PET plastic steel belt automatic winding machine
Technical Parameters of PET packing tape automatic winding machine:
| Name |
PET Strapping Band Winding Machine |
|
Strap Width
|
9-32mm |
| Strap thickness |
0.6-1.2mm |
| Automatic winding |
YES |
| Application |
Packaging Industry |
| Winding method |
Automatic |
| Servo motor wiring |
YES |
| Touch screen control |
YES |
| Operation mode |
PLC Computer Touch Screen |
Applications of PET packing tape automatic winding machine:
Service:
1. Shelf life: 12 months
2. Consumable parts: spare parts are available
3. Support 24-hour online service.
4. Free system upgrade service.
5. Remote detection service.
FQA:
Q: Where is the automatic winding machine made?
A: China
Q: What is the voltage of the automatic winding machine:
A: 220V
Q: What mode is the automatic winding machine controlled by?
A: Servo motor control
Q: Can the automatic winding machine be purchased separately?
A: Yes
Q: Does the automatic winding machine require manual operation?
A: No, the entire process is controlled by PLC computerization.
