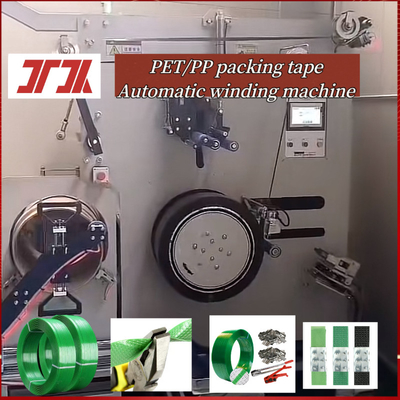

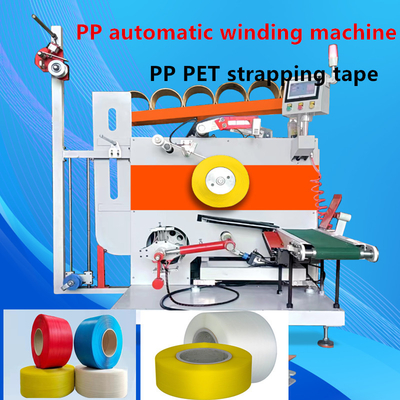

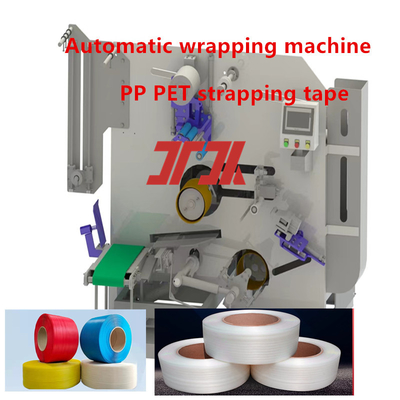

High-end intelligent PP PET automatic wrapping machine Automatic wrapping machine for servo motor control
Product Description of PP PET packing tape automatic winding machine:
The main functions of the automatic winder:
1.The automatic winder uses a servo motor to arrange the wires, which is suitable for winding PP strapping tape with a width of 5-19mm. The corresponding bandwidth is selected through the PLC touch screen for winding and winding. The whole process does not require manual replacement of the transmission gear and belt slot.
2.After the whole roll of strapping tape is wound, the machine automatically stops, automatically replaces the paper tube, automatically cuts the strapping tape, fixes the strapping tape head with a clip, and automatically changes the roll for winding. The whole process is completed automatically.
3.The rewinding axis uses the torque mode control of the servo motor. The torque during winding can be set and debugged through the PLC touch screen, so that strapping tapes of different weights or widths can be wound with appropriate torque, and the bending deformation of the strapping tape after winding can be minimized.
Features of PP PET packing tape automatic winding machine:
- Product Name: PP PET Strapping Band Winding Machine
- Machine size: L1400*W1400*H1850mm
- Power Consumption: 1.8KW
- Name: Automatic Winding Machine
- Moment mode: YES
- Warranty: 12 Months
- Features:
- PP STRAP WINDER DUAL-SERVO MOTOR
- Automatically stop the winder
- PP STRAP WINDER DUAL-SERVO MOTOR
- PET plastic steel belt automatic winding machine
Technical Parameters of PET packing tape automatic winding machine:
| Name |
PET Strapping Band Winding Machine |
|
Strap Width
|
5-19mm |
| Strap thickness |
0.6-1.2mm |
| Automatic winding |
YES |
| Application |
Packaging Industry |
| Winding method |
Automatic |
| Servo motor wiring |
YES |
| Touch screen control |
YES |
| Operation mode |
PLC Computer Touch Screen |
Applications of PET packing tape automatic winding machine:
Touch screen: operation and display of various functions in the touch screen panel (winding length, weight, start, stop, interface switch, bandwidth selection, paper core height selection, etc.)
Weight measurement, meter measurement,One-click button spring air expansion reel,5-19mm/ 9-32MM bandwidth arrangement automatic calculation, side roller fitting guide belt winding, winding end face flat, uniform spacing.
Service:
1. Shelf life: 12 months
2. Consumable parts: spare parts are available
3. Support 24-hour online service.
4. Free system upgrade service.
5. Remote detection service.
Packing and Shipping:
1.This PP automatic winding machine will pass strict inspection before leaving the factory, and field winding test.
2. This PP automatic winding machine will be packaged with PE soft film before leaving the factory, and then put into the wooden box for fixed packaging to ensure safe delivery.
3. This PET automatic winding machine will be delivered safely by sea transportation.
