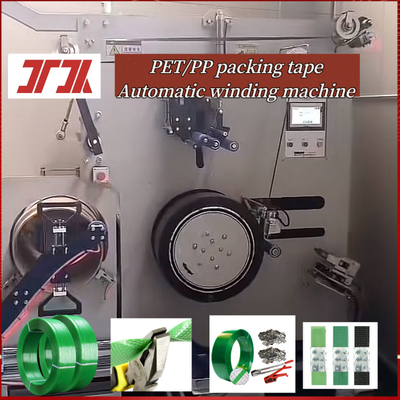

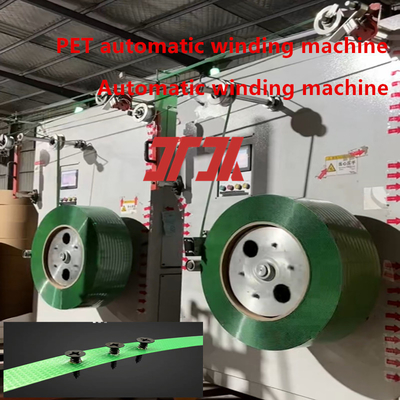

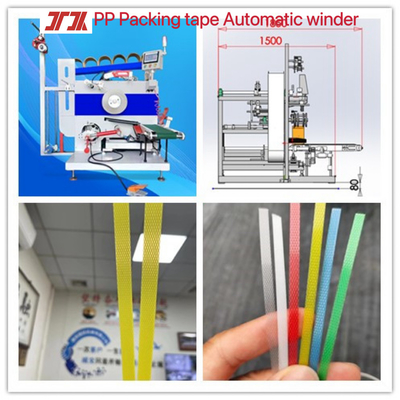

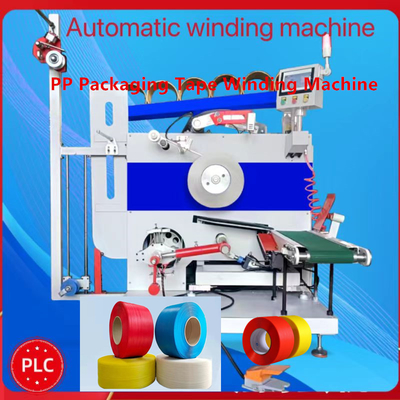

Customized Plastic Winding Machine PET PP Automatic Winding Machine for PP PET Packaging Tape
Product Description of PP PET packing tape automatic winding machine:
Advantages of PET PP automatic winding machine:
1. Different specifications of PET plastic steel belts can be selected for winding according to customer needs.
2. No need to change gears, the whole process is operated by buttons on the PLC touch screen.
3. The winding is neat and the reel is flat.
4. It can support meter & weight, two modes, which can be switched at will.
5. No manual operation, saving labor.
6. The speed can reach 220-300 meters/minute.
7. Different languages can be customized according to customer requirements, and multiple languages are supported.
8. Increase production capacity by more than 30%.
Features of PP PET packing tape automatic winding machine:
- Product Name: PP PET Strapping Band Winding Machine
- Machine size: L1400*W1400*H1850mm
- Power Consumption: 1.8KW
- Name: Automatic Winding Machine
- Moment mode: YES
- Warranty: 12 Months
- Features:
- PP STRAP WINDER DUAL-SERVO MOTOR
- Automatically stop the winder
- PP STRAP WINDER DUAL-SERVO MOTOR
- PET plastic steel belt automatic winding machine
Technical Parameters of PET packing tape automatic winding machine:
| Name |
PET Strapping Band Winding Machine |
|
Strap Width
|
9-32mm |
| Strap thickness |
0.6-1.2mm |
| Automatic winding |
YES |
| Application |
Packaging Industry |
| Winding method |
Automatic |
| Servo motor wiring |
YES |
| Touch screen control |
YES |
| Operation mode |
PLC Computer Touch Screen |
Applications of PET packing tape automatic winding machine:
Applications:
Touch screen: operation and display of various functions in the touch screen panel (winding length, weight, start, stop, interface switch, bandwidth selection, paper core height selection, etc.)
Gear:Strap width replacement does not require gear replacement, and the round-trip stroke is automatically calculated. Bandwidth spacing can be arbitrarily set through the touch screen.
Adjust the tension:The winding speed is synchronized by the displacement sensor of the swing arm to achieve constant tension winding.
Winding smoothness:Weight measurement, meter measurement,One-click button spring air expansion reel, 9-32MM bandwidth arrangement automatic calculation, side roller fitting guide belt winding, winding end face flat, uniform spacing.
Packing and Shipping:
1.This PP automatic winding machine will pass strict inspection before leaving the factory, and field winding test.
2. This PP automatic winding machine will be packaged with PE soft film before leaving the factory, and then put into the wooden box for fixed packaging to ensure safe delivery.
3. This PET automatic winding machine will be delivered safely by sea transportation.
