Plastic Machinery PP PET Automatic Winding Machine Automatic Winding Machine For ISO Certification

Large Image : Plastic Machinery PP PET Automatic Winding Machine Automatic Winding Machine For ISO Certification

Product Details:

Place of Origin:	CHINA
Brand Name:	JT
Certification:	ISO CE SGS
Model Number:	JTPP/PET

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	PE film or paper wrap
Delivery Time:	30~55 working days
Supply Ability:	10000000sets

Contact Now

Plastic Machinery PP PET Automatic Winding Machine Automatic Winding Machine For ISO Certification

Description

Name:	PET Packing Tape Automatic Winding Machine	Band Width:	9-32mm
Paper Tube:	Ø406*150mm	Power:	220V/380V/440V
Package Weight:	750kg	Automatic Wrapping Machine:	YES
Highlight:	ISO Certification Automatic Winding Machine , Plastic Machinery Automatic Winding Machine , PP PET Automatic Winding Machine

Plastic Machinery PP PET Automatic Winding Machine Automatic Winding Machine for ISO Certification

Product Description of PP PET packing tape automatic winding machine:

The automatic winding machine uses the servo motor to arrange the wires, and the corresponding bandwidth is selected through the touch screen for winding. There is no need to manually change the transmission gear.
After winding, the machine automatically stops, replaces the paper tube, cuts the strapping tape, and fixes the strapping tape head with a clip, and automatically performs the winding operation. The whole process is completed automatically without manual operation.

PLC control mode, meter counting, weight counting, two options.

Features of PP PET packing tape automatic winding machine:

Product Name: PP PET Strapping Band Winding Machine
Machine size: L1400*W1400*H1850mm
Power Consumption: 1.8KW
Name: Automatic Winding Machine
Moment mode: YES
Warranty: 12 Months
- PP STRAP WINDER DUAL-SERVO MOTOR
- Automatically stop the winder
- PP STRAP WINDER DUAL-SERVO MOTOR
- PET plastic steel belt automatic winding machine

Technical Parameters of PET packing tape automatic winding machine:

Name	PET Strapping Band Winding Machine
Strap Width	9-32mm
Strap thickness	0.6-1.2mm
Automatic winding	YES
Application	Packaging Industry
Winding method	Automatic
Servo motor wiring	YES
Touch screen control	YES
Operation mode	PLC Computer Touch Screen

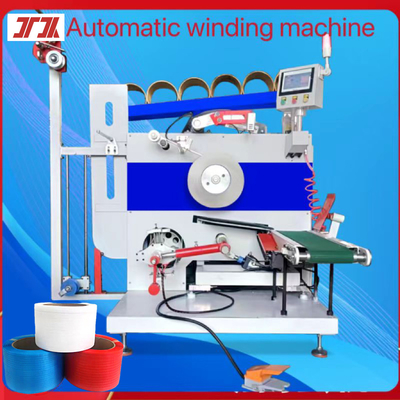

Plastic Machinery PP PET Automatic Winding Machine Automatic Winding Machine For ISO Certification 1

Applications of PET packing tape automatic winding machine:

Touch screen: operation and display of various functions in the touch screen panel (winding length, weight, start, stop, interface switch, bandwidth selection, paper core height selection, etc.)

Weight measurement, meter measurement,One-click button spring air expansion reel, 9-32MM bandwidth arrangement automatic calculation, side roller fitting guide belt winding, winding end face flat, uniform spacing.

High degree of automation, wide selection of people, reduced labor and manual operations.

FQA:
Q: Where is the automatic winding machine made?
A: China
Q: What is the voltage of the automatic winding machine:
A: 220V
Q: What mode is the automatic winding machine controlled by?
A: Servo motor control
Q: Can the automatic winding machine be purchased separately?
A: Yes
Q: Does the automatic winding machine require manual operation?
A: No, the entire process is controlled by PLC computerization.
