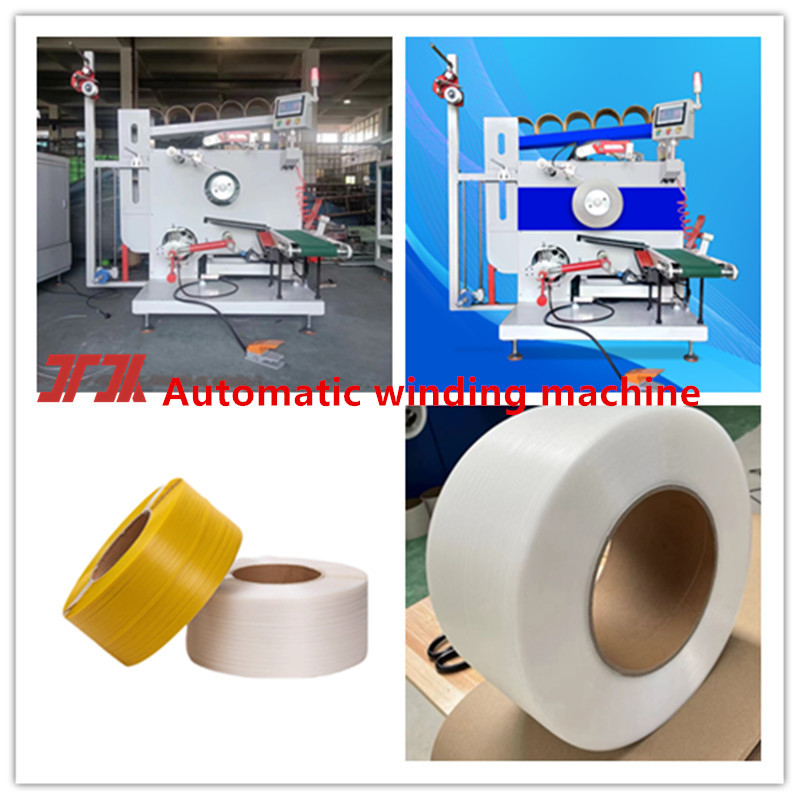

Packaging Machinery PP PET Automatic Winding Machine Servo Winding Machine 5-19mm Width

Packaging machinery PP PET automatic winding machine Servo winding machine 5-19mm width


1.Using condition: power single-phase 220V, air pressure 4-7kgf, plug the air pipe(Φ8)in according to the marks on the equipment,connect the electronic line(2.5 m2 +).Ventilate first, then electrify(When turning off the machine in reverse order-first turn off the electricity, then turn off the air pressure).

2.Paper core: ø 200mm* (180MM,190MM) Spindle disc separation type (other size discs simplify the replacement possibiliy)
3.Dimensions :(about) length 1200MM* width 1200MM* height 1850MM

Specification Of PP Strapping machine

Advantage Of Full automatic strap winder

A. Man-machine interface: operation and display of various functions in the touch screen panel (winding length, weight, start, stop, interface switching, bandwidth selection, paper core height selection, etc.)
B, Strap band width replacement no need gears change, back and forth line travel automatically calculated, bandwidth spacing can be fine-tuned by servo.
C, Constant tension winding is realized by synchronizing the winding speed with the displacement sensor of the swing arm.
D, Metering mode selection in weight and meter 2, the use of one-button spring air tension plate, 9 - 32mm bandwidth arrangement automatic calculation, side roller fitting type belt winding, winding end face smooth, even spacing.

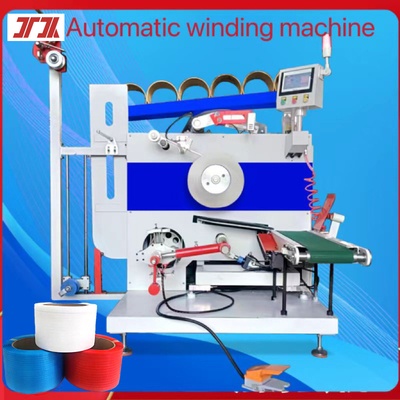

PP STRAP WINDER DUAL-SERVO MOTOR
Automatically stop the winder

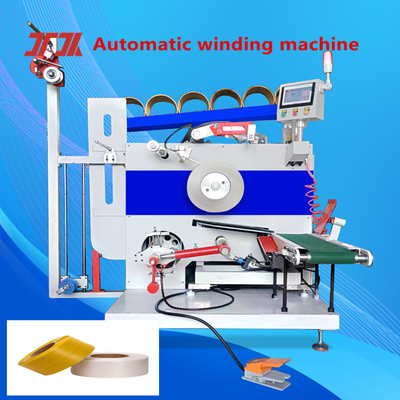

PP STRAP WINDER DUAL-SERVO MOTOR


FAQ :

Q: Where is the automatic winding machine made?

A: China

Q: What is the voltage of the automatic winding machine:

A: 220V

Q: What mode is the automatic winding machine controlled by?

A: Servo motor control

Q: Can the automatic winding machine be purchased separately?

A: Yes

Q: Does the automatic winding machine require manual operation?

A: No, the entire process is controlled by PLC computerization.
