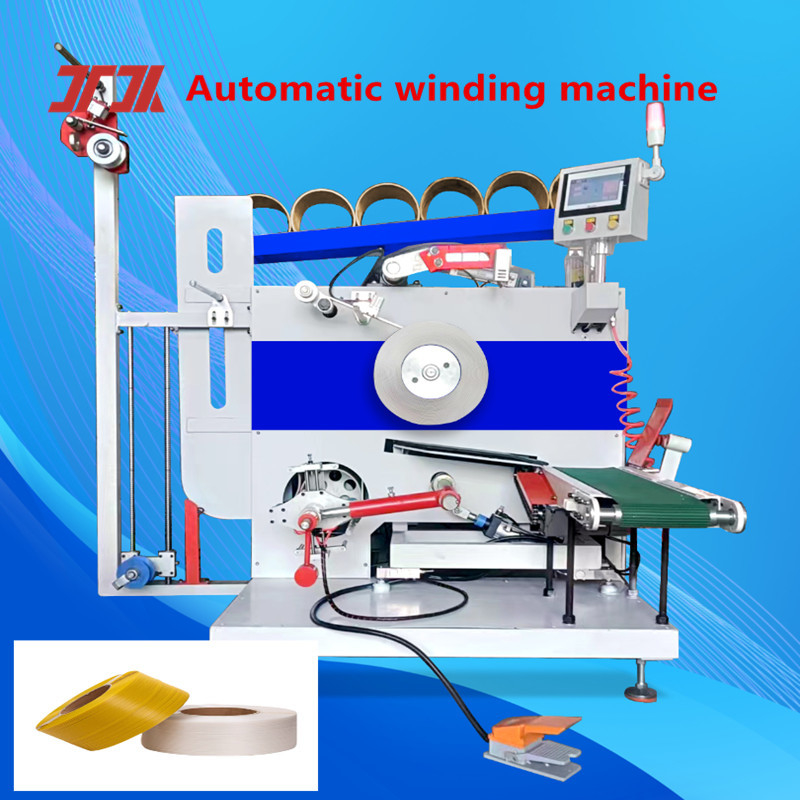

Plastic Extruder PP Strapping Winding Machine Automatic Winding Machine PLC Control System

Plastic extruder PP strapping winding machine Automatic winding machine PLC control system

Product Description of  PP packing tape automatic winding machine:

The automatic winding machine is a winding machine suitable for the PP PET strapping industry, with PLC control to reduce manual operation.
The power supply is single-phase 220V, the air pressure is 4--7Kgf, connect the air pipe (Φ8) according to the mark on the equipment, connect the power cord (more than 2.5 square), ventilate first, then turn on the power (when turning off the machine, follow the reverse order, turn off the power first, then turn off the air pressure)
Automatic winding machine can automatically wind, automatically wind, automatically cut tape.

1. **Automatic Tension Control**: Many machines are equipped with automatic tension control systems to ensure consistent winding tension for better quality and uniformity.

2. **Speed Control**: Adjustable speed settings allow operators to control the winding speed based on the type of material being wound and the desired output.

3. **Safety Features**: These machines often come with safety features such as emergency stop buttons, protective guards, and sensors to prevent accidents and ensure safe operation.


Features of PP packing tape automatic winding machine:

• Product Name: PP Strapping Band Winding Machine
• Machine size: L1400*W1400*H1850mm
• Power Consumption: 1.8KW
• Name: Automatic Winding Machine
• Moment mode: YES
• Warranty: 12 Months
• Features:
  • PP STRAP WINDER DUAL-SERVO MOTOR
  • Automatically stop the winder
  • PP STRAP WINDER DUAL-SERVO MOTOR

Technical Parameters of PP  packing tape automatic winding machine:

Applications of PP packing tape automatic winding machine:

Touch screen: operation and display of various functions in the touch screen panel (winding length, weight, start, stop, interface switch, bandwidth selection, paper core height selection, etc.)

Strap width replacement does not require gear replacement, and the round-trip stroke is automatically calculated. Bandwidth spacing can be arbitrarily set through the touch screen.

The winding speed is synchronized by the displacement sensor of the swing arm to achieve constant tension winding.

Weight measurement, meter measurement,One-click button spring air expansion reel, 5-19MM bandwidth arrangement automatic calculation, side roller fitting guide belt winding, winding end face flat, uniform spacing.

Support and Services:

1. Shelf life: 12 months
2. Consumable parts: spare parts are available
3. Support 24-hour online service.
4. Free system upgrade service.
5. Remote detection service.

Product Packaging:

• 1 Strapping Band Winding Machine
• 1 User Manual
• 1 Power Cord
