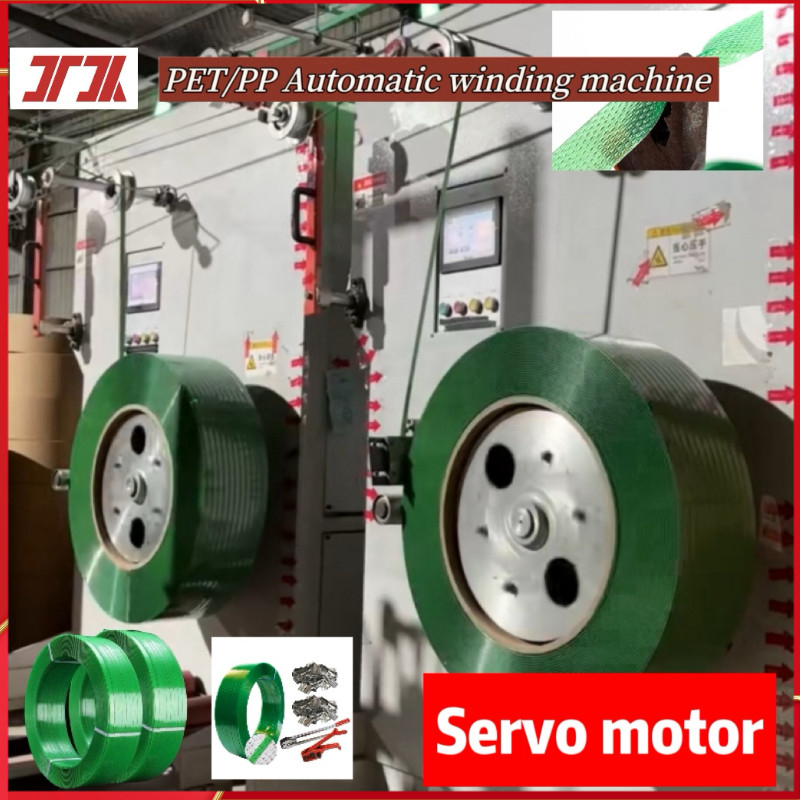

Plastic Machinery PP PET Automatic Winding Machine Automatic Winding Machine Servo Winding Machine

Plastic machinery PP PET automatic winding machine automatic winding machine servo winding machine


1.Using condition: power single-phase 220V, air pressure 4-7kgf, plug the air pipe(Φ8)in according to the marks on the equipment,connect the electronic line(2.5 m2 +).Ventilate first, then electrify(When turning off the machine in reverse order-first turn off the electricity, then turn off the air pressure).

2.Paper core: ø 406mm* (150MM,190MM) Spindle disc separation type (other size discs simplify the replacement possibiliy)
3.Dimensions :(about) length 1200MM* width 1200MM* height 1850MM

Specification Of PET Strapping machine


Advantage Of Full automatic strap winder

A. Man-machine interface: operation and display of various functions in the touch screen panel (winding length, weight, start, stop, interface switching, bandwidth selection, paper core height selection, etc.)
B, Strap band width replacement no need gears change, back and forth line travel automatically calculated, bandwidth spacing can be fine-tuned by servo.
C, Constant tension winding is realized by synchronizing the winding speed with the displacement sensor of the swing arm.
D, Metering mode selection in weight and meter 2, the use of one-button spring air tension plate, 9 - 32mm bandwidth arrangement automatic calculation, side roller fitting type belt winding, winding end face smooth, even spacing.
PP STRAP WINDER DUAL-SERVO MOTOR
Automatically stop the winder
PP STRAP WINDER DUAL-SERVO MOTOR


FAQ About Plastic Strapping Band Making Machine

1. For PP(polypropylene) strapping band extrusion line
*What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm;
* What about the installation power of the PP strap machine? 135kw/155kw/195kw/439kw;
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm;
* What about the installation power of the PET strap machine? 215kw/285kw/352kw/900kw;
