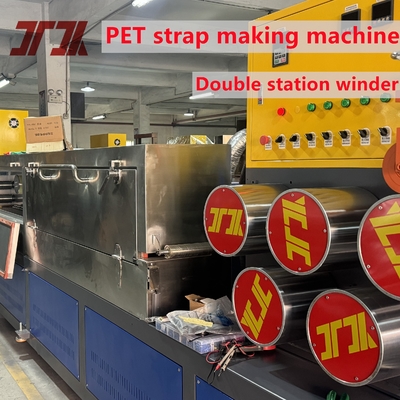

Double Station Winder 100% Recycled Pet Production Machine With Good Flexible Straps
Technical parameters of PET belt 2output production line
| Item |
Product name |
Q'ty |
| 1 |
Materials |
PET raw material or 100% PET bottle flakes recycled |
| 2 |
Product |
PET output 2straps making machine |
| 3 |
Capacity |
230-250kg/h |
| 4 |
Total install power |
200kw, (actual power consumption is 50-55%) |
| 5 |
Strap width |
9 mm-32 mm |
| 6 |
Thickness |
0.6 mm-1.2 mm |
| 7 |
Manpower |
2person/shift |
| 8 |
Workshop required |
L (60m) ×W (3m) ×H (8m) |
| 9 |
Power source |
380V, 50Hz, 3Phase (according to customer requirement) |
| 10 |
Electric components |
Schneider |
| 11 |
Inverter |
INVT |
| 12 |
Switches |
Taiwan Fotek |
| 13 |
Motor power |
Gugao |
| 14 |
Gearbox |
GUOMAO |
The features of PET packing belt production line
Diversity of raw materials: The raw materials used in this production line include PE, PP, PET, etc. these raw materials have good plasticity and processability, suitable for large-scale production.

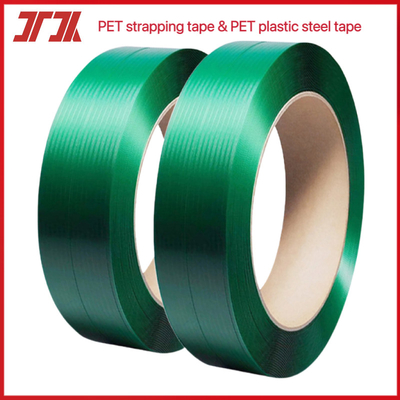

Environmental protection: The PET polyester strapping belt produced by PET packing belt production line is a kind of recyclable environmental protection material, has good weather resistance, is stable in the temperature range of -50ºC to 100ºC, is suitable for various environmental conditions.
Efficient production: we have 2/3/4/6/8 strips at the same time, available for different production needs of customers to make a choice, and the production capacity is also very high, the output of 2 strips per hour can reach 220-250kg/H.
Products Description of PET strap extrusion line

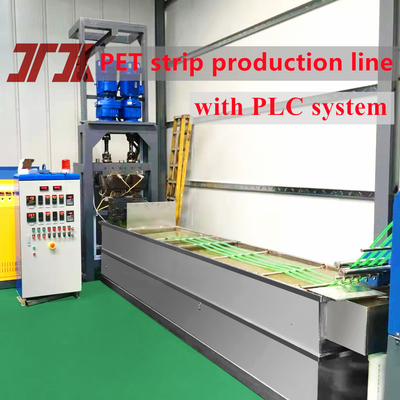

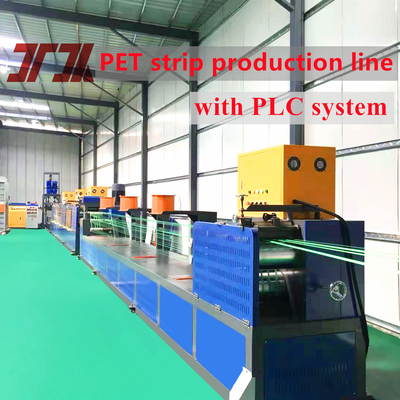

The machine is mainly used to make pet strap, pet packing strap. Adopt the plc control the whole line do the auotmatic production it use the melting pump and pressure sensor ensure the production stable and strap quality control.
The raw material you can use is 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each PP strap production line is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if raw materials, it will be better.
Product Packaging
The PET Strap Extrusion Line will be securely packed in wooden cases to ensure safe transportation.
Each component of the machine will be carefully wrapped in plastic and foam to prevent damage during shipping.
Shipping:
The PET Strap Extrusion Line will be shipped via sea or air, depending on the customer's preference and location.
We will work with reputable shipping companies to ensure timely delivery and provide customers with tracking information.
