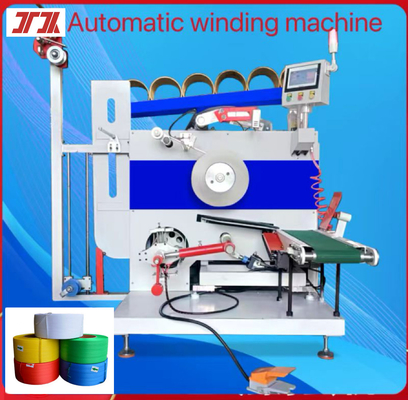

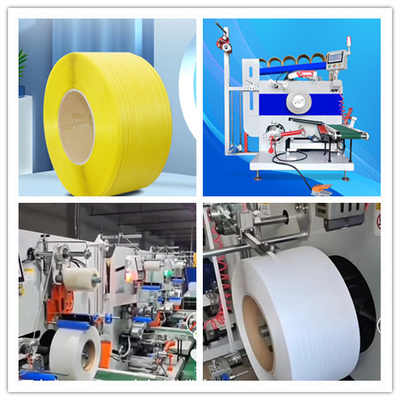

Full Automatic Strapping Band Winding Machine with Touch Screen Control,Servo winder, automatic rewinding

Product Description of Automatic winding machine:

1. The use of servo motor wiring, 5-19mm width of the packaging belt winding, through the touch screen to select the appropriate bandwidth for winding, no need to manually replace the transmission gear.
2. Reel rewinding uses the torque mode of the servo motor, and the torque during reel rewinding can be set by the touch screen, so that the packaging tape with different weight width can be rewound with appropriate torque, as far as possible to reduce the bending deformation of the packaging tape after winding, so that the packaging tape can maintain a good straightness.

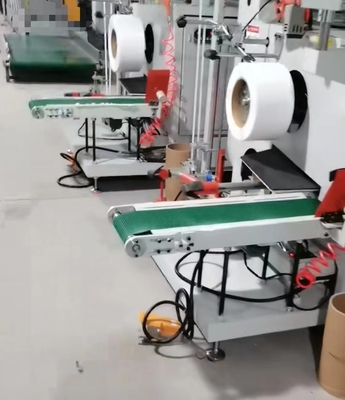

3. The packing belt that exits after winding is completed is automatically moved to the storage belt conveyor, and about 3 rolls of finished packing belt can be loaded on the conveyor.
4. The machine is designed to operate at a high speed of 220-350m/min, making it suitable for high-volume production of strapping bands.

Features of Automatic winding machine:

• Product Name: PP Strapping Band Winding Machine
• Paper tube: ¢200mm * 180mm
• Application: Packaging Industry
• 30 years old brand: YES
• Power Consumption: 1.8KW
• Strap Width:5-19mm
• Strap Thickness: 0.4-1.2mm
• Servo motor line automatic winding machine
• PP STRAP WINDER DUAL-SERVO MOTOR
• PET strap full-automatic winder

Technical Parameters of Automatic winding machine:

PP STRAP WINDER DUAL-SERVO MOTOR, PP strap full-automatic winder, Servo motor line automatic winding machine

Applications:

1.PLC touch screen operating system.
2. Servo motor control system.
3. Automatic winding, automatic winding, automatic rewinding.

Customization:

Our Automatic PP/PET packing and winding machine (model JTPP/PET) is made in China and provides reliable and efficient strapping band winding. With strap widths ranging from 5-18mm, this machine is perfect for a variety of applications.

The dual-servo motor design ensures smooth and accurate operation, while the no need to change gears feature makes it easy to use. Additionally, the machine comes with an auto wrap PE film feature and adjustable tightness for added convenience.

With a power consumption of only 1.8KW, this PP strap full-automatic winder or PET strap full-automatic winder is a great choice for businesses looking to streamline their packaging processes.

Packing and Shipping:

Product Packaging:

• The strapping band winding machine will be packed in a sturdy cardboard box.
• The box will be lined with foam for extra protection during shipping.
• All necessary accessories and parts will be included in the package.
