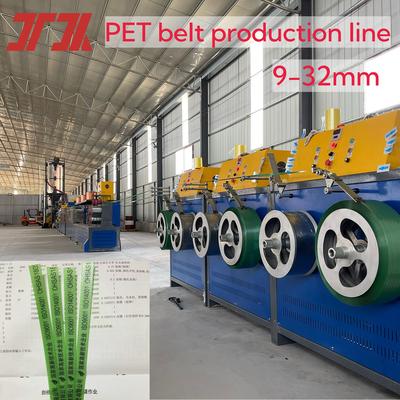

PET Strap Extrusion Line with 5000L Pre Drying Tower and 0ST-2000 Honeycomb Rotary Dehumidification Dryer
Product Description of PET strap making machine
Our PET Strap Production Line is equipped with advanced technology and features that make it the ideal choice for manufacturers looking to produce high-quality PET straps. It is a fully automated system, with a PLC Computer Touch Screen that allows for easy operation and monitoring of the production process. The system is also equipped with a 100CC Metering Pump, ensuring accurate and consistent material delivery.
Main Motor
The main motor of our PET Strap Production Line is powered by a 37KW Siemens motor, providing strong and reliable performance for continuous production. This ensures that the production line can run smoothly and efficiently, with minimal downtime.
Honeycomb Rotary Dehumidification Dryer
Our PET Strap Production Line is also equipped with a 0ST-2000 Honeycomb Rotary Dehumidification Dryer, which effectively removes moisture from the raw materials, ensuring the production of high-quality straps. This feature also helps to prolong the lifespan of the production line and reduce maintenance costs.
Strap Width
The PET Strap Production Line has a strap width range of 9-32mm, making it suitable for producing a wide range of strap sizes to meet the diverse needs of different industries.
Key Features of PET strap making machine:
- Highly automated production process
- PLC Computer Touch Screen for easy operation and monitoring
- 100CC Metering Pump for accurate and consistent material delivery
- 37KW Siemens main motor for strong and reliable performance
- 0ST-2000 Honeycomb Rotary Dehumidification Dryer for moisture removal
- Strap width range of 9-32mm
Features of PET strap extrusion equipment:
- PET Strap Extrusion Equipment
- PET Strap Extrusion Machinery
- PET Strap Extrusion Equipment Features
- Product Name: PET Strap Extrusion Line
- Number of tapes: 4
- Raw material: PET Bottle Flake Material, 100% Broken Material
- Double position winder: 4sets
- Equipment footprint:: 60*2.0*7.0M
- Reducer specification: 280#
Technical Parameters of PET strip production line:
| Product Name |
PET Strap Extrusion Line |
| Screw Material |
38CrMoALA |
| Raw Material |
PET Bottle Flake Material, 100% Broken Material |
| Simple Operation |
YES |
| Automation |
PLC Computer Touch Screen |
| Power Supply |
380V/50Hz/220V/60HZ Three-phase |
| Paper Core Specification |
￠ 406*150mm |
| Host Inverter |
75kw (INVT) |
| Strap Tension |
>10000kg |
| Dryer Capacity |
3000L |
| Reducer Specification |
280# |
| Keywords |
PET Strap Production Line, PET Strap Making Machine |
Applications of PET strp making machine
Our PET Strap Extrusion Line adopts advanced extrusion technology and is equipped with high-quality components to ensure efficient and stable production. With a capacity of 400-4500KG/H, our line can meet the demands of various production needs. The double position winder, with 4 sets, allows for continuous production and reduces downtime for changing rolls.
In addition, our PET Strap Extrusion Line also includes a pre-drying tower with a capacity of 5000L to ensure that the raw materials are properly dried before extrusion, resulting in better quality PET straps. The oil removal and dust removal filter helps to remove impurities from the raw materials, ensuring a clean and smooth production process.
Packing and Shipping:
Packaging and Shipping
The PET Strap Extrusion Line is packaged in a sturdy wooden case to ensure safe transportation. The components are carefully arranged and secured with foam and bubble wrap to prevent any damage during shipping.
Customers can choose their preferred shipping method, including air, sea, or land transportation. The delivery time will vary depending on the shipping method and destination.
Once the product arrives at the designated location, our team will provide assistance with unpacking and installation if needed.
FAQ:
- Q: What is the brand name of this PET Strap Extrusion Line?
A: The brand name of this PET Strap Extrusion Line is JIATUO CHINA.
- Q: What is the model number of this PET Strap Extrusion Line?
A: The model number of this PET Strap Extrusion Line is JTPET.
- Q: Where is this PET Strap Extrusion Line manufactured?
A: This PET Strap Extrusion Line is manufactured in CHINA.
- Q: Does this PET Strap Extrusion Line have any certifications?
A: Yes, this PET Strap Extrusion Line is certified with CE, SGS, and ISO.
- Q: What is the minimum order quantity for this PET Strap Extrusion Line?
A: The minimum order quantity for this PET Strap Extrusion Line is 1 SET.
- Q: How long is the delivery time for this PET Strap Extrusion Line?
A: The delivery time for this PET Strap Extrusion Line is 50-60 days.
