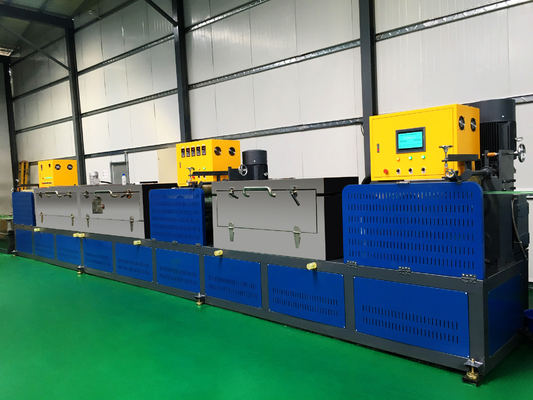

PET Plastic Strap Making Machine PET Strapping Extrusion Production Line
QUCIK DETAIL OF PET STRAPPING MAKING MACHINE
Name: PET 1 to 6 strapping production line
Applicable raw materials: PET raw material or 100% PET bottle flakes recycled
Number of screws: 1 Screw
Number of extruded belts: 1, 2, 4, 6
Width range: 9-32mm
Thickness range: 0.6-12mm
Production capacity: 200kg/h 250kg/h 350kg/h
Installation size: 35m*(3~6)m*(4~6)m or 45m*(3~6)m*(4~6)m
SPECIFICATION OF PET STRAP PRODUCTION LINE
| NO. |
Item |
Specification |
| 1 |
Power |
According to customer's factory voltage |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Capacity |
PETJT90:200kg/h
PETJT100:250kg/h
PETJT125:350kg/h
|
| 4 |
Product size |
Width:9-32mm
Thickness:0.6-12mm
|
| 6 |
Mid-height of extruder |
7000mm |
| 7 |
Installation power |
PETJT90:200KW
PETJT100:250KW
PETJT125:300KW
|
| 8 |
Humidity |
<85% |
| 9 |
Temperature |
0-40 degree |
| 10 |
Cooling tower capacity |
30T/H or 50T/H |
| 11 |
Installation Dimensions |
PETJT90:45*2.0*7.0M
PETJT100:45*2.0*7.0M
PETJT125:60*3.0*8.0M
|
| 12 |
Product color |
Green/Black/Pink/Yellow |
| 13 |
Factory dimension |
35m*(3~6)m*(4~6)m
45m*(3~6)m*(4~6)m
If your factory not big enough,please contact with us,our engineer can according to your size to design
|
Advantages of PET strapping extrusion production line
1. Using the recycling bottle slices as raw materials by making them melt directly, which reduces the course of raw material-making
2. With the multi-purpose machine, it can produce PET straps in different specifications directly and doesn't need to change the mould head
3. The products has the same transparency as made from new polyester slices, but the tensile strength and shock resistance are stronger
4. Low energy consumption, high production capability
5. Easy to operate, saves manpower
Features of PET packing strap production line
1. Better tensile strength: the PET strap production line has the tensile strength of the steel belt, and the ductility is good, and the anti-impact performance is better. It is not easy to break, and it can ensure the safety of product transportation.
2. Strong temperature resistance: the experiment proved that the melting point of PET packing belt at about 260 ℃, can be used under the environment of 120 ℃ for a long time not to distort,it has a good stability.
3. Good economic benefit: the density of PET packaging belt is 1.30 ~ 1.38 g/cm3, which is only 1/6 of the steel belt density (7.8 g/cm3), which is equivalent to the length of the 6-ton steel belt, and the price of the same unit length is relatively low.
4. Environmentally friendly: the steel belt will rust due to exposure to the air, and the rust is highly permeable to the packaging. PET packing tape is beautiful and not rusted, but avoid unnecessary worry. It can also be recycled.
5. Small extension: Although PET strap is one kind of plastics, its extension of change is very small, its elongation is only 1/ 6 of polypropylene, it can maintain tension force, after the packing make the expansion no longer change.
6. Good flexibility and safe operation: the PET packing strip has no sharp edge with steel belt, it will not scratch the package, and it will not hurt the hand. You don’t need a special tool when you cut it, even if it’s tight, it doesn’t hurt when you cut it.

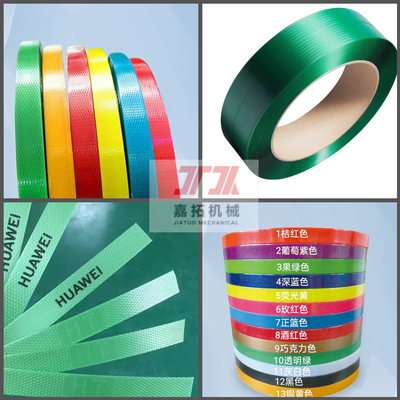

7.High quality packaging ideal products: PET packaging with all kinds of bright colors, shiny, high quality, the most ideal packaging products of high-end packaging
