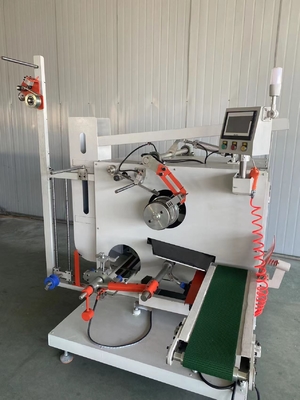

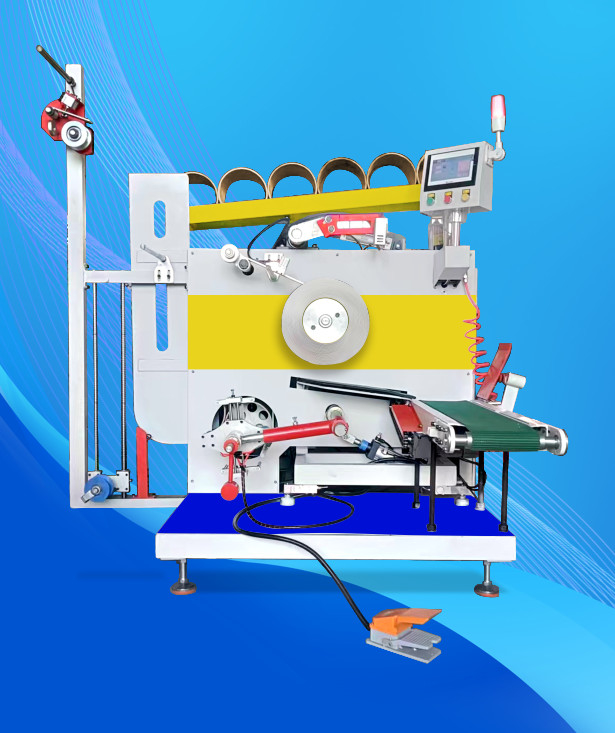

Dual Servo Motor PP Strap Winder Winding Machine For Strapping Band

Winding Machine for Strapping Band PP STRAP WINDER DUAL-SERVO MOTOR

Product Description of Packing tape automatic winder:

1.Using condition: power single-phase 220V, air pressure 4-7kgf, plug the air pipe(Φ8)in according to the marks on the equipment,connect the electronic line(2.5 m2 +).Ventilate first, then electrify(When turning off the machine in reverse order-first turn off the electricity, then turn off the air pressure).

2.Main functions: use the servo motor to lay the cable, and wind up the PP STRAP with the width of 5-19mm. Select the corresponding bandwidth through the touch screen to wind up, and there is no need to manually replace the transmission gear.

3.After the winding is completed, the machine will stop automatically, replace the paper tube, cut off the PP STRAP and clamp the pieces to fix the STRAP head, and the winding operation will be carried out automatically, and the whole process will be completed automatically.

4.The winding shaft uses the torque mode of servo motor, and the torque during winding can be set through the touch screen, so that the PP STRAP with different gram weight or width can be wound with appropriate torque, so be best to minimize the bending deformation of the PP STRAP after winding.

5.After the winding is completed, the exiting packing belt will automatically move to the storage belt conveyor. About 3 rolls can be placed on the conveyor, and it can also be lengthened according to the needs of customers.

6.Paper tube: 203mm * 165~195mm paper tube, 10mm thick, recycling old paper tube is not available.

Features of Packing tape automatic winder

• Product Name: Strapping Band Winding Machine
• Warranty: 12 Months
• Strap Thickness: 0.4-1.2mm
• Tension Range: 80-200kg
• Power: 220V/380V/440V
• Speed: 220m/min
• air pressure:5-7Kgf
• stop automatically:YES
• replace the paper tube:YES
• Special features: Servo motor line automatic winding machine, Automatic winding machine, PET automatic winder

Technical Parameters of Packing tape automatic winder

Applications of Packing tape automatic winder

• Brand Name: Packing tape winder
• Model Number: JTPP/PET
• Place of Origin: CHINA
• Application: Packaging Industry
• Power Consumption: 1.8KW
• Warranty: 12 Months
• PLC, touch screen: Xinjie
• Paper tube: 203mm * 165~195mm

The strapping band winding machine is an ideal solution for the packaging industry. It is designed to automatically wind PET straps and PP straps with a full-automatic winding process. The power consumption is only 1.8KW and the machine comes with a 12 months warranty. The PLC and touch screen are provided by Xinjie, and the paper tube size is 203mm * 165~195mm. The machine is able to automatically stop the winder when the strap is full, which makes it a highly efficient and reliable tool for the packaging industry.

Customization of Packing tape automatic winder:

Strapping Band Winding Machine

• Brand Name: Packing tape winder
• Model Number: JTPP/PET
• Place of Origin: CHINA
• Speed: 220m/min
• Tension Range: 80-200kg
• Power: 220V/380V/440V
• Application: Packaging Industry
• Power Consumption: 1.8KW
• Key Features: PET automatic winder, PP STRAP WINDER DUAL-SERVO MOTOR, Automatic winder machine

Support and Services of Packing tape automatic winder:

We provide technical support and services for the Strapping Band Winding Machine. Our team of experienced technicians is available to assist you with any technical questions you may have. We are also able to provide on-site installation and maintenance services for the machine. Additionally, our online resources can be accessed for troubleshooting and maintenance tips.

Packing and Shipping of Packing tape automatic winder:

Strapping Band Winding Machine should be securely packaged and shipped in the original box or a suitable shipping box. The package should include the following:

• Strapping Band Winding Machine
• User Manual
• Cable
• Power Adapter
• Additional Accessories

Be sure to include a packing list inside the box and clearly mark the outside of the box with the shipping address. Strapping Band Winding Machine should be shipped with a reliable carrier. Make sure to insure the package against any damages.

FAQ:

Q: What is the brand name of Strapping Band Winding Machine?

A: The brand name of Strapping Band Winding Machine is Packing tape winder.

Q: What is the model number of Strapping Band Winding Machine?

A: The model number of Strapping Band Winding Machine is JTPP/PET

Q: Where is Strapping Band Winding Machine made?

A: Strapping Band Winding Machine is made in China.

Q: What are the features of Strapping Band Winding Machine?

A: Strapping Band Winding Machine has adjustable speed, automatic tension control, and can be used for a variety of packing materials.

Q: What is the power requirement for Strapping Band Winding Machine?

A: Strapping Band Winding Machine requires 220V AC 50Hz power supply.
