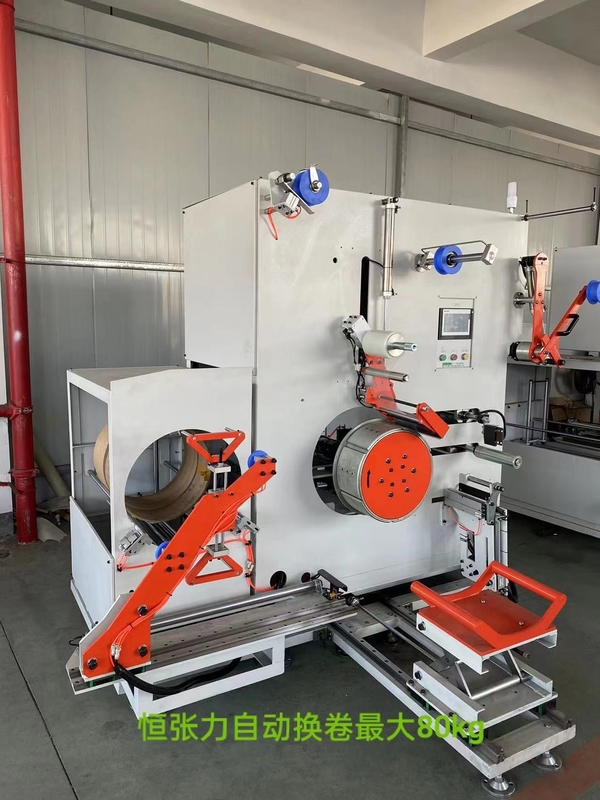

PLC Touch Screen PET Strapping Winder 80KG-350KG Automatic Winding Machine

   PLC Touch Screen PET Strapping Winder Max Winding Weight 80KG-350KG

Performance specification of winding machine:

Using condition: power single-phase 220V, air pressure 4-7kgf, plug the air pipe(Φ8)in according to the marks on the equipment,connect the electronic line(2.5 m2 +).Ventilate first, then electrify(When turning off the machine in reverse order-first turn off the electricity, then turn off the air pressure).

The PET Strap Making Machine is a high-precision, SIMENS-controlled automatic strapping machine. It is designed to produce PET straps of up to 250m/min in a variety of widths and thicknesses, ranging from 0.4mm to 1.2mm. Furthermore, its automatic reel change allows for an error of within 0.2mm. This machine is capable of producing straps in a variety of colors, including white, black, blue, and green. This makes it suitable for a range of applications and industries.

Functions of automatic winding machine:

1.Man-machine interface: operation and display of various functions in the touch screen panel (winding length, weight, start, stop, interface switching, bandwidth selection, paper core height selection, etc.)

2.

Strap band width replacement no need gears change, back and forth line travel automatically calculated, bandwidth spacing can be fine-tuned by servo.

3 Constant tension winding is realized by synchronizing the winding speed with the displacement sensor of the swing arm.

4.Metering mode selection in weight and meter 2, the use of one-button spring air tension plate, 9 - 32mm bandwidth arrangement automatic calculation, side roller fitting type belt winding, winding end face smooth, even spacing

5.Using condition: power single-phase 220V, air pressure 4-7kgf, plug the air pipe(Φ8)in according to the marks on the equipment,connect the electronic line(2.5 m2 +).Ventilate first, then electrify(When turning off the machine in reverse order-first turn off the electricity, then turn off the air pressure).

FAQ:
Q1: why should you choose us not other one?
Our company specializes in the production of PP/PET packaging tape line and we have a more than 30 years of industry research and development technology team, PP/PET strap manufacturers, PP/PET strap production line manufacturers.Customers are located in more than 10 countries, provinces and more than 200 production lines, looking foeward to working with you and hand in hand side by side build a dream.

Q2: China is far from our country, if our machine have any question that what would you do it?
We have a warranty by one year, we will conduct a chatting online with you to solve the question if have any question, and we will send the new one to change, if we find the question of the machine is other spare parts was damaged.
By the way our machine of the quality is the best one, we are confident in saying that you can using it without any question over 30 years,we have great after-sales service.
