PET Strap Extrusion Line with Adjustable Speed and Precision 300-350kg/H
Product Description of PET plastic steel belt production equipment:

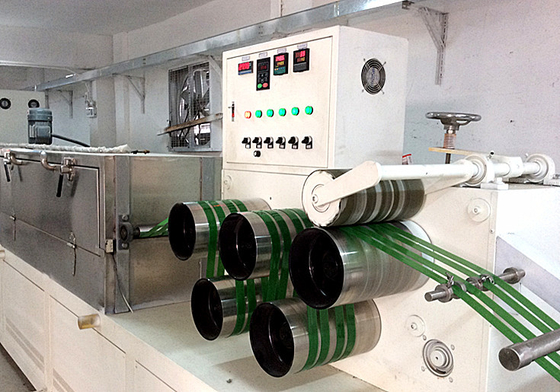

Our PET Strap Extrusion Line is a high-performance production machinery specially designed for manufacturing PET straps. It is suitable for producing PET straps with width ranging from 5mm to 19mm, and paper core specification of ￠ 406mm * 150mm. This state-of-the-art PET strap machine is equipped with double position winder and is capable of operating with PET-90 material. It provides automatic functions such as strap feeding, strap cutting, strap conveying, and winding, and is highly reliable and easy to operate. With this PET Strap Extrusion Machinery Line, you can have a high-quality, consistent PET strap production!
This is a reliable old brand in china,We have been involved in this field for 30 years.
Features of PET plastic steel belt production equipment:
- Product Name: PET Strap Extrusion Line/PET Strap Extrusion Equipment,/PET Strap Making Machine,/PET Strap Extrusion Machinery
- Applicable raw materials: It can be produced entirely with 100% bottle flakes, and the quality of the finished product can be compared with brand ne ew materials
- Power Supply: 380V/50Hz/220V/60HZ Three-phase

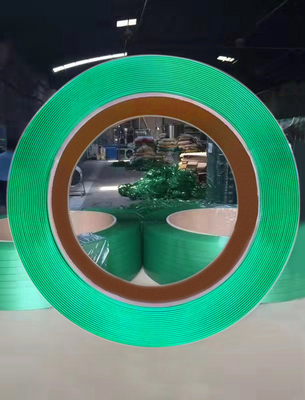

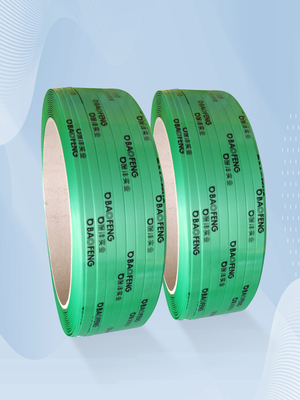

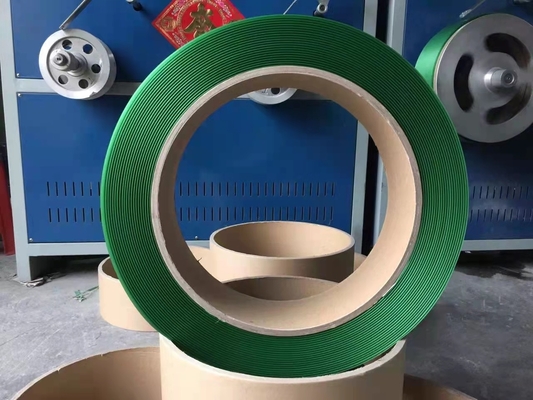

- Paper core specification: ￠ 406*150mm
- Extrusion Capacity: 350-380kg/h
- Double position winder: 3sets
- Line Speed: 220-250m/min
Technical Parameters of PET plastic steel belt production equipment:
| Property |
Value |
| Power Supply |
380V/50Hz/220V/60HZ Three-phase |
| Double position winder |
3sets |
| Line Speed |
220-250m/min |
| Paper core specification |
￠406*150mm |
| Extrusion Capacity |
300-350kg/h |
| Strap Tension |
>1000kg |
| Product Name |
PET Strap Extrusion Line |
| Material |
PET-110 |
| Strap Width |
9-32mm |
| Application |
Sheet, Strap, Pipe, Packaging Band, Tape And Strap |
Applications of PET plastic steel belt production equipment:

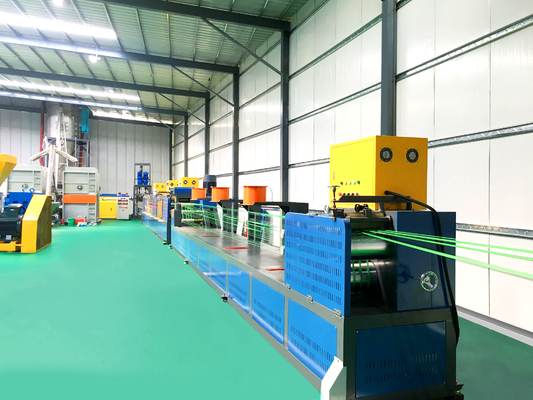

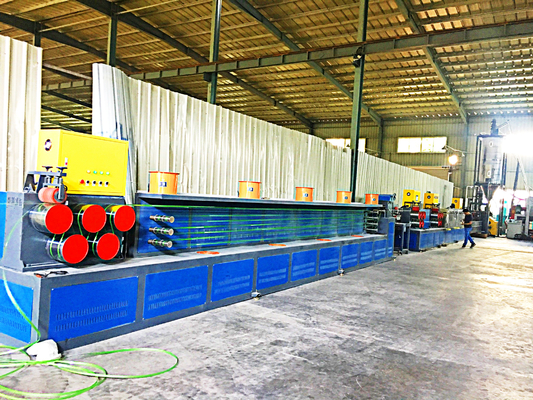

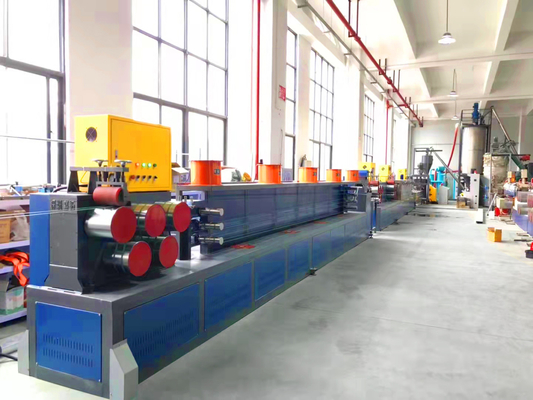

The PET strap production line from JIATUO CHINA (Model Number: JTPET) is designed to produce straps with a width of 5-19mm. It is certified with CE, SGS and ISO, and comes with a minimum order of one set, with a delivery time of 50-60 days. It is powered by 380V/50Hz/220V/60HZ three-phase power supply and has a strap tension of over 1000kg, with a total power of 200KW, and a line speed of 220m/min. This PET strap extrusion machinery is ideal for PET strap manufacturing line, providing a reliable, efficient and cost-effective solution.

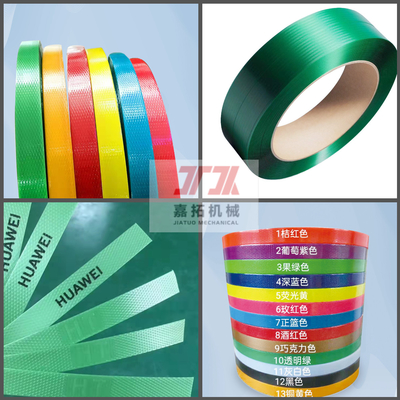

The JIATUO CHINA PET strap production line is designed to meet the highest quality standards with its robust construction and advanced features. It is equipped with multiple safety features and is designed to ensure long-term usage with minimal maintenance. The PET strap extrusion machinery is designed to produce high-quality straps with superior strength and durability. It is capable of producing straps with a wide range of widths, and can be used to manufacture straps with a variety of colors, textures and finishes.
The JIATUO CHINA PET strap production line is an ideal solution for any PET strap manufacturing line. It is easy to install and operate, and offers a reliable, efficient and cost-effective solution for producing high-quality straps. It is designed to meet the highest quality standards, and is backed by a reliable after-sales service.
Customization of PET plastic steel belt production equipment:
1.Suitable for production: width/thickness (mm) 9-25/0.6-1.2mm
2..Screw feeder 3 sets
3..ryer capacity:3000L (1 set) horizontal
4..honeycomb rotary dehumidification dryer: 0ST-1000 1 set
5..pre drying tower: 4000L 1 set (with mixing and heating)
6.. main machine bucket: 4000L, 1 set with mixing
7..screw: 100*2900mm in diameter, with the advantages of large extrusion capacity, good plasticization, high hardness, high wear resistance, etc;
8..metering pump: 100cc, motor: 5.5kw
9.screen changer: single cylinder with preheating filter, with a filtering area of 2.5 square meters.
10.discharging die head: one discharging three die heads
11.host frequency converter: 45KW (inverton)
12.temperature controller and solid state relay: Taiwan Yangming, switch and other electrical appliances: Schneider
Support and Services of PET plastic steel belt production equipment:
Technical Support and Services for PET Strap Extrusion Line
We provide technical support and services for PET strap extrusion line, including:
- Design, installation and commissioning of the extrusion line
- Troubleshooting and maintenance of the extrusion line
- Maintenance and repairs of the extrusion line
- Training and support for the operation and maintenance of the extrusion line
- Continuous technical and operational support for the extrusion line
Packing and Shipping of PET plastic steel belt production equipment:
Packaging and Shipping for the PET Strap Extrusion Line:
The PET Strap Extrusion Line will be packaged in a standard wooden box with adequate padding for protection. The box will be sealed with strong tape to ensure the product is secure during transit. The package will be shipped via an insured carrier service to ensure that the product arrives safely and on time.
FAQ of PET plastic steel belt production equipment:
Q1: What is the Brand Name of this PET Strap Extrusion Line?
A1: The Brand Name of this PET Strap Extrusion Line is JIATUO CHINA.
Q2: What is the Model Number of this PET Strap Extrusion Line?
A2: The Model Number of this PET Strap Extrusion Line is JTPET.
Q3: What is the Place of Origin of this PET Strap Extrusion Line?
A3: The Place of Origin of this PET Strap Extrusion Line is China.
Q4: What Certifications does this PET Strap Extrusion Line have?
A4: This PET Strap Extrusion Line has CE, SGS and ISO certifications.
Q5: What is the Minimum Order Quantity of this PET Strap Extrusion Line?
A5: The Minimum Order Quantity of this PET Strap Extrusion Line is 1 SET.
Q6: How long does it take to deliver this PET Strap Extrusion Line?
A6: The delivery time for this PET Strap Extrusion Line is 50-60 days.
