20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm

20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm
20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm
20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm 20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm 20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm 20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm 20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm 20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm 20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm 20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm 20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm 20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm

Large Image :  20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm

Product Details:
Place of Origin: CHINA
Brand Name: JIATUO CHINA
Certification: CE ISO
Model Number: JT-testing
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plastic film
Delivery Time: 5-10days
Payment Terms: L/C, T/T
Contact Now

20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm

Description
Warranty: 1 Year Customized Support: OEM
Brand Name: Tensile Tester Power: Electronic
The Maximum Testing Force: 20KN Speed Of Testing: 0.01～500 Mm/min
Machine Dimension: L335*W40*H1200mm Weight: 75kgs
Application: PP/PET Print: Can Print Testing Report

20KN PET PP Strapping Band Belt Strap Tension Tensile Breaking Strength Testing Machine



Specifications



Capacity 2, 5, 10, 20, 50, 100, 200Kg
Unit G, KG, N, LB can be exchanged
Accurate Grade 0.5grade
Display Device PC
Resolution 1/250,000
Effective Accuracy ±0.2%(0.5grade)
Max.Stroke 600mm
Speed Range 0.01-500mm/min (adjustable )
Motor Servo Motor + High Precise Ball Screw
Elongation Accuracy 0.001mm
Power AC220V, 50/60HZ(custom-made)
Standard Accessories

Tensile clamp, Tool kit, Computer system, English software CD,

and User manual



20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm 0

Summary

The Rubber and Plastic Universal Tensile Tester is applied to quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.

Theory

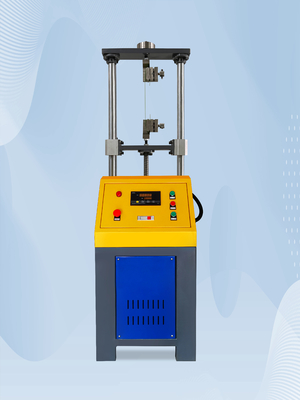

This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check tensile strength and convert the strength into voltage sign andoutput to the display screen. And the strength value will be displayed automatically on the computer.



Main features
  1. That Using the computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
  2. Have steady performace, high accuracy, powerful software function and easy operation.​
  3. Use the USA high-precision load cell.
  4. Easily use control handle to adjust space and test.

20KN Tensile Testing Machine For PET PP Strapping Band Belt Strap High Precision Ball Screw Tensile Tester with 0.001mm 1
