Durable PET Strap Manufacturing Machine Brickyard 100% Broken Material
Description of PET strapping band production line:
The series PET Packing strap production line is new equipment designed by JIATUO MACHINERY. By combining the characters of the same type of machines in domestic and overseas markets, the production line is of the most advanced technology in this field. It is of characters of high efficiency, high output, low power consumption and energy saving.
PET strap production line configuration reference:
| Item |
Name |
Quantity |
| 1 |
Dehumidification and drying system |
1 set |
| 2 |
Oil and dust filter |
1 set |
| 3 |
Horizontal mixer(5000L) |
1 set |
| 4 |
Pre-drying tower(5000L) |
1 set |
| 5 |
Screw Feeder |
3 set |
| 6 |
Barrel(5000L) |
1 set |
| 7 |
¢125mm Extruding Machine |
1 set |
| 8 |
Melt pump |
1 set |
| 9 |
Single cylinder filter |
1 set |
| 10 |
PET Mould output 4straps |
1 set |
| 11 |
Cooling water tank |
1 set |
| 12 |
Stretching oven |
1 set |
| 13 |
Five roller gearbox |
3 set |
| 14 |
PLC electrical control system |
1 set |
| 15 |
Forming oven |
1 set |
| 16 |
Double disk winder |
4 set |
Parameters of PET strap making machine:
| 1 |
Materials |
PET raw material or 100% PET bottle flakes recycled |
| 2 |
Product |
PET output 4straps making machine |
| 3 |
Capacity |
360-380kg/h |
| 4 |
Total install power |
300kw, (actual power consumption is 150-160%) |
| 5 |
Strap width |
9 mm-32 mm |
| 6 |
Thickness |
0.6 mm-1.2 mm |
| 7 |
Manpower |
3person/shift |
| 8 |
Workshop required |
L (65m) ×W (2m) ×H (7m) |
| 9 |
Cooling water |
≤20℃,≥0.3Mpa, 5-8Ton/hr |
| 10 |
Compressed air |
0.5-0.8Mpa |
| 11 |
Power source |
380V, 50Hz, 3Phase (according to customer requirement) |
| 12 |
Electric components |
Schneider |
| 13 |
Inverter |
INVT |
| 14 |
Switches |
Taiwan Yangming |
| 15 |
Motor power |
Simens |
| 16 |
Bearing |
TR |

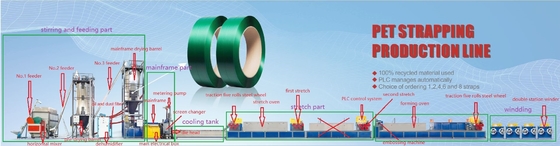

PET polyester strap production line Process flow:
① feeding→② mixing raw materials→③ raw material pre-drying→④ vacuum dehumidification of raw materials→⑤ raw materials melting extrusion→⑥ material embryo expression(with embryo) cooling molding→⑦oven preheating→⑧first stretching→⑨second stretching→⑩embossing→⑪ oven tempering to set the shape→⑫ cooling → ⑬winding(finished product)
Features of PET strapping band production line:
- Using the recycling bottle slices as raw materials by making them melt directly, which reduces the course of raw material-making
- With the multi-purpose machine, it can produce PET straps in different specifications directly and doesn"t need to change the mould head
- The products has the same transparency as made from new polyester slices, but the tensile strength and shock resistance are stronger
- Low energy consumption, high production capability
- Easy to operate, saves manpower
- Interior of oven have 6 strip of heating pipe, unique oven hot air circulation method, Make full use of heat to reduce power consumption
Our Services:
Technical documents
We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.
Arrangement for inspection, installation and testing work
After being informed machines ready for inspection, customer can send engineers to our factory.
After the machines are delivered to customer’s factory, we will send one or two technicians to the factory after preparation work is completed. Technicians will be responsible for guide on-site installation and testing machines.
Meanwhile technicians will give free training lessons to labors in customer’s factory.
After one year quality guarantee period, we will provide after-sell service for all the life.
