Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JTPET-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50 set/month

Thickness 0.6-12mm PET Strapping Extrusion Line Plastic Strap Packing Machine PET Strap Making Machine, 1-6 Straps, 9-32

Description
Product Type: PET Strap Making Machine Raw Material: PET Flakes Or 100% Recycled Material
PET Strap Width: 9-32mm Capacity: 200kg/h
PET Thickness Range: 0.6-12mm Driven Type: Electric
Voltage: According To Customer's Factory Product Color: Green/Pink/yellow/black
Motor: Siemens After-sales Service Provided: Video Technical Support, Online Support
Application: Packaged Material Warranty: 1 Year
Highlight:

PET strapping extrusion line

,

plastic strap packing machine

,

PET strap making machine with warranty

PET Strapping Extrusion Line PET Machine Plastic Strap Packing Machine


Quick Detail Of PP Strap Making Machine

Name: PET 1 to 6 strapping production line

Applicable raw materials: PET raw material or 100% PET bottle flakes recycled

Number of screws: 1 Screw

Number of extruded belts: 1, 2, 4, 6

Width range: 9-32mm

Thickness range: 0.6-12mm

Production capacity: 200kg/h 250kg/h 350kg/h
Installation size: 35m*(3~6)m*(4~6)m or 45m*(3~6)m*(4~6)m



Specification Of PET Strap Production Line

NO. Item Specification
1 Power According to customer's factory voltage
2 Material PET raw material or 100% PET bottle flakes recycled
3 Capacity

PETJT90:200kg/h

PETJT100:250kg/h

PETJT125:350kg/h

4 Product size

Width:9-32mm

Thickness:0.6-12mm

6 Mid-height of extruder 7000mm
7 Installation power

PETJT90:200KW

PETJT100:250KW

PETJT125:300KW

8 Humidity <85%
9 Temperature 0-40 degree
10 Cooling tower capacity 30T/H or 50T/H
11 Installation Dimensions

PETJT90:45*2.0*7.0M

PETJT100:45*2.0*7.0M

PETJT125:60*3.0*8.0M

12 Product color Green/Black/Pink/Yellow
13 Factory dimension

35m*(3~6)m*(4~6)m

45m*(3~6)m*(4~6)m

If your factory not big enough,please contact with us,our engineer can according to your size to design

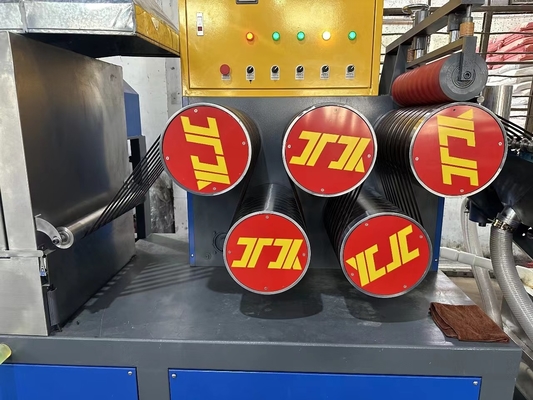

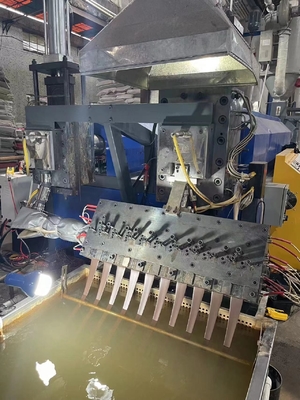

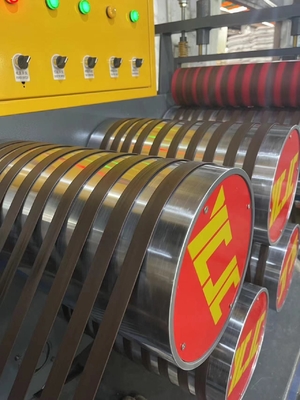

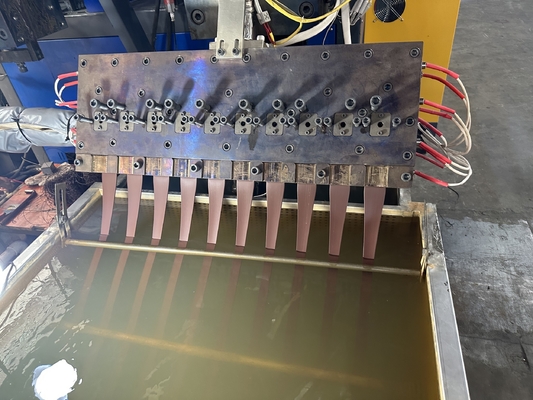

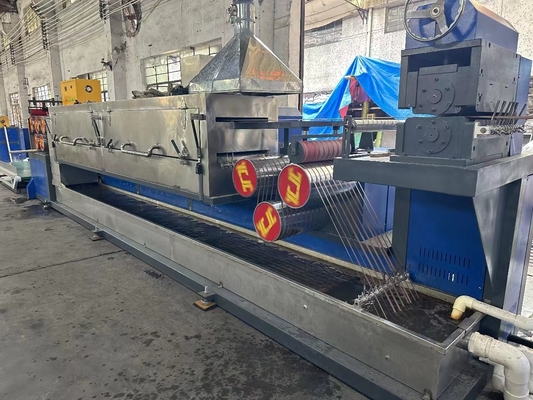

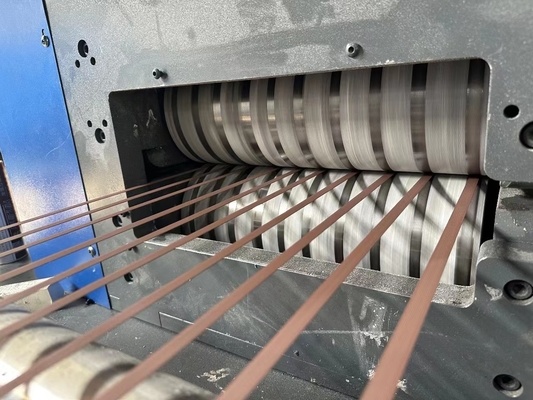

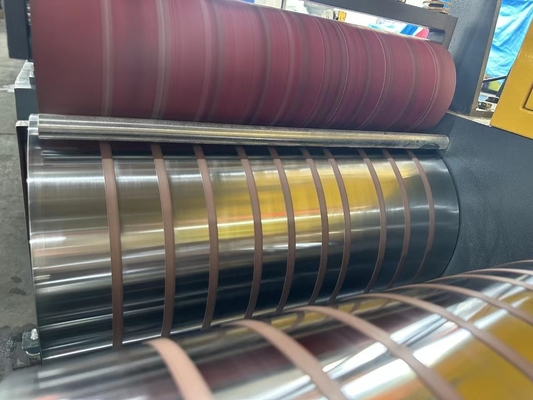

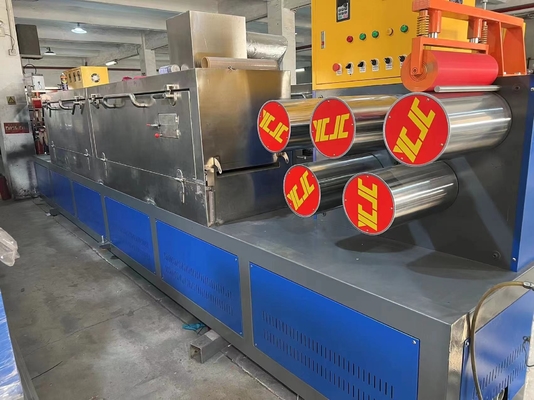

Overall picture of PET Strapping Machine

Thickness 0.6-12mm PET Strapping Extrusion Line Plastic Strap Packing Machine PET Strap Making Machine, 1-6 Straps, 9-32 0

More information about PET strapping extrusion production line



PET strap making machines with 1, 2 or 4 straps extruded are available. final straps from 100% PET bottle flakes exhibit high tensile strength, the resistance to splitting.

With over 10 years experience in transforming recycled raw materials into a consistent quality PET strap by supplying manufacturing facilities for extruding, stretching, stabilizing and collecting processes.

the straps have excellent characteristics such as dimensional stability (width & thickness), weight, camber, breaking loads, elongations under load, weldability and service life. High performance PET straps produced on our PET strap machinery are replacing steel straps at significant savings.

Thickness 0.6-12mm PET Strapping Extrusion Line Plastic Strap Packing Machine PET Strap Making Machine, 1-6 Straps, 9-32 1



Features of PET packing strap production line:

  • 1. Better tensile strength: the PET strap production line has the tensile strength of the steel belt, and the ductility is good, and the anti-impact performance is better. It is not easy to break, and it can ensure the safety of product transportation.

  • 2. Strong temperature resistance: the experiment proved that the melting point of PET packing belt at about 260 ℃, can be used under the environment of 120 ℃ for a long time not to distort,it has a good stability.

  • 3. Good economic benefit: the density of PET packaging belt is 1.30 ~ 1.38 g/cm3, which is only 1/6 of the steel belt density (7.8 g/cm3), which is equivalent to the length of the 6-ton steel belt, and the price of the same unit length is relatively low.

  • 4. Environmentally friendly: the steel belt will rust due to exposure to the air, and the rust is highly permeable to the packaging. PET packing tape is beautiful and not rusted, but avoid unnecessary worry. It can also be recycled.

  • 5. Small extension: Although PET strap is one kind of plastics, its extension of change is very small, its elongation is only 1/ 6 of polypropylene, it can maintain tension force, after the packing make the expansion no longer change.

  • 6. Good flexibility and safe operation: the PET packing strip has no sharp edge with steel belt, it will not scratch the package, and it will not hurt the hand. You don’t need a special tool when you cut it, even if it’s tight, it doesn’t hurt when you cut it.

  • 7.High quality packaging ideal products: PET packaging with all kinds of bright colors, shiny, high quality, the most ideal packaging products of high-end packaging

Thickness 0.6-12mm PET Strapping Extrusion Line Plastic Strap Packing Machine PET Strap Making Machine, 1-6 Straps, 9-32 2
