Automatic 12mm PET Plastic Sheet Extrusion Machine PLC Controlled PET Strap Extrusion Line

Automatic 12mm PET Plastic Sheet Extrusion Machine PLC Controlled PET Strap Extrusion Line
Automatic 12mm PET Plastic Sheet Extrusion Machine PLC Controlled PET Strap Extrusion Line
Automatic 12mm PET Plastic Sheet Extrusion Machine PLC Controlled PET Strap Extrusion Line Automatic 12mm PET Plastic Sheet Extrusion Machine PLC Controlled PET Strap Extrusion Line Automatic 12mm PET Plastic Sheet Extrusion Machine PLC Controlled PET Strap Extrusion Line Automatic 12mm PET Plastic Sheet Extrusion Machine PLC Controlled PET Strap Extrusion Line Automatic 12mm PET Plastic Sheet Extrusion Machine PLC Controlled PET Strap Extrusion Line Automatic 12mm PET Plastic Sheet Extrusion Machine PLC Controlled PET Strap Extrusion Line Automatic 12mm PET Plastic Sheet Extrusion Machine PLC Controlled PET Strap Extrusion Line Automatic 12mm PET Plastic Sheet Extrusion Machine PLC Controlled PET Strap Extrusion Line Automatic 12mm PET Plastic Sheet Extrusion Machine PLC Controlled PET Strap Extrusion Line

Large Image :  Automatic 12mm PET Plastic Sheet Extrusion Machine PLC Controlled PET Strap Extrusion Line

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JTPET-90
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50 set/month

Automatic 12mm PET Plastic Sheet Extrusion Machine PLC Controlled PET Strap Extrusion Line

Description
Product Type: PET Strap Making Machine Raw Material: PET Flakes Or 100% Recycled Material
PET Strap Width: 9-32mm PET Thickness Range: 0.6-12mm
Capacity: 200kg/h Driven Type: Electric
Voltage: According To Customer's Factory Motor: Siemens
Product Color: Green/Pink/yellow/black After-sales Service Provided: Video Technical Support, Online Support
Application: Packaged Material Warranty: 1 Year
Highlight:

PLC Strap Plastic Sheet Extrusion Machine

,

Automatic 12mm PET Strap Extrusion Line

,

PLC Controlled PET Strap Extrusion Line

Automatic PET Plastic Sheet Extrusion Machine For PET Strapping Band


PRODUCT DESCRIPTION

PET sheet production line equipment is divided into three types: Crystallizing and drying PET sheet production line single screw, Parallel twin-screw vent-free crystal drying PET sheet production line, Venting single screw –free crystal drying PET sheet production line. It can produce single, multi-layer sheet by multi-extruder co-extrusion. Processed materials can be APET, PETG, CPET etc ,the Final Products is Widely used in thermal forming, printing, metal packaging.

*With precision dispenser, evenly stratified and layers adjustable ratio.

*Horizontal tablet structure, operation and maintenance more convenient.

*Roll independent power, line speed and extruder speed synchronization control.

*The machine adopts PLC control, parameter setting, data and the feedback and alarm automation.



PET Strap Production Line Machine List

NO. Item Specification
1 Power According to customer's factory voltage
2 Material PET raw material or 100% PET bottle flakes recycled
3 Capacity

PETJT90:200kg/h

PETJT100:250kg/h

PETJT125:350kg/h

4 Product size

Width:9-32mm

Thickness:0.6-12mm

6 Mid-height of extruder 7000mm
7 Installation power

PETJT90:200KW

PETJT100:250KW

PETJT125:300KW

8 Humidity <85%
9 Temperature 0-40 degree
10 Cooling tower capacity 30T/H or 50T/H
11 Installation Dimensions

PETJT90:45*2.0*7.0M

PETJT100:45*2.0*7.0M

PETJT125:60*3.0*8.0M

12 Product color Green/Black/Pink/Yellow
13 Factory dimension

35m*(3~6)m*(4~6)m

45m*(3~6)m*(4~6)m

If your factory not big enough,please contact with us,our engineer can according to your size to design

Automatic 12mm PET Plastic Sheet Extrusion Machine PLC Controlled PET Strap Extrusion Line 0

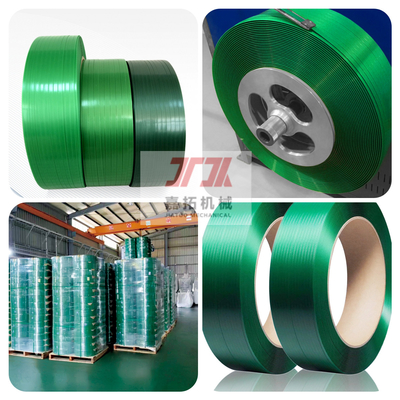

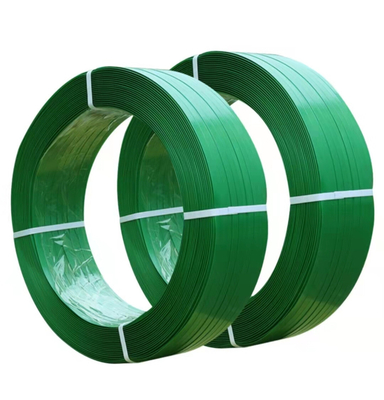

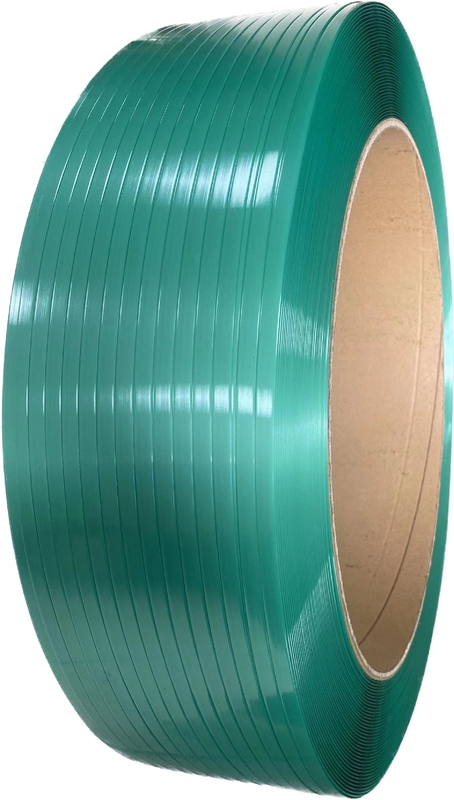

Advantages of PET strap

  • Tensile: PET plastic strip is a kind of packaging material with good tensile strength and excellent welding performance.
  • The elongation is small: the elongation is only one-sixth of that of the polypropylene (PP) belt, and the tension can be maintained a long time.
  • Strong temperature resistance: melting point of 260 degrees, superior weather resistance, between -50 ° C -120° C, maintaining good stability.
  • Compare with steel strap,it have obvious economic benefits for customer

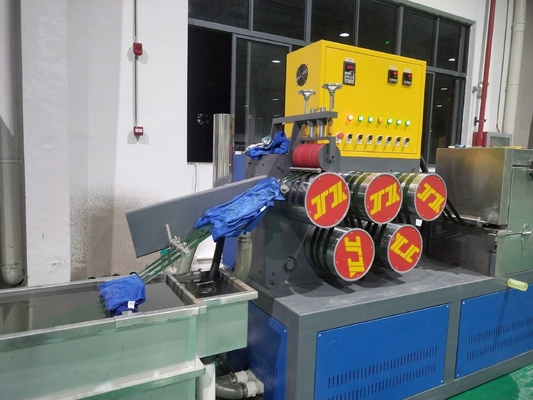

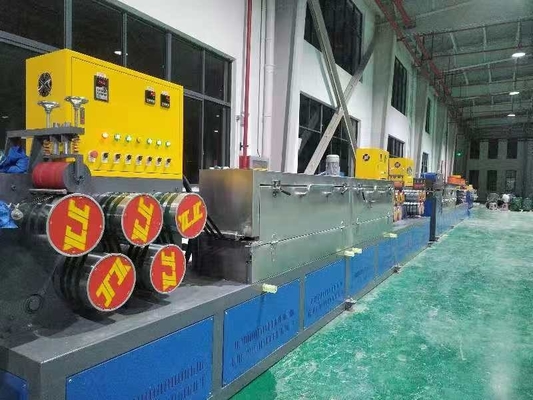

Features of PET packing strap production line:

  • 1. Better tensile strength: the PET strap production line has the tensile strength of the steel belt, and the ductility is good, and the anti-impact performance is better. It is not easy to break, and it can ensure the safety of product transportation.

  • 2. Strong temperature resistance: the experiment proved that the melting point of PET packing belt at about 260 ℃, can be used under the environment of 120 ℃ for a long time not to distort,it has a good stability.

  • 3. Good economic benefit: the density of PET packaging belt is 1.30 ~ 1.38 g/cm3, which is only 1/6 of the steel belt density (7.8 g/cm3), which is equivalent to the length of the 6-ton steel belt, and the price of the same unit length is relatively low.

  • 4. Environmentally friendly: the steel belt will rust due to exposure to the air, and the rust is highly permeable to the packaging. PET packing tape is beautiful and not rusted, but avoid unnecessary worry. It can also be recycled.

  • 5. Small extension: Although PET strap is one kind of plastics, its extension of change is very small, its elongation is only 1/ 6 of polypropylene, it can maintain tension force, after the packing make the expansion no longer change.

  • 6. Good flexibility and safe operation: the PET packing strip has no sharp edge with steel belt, it will not scratch the package, and it will not hurt the hand. You don’t need a special tool when you cut it, even if it’s tight, it doesn’t hurt when you cut it.

  • 7.High quality packaging ideal products: PET packaging with all kinds of bright colors, shiny, high quality, the most ideal packaging products of high-end packaging

Automatic 12mm PET Plastic Sheet Extrusion Machine PLC Controlled PET Strap Extrusion Line 1
