Automatic Plastic Strapping Band Winders/ Pp Strapping Band Winders/pet Strapping Bands Winder

Automatic Plastic Strapping Band Winder With 4N.M Torque Motor

Automatic Plastic Strapping Band Winder/ Pp Strapping Band Winders/pet Strapping Bands Winder

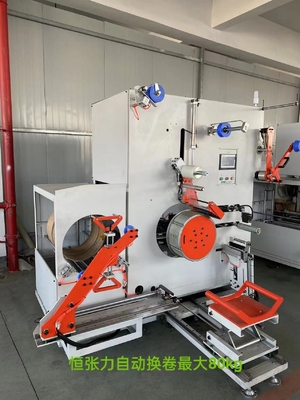

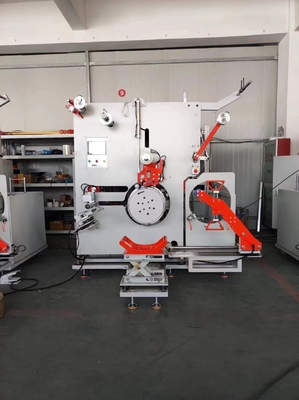

Automatic Single Station Plastic PET Band Strapping Winder Machine
Quick Detail About PET Strap Winder
1. Torque motor(Main machine) 4N.M
2. Change roller motor By air cylinder
3. Conveyor belt motor 0.4KW
4. PLC contactor (switch) Korean LS brand
5. Transducer and Approach toggle Light: Korean AUTONICS
6. Type Single station station
7. Winding Diamete of paper core 200 mm X185 mm(can Customized)
8. Surface treatment High temperature spray chromeplate

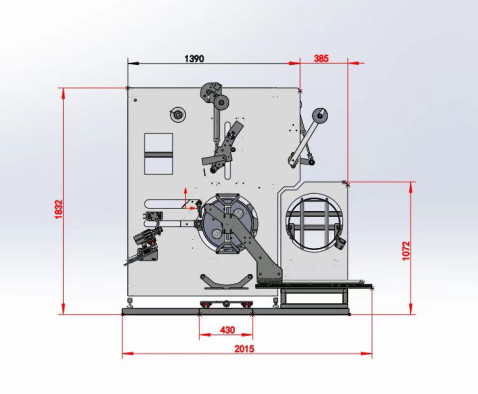

9. Machine dimension 1600MM*1500MM*1400MM(L*W*T)
10. Change roller time Around 12 seconds
11. Automatic cutting yes
12. After cutting machine automatic nailling fixed strap then rolling,make final roller orderliness

Specification Of PET Strapping machine

Advantage Of Full automatic strap winder

1 .Using condition: power single-phase 220V, air pressure 4-7kgf, plug the air pipe(Φ8)in according to the marks on the equipment,connect the electronic line(2.5 m2 +).Ventilate first, then electrify.
2. Man-machine interface: operation and display of various functions in the touch screen panel (winding length, weight, start, stop, interface switching, bandwidth selection, paper core height selection, etc.)

3. Strap band width replacement no need gears change, back and forth line travel automatically calculated, bandwidth spacing can be fine-tuned by servo.

4. Constant tension winding is realized by synchronizing the winding speed with the displacement sensor of the swing arm.

5. Metering mode selection in weight and meter 2, the use of one-button spring air tension plate, 9 - 32mm bandwidth arrangement automatic calculation, side roller fitting type belt winding, winding end face smooth, even spacing.



FAQ About Plastic Strapping Band Making Machine

1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm;
* What about the installation power of the PP strap machine? 135kw/155kw/195kw/439kw;
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm;
* What about the installation power of the PET strap machine? 215kw/285kw/352kw/900kw;


Turnkey Project Service About Fully-auto Strapping Machine
Pre-sale service:
1. To provide all the machines for the complete testing according to customer's requirements.
2. To provide complete service for factory layout and other information to help customer to build the factory.
After-service:
1. To provide raw material to the customer if you need.
2. Free installation and debugging and training until customers can run the machines and make stably production.
3. Provide all kinds of product formula, technology
4. According to the customer's requirements, provide technical guidance
5. Responsible for maintenance service, door to door service if necessary.
6. Except one year quality guarantee,we will provide after-sell service for all the life.
