0.4 - 1.2mm PET Strap Extruder / Making Machine China Supplier Wholesale

0.4 - 1.2mm PET Strap Extruder / Making Machine China Supplier Wholesale
0.4 - 1.2mm PET Strap Extruder / Making Machine China Supplier Wholesale
0.4 - 1.2mm PET Strap Extruder / Making Machine China Supplier Wholesale 0.4 - 1.2mm PET Strap Extruder / Making Machine China Supplier Wholesale 0.4 - 1.2mm PET Strap Extruder / Making Machine China Supplier Wholesale 0.4 - 1.2mm PET Strap Extruder / Making Machine China Supplier Wholesale 0.4 - 1.2mm PET Strap Extruder / Making Machine China Supplier Wholesale 0.4 - 1.2mm PET Strap Extruder / Making Machine China Supplier Wholesale

Large Image :  0.4 - 1.2mm PET Strap Extruder / Making Machine China Supplier Wholesale

Product Details:
Place of Origin: CHINA
Brand Name: JIATUO CHINA
Certification: CE ISO
Model Number: JTPET
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plastic film
Delivery Time: 50-60DAYS To be negotiated
Payment Terms: L/C, T/T

0.4 - 1.2mm PET Strap Extruder / Making Machine China Supplier Wholesale

Description
Core Components: Motor, PLC, Gearbox, Screw Automatic Grade: Fully Automatic/ Semi Automatic
Machinery Test Report: Provided Screw Style: Single Screw Extruder
Temperature Control: Taiwan Fotek Motor: SIMENS
Control Systems: PLC Chinese/English Control System Number Of Extruded Strap: 2/3/4/6
Production Capacity: 180-620KGS Warranty: 1 Year
Screw Diameter (mm): 90/100/125/150mm Strap Width: 9-32mm
Thickness: 0.4-1.2mm Application Scope: Brickyard, Metal, Steel, Aluminum,brewery
Screen Filter: Two-way Cylinder / Single Cylinder Screw Material: 38CrMoALA
Highlight:

1.2mm PET Strap Extruder

,

SIMENS Motor PET Strap Extruder

,

SIMENS Motor PET Strap Making Machine

China Supplier Wholesale PET Strap Extruder Making Machine 0.4-1.2mm

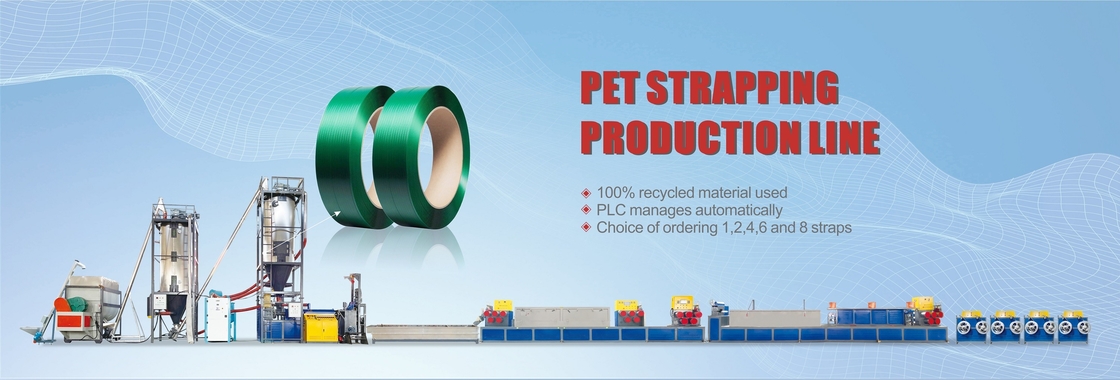

Description of PET belt making machine

PET strap production machine, which has broken through the traditional craft route, takes the 100% bottle slice for raw materials without any other complement and crystallization, adopts the advance technology to produce all kinds of polyester straps directly in a economical cost.



Performance advantages of PET belt production line

  1. PET raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;
  2. Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;
  3. With the multi-purpose machine, produce the PET straps in different specifications directly and don’t need to change the mould head;
  4. Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock resistance are up to the international grade;
  5. Low Energy consumption, but high production capability;
  6. Easy to operate, save the manpower and two persons for one production line on average.

0.4 - 1.2mm PET Strap Extruder / Making Machine China Supplier Wholesale 0



Main technical parameters of PET strap production machine

Model JTPET-90 JTPET-100 JTPET-125 JTPET-150
Number of straps 2 3 4 6
Width(mm) 9-32mm 9-32mm 9-32mm 9-32mm
Thickness(mm) 0.6-1.2mm 0.4-1.2mm 0.4-1.2mm 0.4-1.2mm
Screen changer single cylinder/ two-way cylinder
Reducer model 200 250 280 315
Production capacity 180-230kg/H 250-280kg/H 380-430kg/H 580-630kg/H



Features of PET packing strap production line

  1. Better tensile strength: the PET strap production line has the tensile strength of the steel belt, and the ductility is good, and the anti-impact performance is better. It is not easy to break, and it can ensure the safety of product transportation.
  2. Small extension: Although PET strap is one kind of plastics, its extension of change is very small, its elongation is only 1/ 6 of polypropylene, it can maintain tension force, after the packing make the expansion no longer change.
  3. Strong temperature resistance: the experiment proved that the melting point of PET packing belt at about 260 ℃, can be used under the environment of 120 ℃ for a long time not to distort,it has a good stability.
  4. Good economic benefit: the density of PET packaging belt is 1.30 ~ 1.38 g/cm3, which is only 1/6 of the steel belt density (7.8 g/cm3), which is equivalent to the length of the 6-ton steel belt, and the price of the same unit length is relatively low.
  5. Environmentally friendly: the steel belt will rust due to exposure to the air, and the rust is highly permeable to the packaging. PET packing tape is beautiful and not rusted, but avoid unnecessary worry. It can also be recycled.
  6. Good flexibility and safe operation: the PET packing strip has no sharp edge with steel belt, it will not scratch the package, and it will not hurt the hand. You don't need a special tool when you cut it, even if it's tight, it doesn't hurt when you cut it.
  7. High quality packaging ideal products: PET packaging with all kinds of bright colors, shiny, high quality, the most ideal packaging products of high-end packaging

0.4 - 1.2mm PET Strap Extruder / Making Machine China Supplier Wholesale 1

0.4 - 1.2mm PET Strap Extruder / Making Machine China Supplier Wholesale 2

0.4 - 1.2mm PET Strap Extruder / Making Machine China Supplier Wholesale 3
