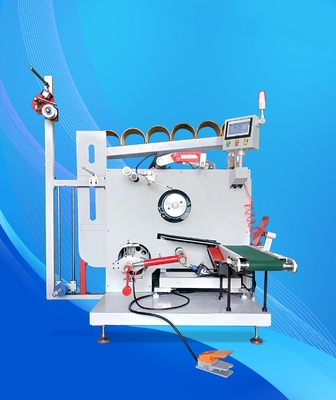

Servo Motor Fully Automatic PET Packing Belt Winding Machine Touch Screen Panel

Servo Motor Fully Automatic PET Packing Belt Winding Machine Touch Screen Panel

Performance specification of winding machine

1. Man-machine interface: operation and display of various functions in the touch screen panel (winding length, weight, start, stop, interface switching, bandwidth selection, paper core height selection, etc.)
2. Strap band width replacement no need gears change, back and forth line travel automatically calculated, bandwidth spacing can be fine-tuned by servo.
3. Constant tension winding is realized by synchronizing the winding speed with the displacement sensor of the swing arm.
4. D, Metering mode selection in weight and meter 2, the use of one-button spring air tension plate, 9 - 32mm bandwidth arrangement automatic calculation, side roller fitting type belt winding, winding end face smooth, even spacing.

​

Functions of automatic winding machine

1. Use the servo motor to arrange the cable, rewind the 9-19MM width of the packing tape, and select the corresponding bandwidth through the touch screen for rewinding, without the need to manually replace the transmission gear.
2. After the winding is completed, the machine will automatically stop, and the paper tube will be replaced, the packing tape will be cut off and the packing tape head will be fixed by clips, and the winding operation will be performed automatically, and the whole process will be completed automatically.
3. The rewinding shaft uses the torque mode of the servo motor. The torsion force during rewinding can be set through the touch screen, so that the packing tapes of different gram weights or widths can be wound with appropriate torque, and the bending of the wrapping tapes after rewinding can be reduced as much as possible. deformed.
4. After the winding is completed, the packing belt that exits is automatically moved to the storage belt conveyor. About 3 rolls of packing belt can be placed on the conveyor, and the conveyor belt can also be lengthened according to customer needs.

​

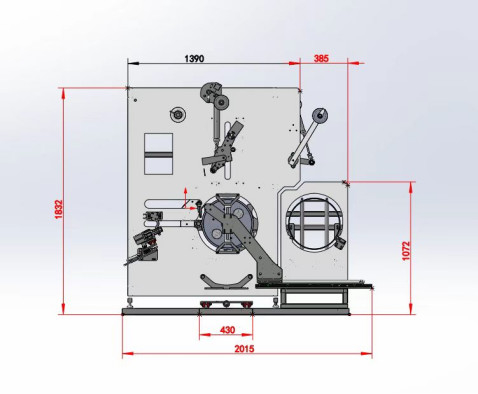

Specification

FAQ:

Q1: why should you choose us not other one?
Our company specializes in the production of PP/PET packaging tape line and we have a more than 20 years of industry research and development technology team, PP/PET strap manufacturers, PP/PET strap production line manufacturers.Customers are located in more than 10 countries, provinces and more than 200 production lines, looking foeward to working with you and hand in hand side by side build a dream.

Q2: China is far from our country, if our machine have any question that what would you do it?

We have a warranty by one year, we will conduct a chatting online with you to solve the question if have any question, and we will send the new one to change, if we find the question of the machine is other spare parts was damaged.

By the way our machine of the quality is the best one, we are confident in saying that you can using it without any question over 10 years,we have great after-sales service.
