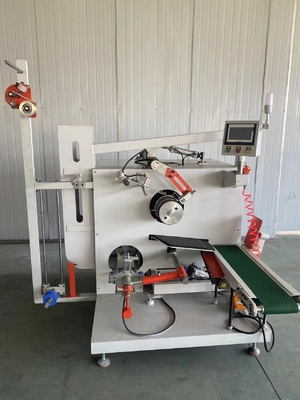

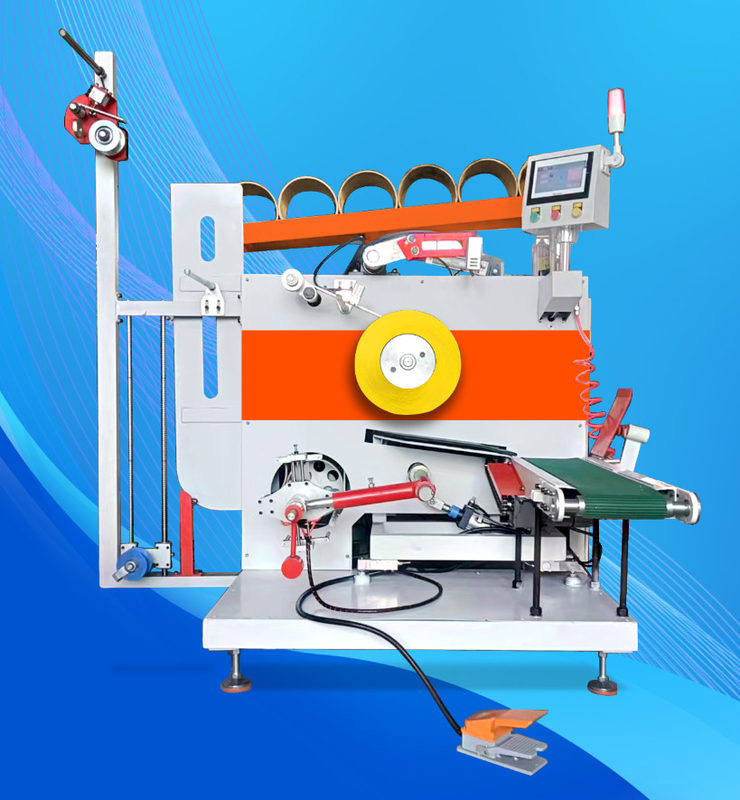

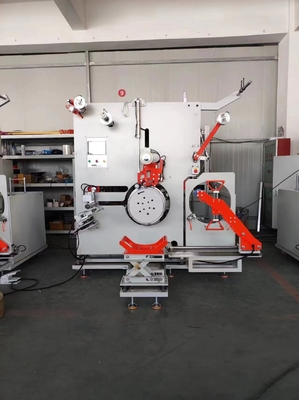

8-19mm 220V Plastic PP Strapping Winder Machine With PLC Touch Screen

8-19mm 220V Plastic PP Strapping Winder Machine With PLC Touch Screen

Quick Detail About PP Strap Winder
1. Frame: it is composed of iron plates of various thicknesses, welding by 5# angle iron and grooved steel pipes

2. Motor: main motor (2-phase, 220V, 1.8kw, servo motor, domestic Xinjie)

Wiring motor (2-phase, 220V, 0.6kw, servo motor, domestic Xinjie)

3. PLC touch screen: Xinjie.

4. Sensor and proximity switch lamp: used by otonix, South Korea

5. Surface treatment: high temperature spraying, chrome plating, blackening treatment.

Specification Of PP Strapping machine

A. Man-machine interface: operation and display of various functions in the touch screen panel (winding length, weight, start, stop, interface switching, bandwidth selection, paper core height selection, etc.)
B. Strap band width replacement no need gears change, back and forth line travel automatically calculated, bandwidth spacing can be fine-tuned by servo.
C. Constant tension winding is realized by synchronizing the winding speed with the displacement sensor of the swing arm.
D. Metering mode selection in weight and meter 2, the use of one-button spring air tension plate, 9 - 32mm bandwidth arrangement automatic calculation, side roller fitting type belt winding, winding end face smooth, even spacing.


Advantage Of Full automatic strap winder

1) use the servo motor to lay the cable, and wind up the PP STRAP with the width of 7-19mm. Select the corresponding bandwidth through the touch screen to wind up, and there is no need to manually replace the transmission gear.
2) After the winding is completed, the machine will stop automatically, replace the paper tube, cut off the PP STRAP and clamp the pieces to fix the STRAP head, and the winding operation will be carried out automatically, and the whole process will be completed automatically.
3) The winding shaft uses the torque mode of servo motor, and the torque during winding can be set through the touch screen, so that the PP STRAP with different gram weight or width can be wound with appropriate torque, so be best to minimize the bending deformation of the PP STRAP after winding.
4) After the winding is completed, the exiting packing belt will automatically move to the storage belt conveyor. About 3 rolls can be placed on the conveyor, and it can also be lengthened according to the needs of customers.

About the PP STRAP curvature:

the factors that affect the PP STRAP include:

grinding tools, embossing, the setting rate when cooling and setting, the tightness when winding, etc. The most important thing is that the cooling and shaping must be sufficient, because PP STRAP curvature occurs when the strap in side of the roll. If the waste heat inside the packing belt is not fully eliminated, there will be bending on both sides after the packing belt is placed for a certain time.
