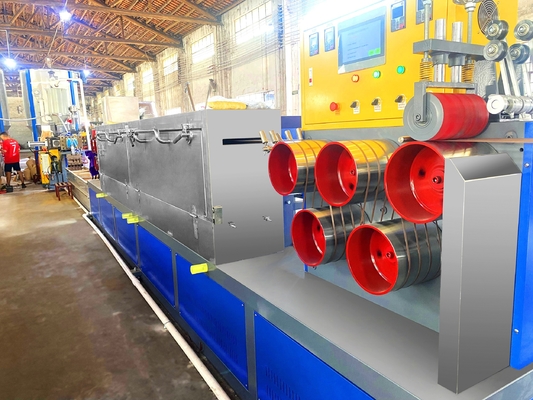

200kg/H PET Strapping Extrusion Line 9-32mm Plastic Strap Packing Machine
Quick Detail About PET Packing Strap Production Line
The machine is mainly used to make pet strap ,pet packing strap. Adopt the plc control the whole line do the auotmatic production
it use the melting pump and pressure sensor ensure the production stable and strap quality control The raw material you can use is 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each PP strap production line is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if raw materials, it will be better. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.
Specification Of PET Strapping Machine
| NO. |
Item |
Specification |
| 1 |
Power |
According to customer's factory voltage |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Capacity |
PETJT90:200kg/h
PETJT100:250kg/h
PETJT125:350kg/h
|
| 4 |
Product size |
Width:9-32mm
Thickness:0.6-12mm
|
| 6 |
Mid-height of extruder |
7000mm |
| 7 |
Installation power |
PETJT90:200KW
PETJT100:250KW
PETJT125:300KW
|
| 8 |
Humidity |
<85% |
| 9 |
Temperature |
0-40 degree |
| 10 |
Cooling tower capacity |
30T/H or 50T/H |
| 11 |
Installation Dimensions |
PETJT90:45*2.0*7.0M
PETJT100:45*2.0*7.0M
PETJT125:60*3.0*8.0M
|
| 12 |
Product color |
Green/Black/Pink/Yellow |
| 13 |
Factory dimension |
35m*(3~6)m*(4~6)m
45m*(3~6)m*(4~6)m
If your factory not big enough,please contact with us,our engineer can according to your size to design
|
More Details About PET Extrusion Making Machine
1. Components of pp pet packing belt machinery:

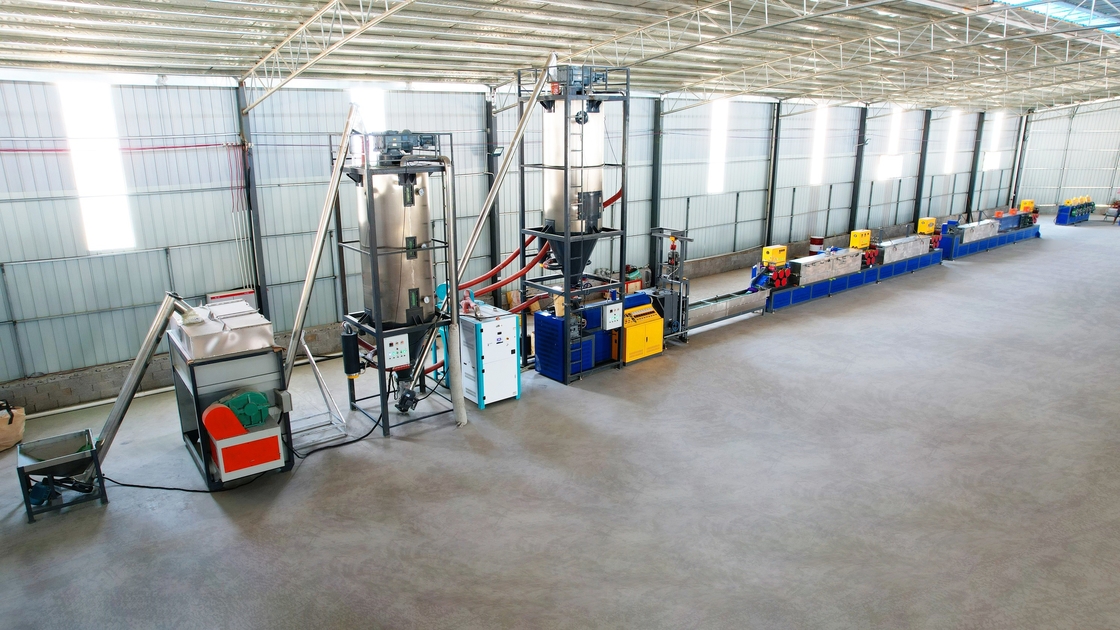

PET Strap Production Line consists of dehumidifying and crystallizing system, extruder, screen changer, mold, oven, haul-off, and winder, etc.
2. Production Process of PET Machinery
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
3. Application
With 100% bottle flakes recycled material, to produce various specifications of PET strap. It has been widely used in steel, chemical industry, aluminum, paper making, brick kiln, tobacco, electronics and textile and timber industries.
Features Of Plastic Strapping Band Making Machine
1. It is a high tech enterprise which is specialized in research, manufacture and marketing plastic recycling machine, pp strap making machine, plastic strap extruder line, pp strapping band production and pet recycling line, plastic washing and recycling line.
2.Our plastic extrusion lines based on Plastic Extruders: Single Screw Extruder, Conical Twin Screw Extruder and
Parallel Twin Screw Extruder.
3.Our plastic extruder machine many kinds of plastic productions like: plastic granules, plastic pellets, pp strap, strapping band, pp tape band , plastic strap and so on.
4.Plastic Extuder is widely used in Plastic industry.It is the main part of Plastic Profile Extrusion Line,Plastic Recycling Line and Plastic Granulating Line.
5.Our plastic extruder use good quality screw in plastic machinery.Our plastic machine have long-life.
