Twin Screw PP Strap Production Line Plastic Polypropylene Extrusion Machine

Twin Screw PP Strap Production Line Plastic Polypropylene Extrusion Machine
Twin Screw PP Strap Production Line Plastic Polypropylene Extrusion Machine
Twin Screw PP Strap Production Line Plastic Polypropylene Extrusion Machine Twin Screw PP Strap Production Line Plastic Polypropylene Extrusion Machine Twin Screw PP Strap Production Line Plastic Polypropylene Extrusion Machine Twin Screw PP Strap Production Line Plastic Polypropylene Extrusion Machine

Large Image :  Twin Screw PP Strap Production Line Plastic Polypropylene Extrusion Machine

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JTPP-110
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50set/month

Twin Screw PP Strap Production Line Plastic Polypropylene Extrusion Machine

Description
Product Type: PP Packing Belt Extrusion Line Raw Material: Polypropylene PP Raw Material Pellets, Recycled Pellets
Screw Design: Optional Twin Screw Type: Co-rotating Parallel Twin-screw
Driven Type: Electric Processing Type: Extruding Machine
Automation: Automatic Application: Packaging Strap
Highlight:

1 Screw PP Strap Production Line

,

Twin Screw PP Strap Production Line

,

1 Screw PP Strapping Extrusion machine

Plastic Polypropylene PP Strapping Production Line Extrusion Machine



Quick Details Of Plastic Polypropylene Strapping Band Extrusion Machine



Name: PP 1 to 4 strapping production line

Model number: JTPP-110

Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials

Number of screws: 1 Screw

Number of extruded belts: 4

Width range: 5-19mm

Thickness range: 0.4-1.2mm

Production capacity: 200kg/h

Installation size: L38*W2.0*H4.0(m)

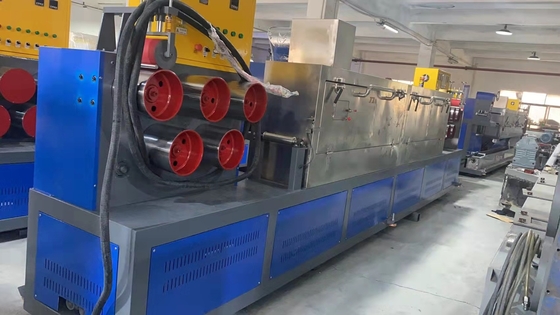

Configuration Of PP Strapping Production Line

NO. Name QTY
1 Color Mixer 1 set
2 Vacuum feeder or screw loader feeder
(100% raw material use vacuum feeder machine;recycled material use screw loader feeder machine) customer choose one of it.
1 set
3 Hopper dryer 1 set
4 SJ single screw extruder 1 set
5 High speed Screen exchanger device 1 set
6 Molud 1 set
7 Water cooling tank 1 set
8 The first traction machine- 5 rollers 1 set
9 The first Stretch forming oven 1 set
10 The Second traction machine- 5 rollers 1 set
11 The second Stretch forming oven 1 set
12 The Third traction machine- 3 rollers 1 set
13 Embossing machine 1 set
14 The Winder machine 1 set



Features Of PP Strap Extrusion Line

1. Better tensile strength: the PET strap production line has the tensile strength of the steel belt, and the ductility is good, and the anti-impact performance is better. It is not easy to break, and it can ensure the safety of product transportation.
2. Small extension: Although PET strap is one kind of plastics, its extension of change is very small, its elongation is only 1/ 6 of polypropylene, it can maintain tension force, after the packing make the expansion no longer change.
3. Strong temperature resistance: the experiment proved that the melting point of PET packing belt at about 260 ℃, can be used under the environment of 120 ℃ for a long time not to distort,it has a good stability.
4. Good economic benefit: the density of PET packaging belt is 1.30 ~ 1.38 g/cm3, which is only 1/6 of the steel belt density (7.8 g/cm3), which is equivalent to the length of the 6-ton steel belt, and the price of the same unit length is relatively low.
5. Environmentally friendly: the steel belt will rust due to exposure to the air, and the rust is highly permeable to the packaging. PET packing tape is beautiful and not rusted, but avoid unnecessary worry. It can also be recycled.
6. Good flexibility and safe operation: the PET packing strip has no sharp edge with steel belt, it will not scratch the package, and it will not hurt the hand. You don’t need a special tool when you cut it, even if it’s tight, it doesn’t hurt when you cut it.
7.High quality packaging ideal products: PET packaging with all kinds of bright colors, shiny, high quality, the most ideal packaging products of high-end packaging.


Twin Screw PP Strap Production Line Plastic Polypropylene Extrusion Machine 0

Turnkey Project Service About PP Strapping Machine
Pre-sale service:
1. To provide all the machines for the complete testing according to customer's requirements.
2. To provide complete service for factory layout and other information to help customer to build the factory.
After-service:
1. To provide raw material to the customer if you need.
2. Free installation and debugging and training until customers can run the machines and make stably production.
3. Provide all kinds of product formula, technology
4. According to the customer's requirements, provide technical guidance
5. Responsible for maintenance service, door to door service if necessary.
6. Except one year quality guarantee,we will provide after-sell service for all the life.
Twin Screw PP Strap Production Line Plastic Polypropylene Extrusion Machine 1

FAQ ABOUT PP BELT STRAPPING PRODUCTION LINE

Q1: Are you a trading company or a factory?

A1: We are a factory,can give u best service.


Q2: When can I get my machine after I paid?

A2: We will deliver the machines on time as the date we agreed both side.


Q3: How can I install my machine when it arrives?
A3: We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.



Q4: What's your guarantee or the warranty of the quality if we buy your machines?

A4: We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years.
