100% Recycled Material PET Strap Production Line Plastic Strap Making Machine
QUICK DETAIL ABOUT PET STRAP MAKING MACHINE
Name: PET 1 to 6 strapping production line
Applicable raw materials: PET raw material or 100% PET bottle flakes recycled
Number of screws: 1 Screw
Number of extruded belts: 1, 2, 4, 6
Width range: 9-32mm
Thickness range: 0.6-12mm
Production capacity: 200kg/h 250kg/h 350kg/h
Installation size: 35m*(3~6)m*(4~6)m or 45m*(3~6)m*(4~6)m
SPECIFICATION OF PET STRAPPING PRODUCTION LINE
| NO. |
Item |
Specification |
| 1 |
Power |
According to customer's factory voltage |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Capacity |
PETJT90:200kg/h
PETJT100:250kg/h
PETJT125:350kg/h
|
| 4 |
Product size |
Width:9-32mm
Thickness:0.6-12mm
|
| 6 |
Mid-height of extruder |
7000mm |
| 7 |
Installation power |
PETJT90:200KW
PETJT100:250KW
PETJT125:300KW
|
| 8 |
Humidity |
<85% |
| 9 |
Temperature |
0-40 degree |
| 10 |
Cooling tower capacity |
30T/H or 50T/H |
| 11 |
Installation Dimensions |
PETJT90:45*2.0*7.0M
PETJT100:45*2.0*7.0M
PETJT125:60*3.0*8.0M
|
| 12 |
Product color |
Green/Black/Pink/Yellow |
| 13 |
Factory dimension |
35m*(3~6)m*(4~6)m
45m*(3~6)m*(4~6)m
If your factory not big enough,please contact with us,our engineer can according to your size to design
|
MORE DETAILS ABOUT PET PACKING BELT MACHINERY
1. Components of pp pet packing belt machinery:

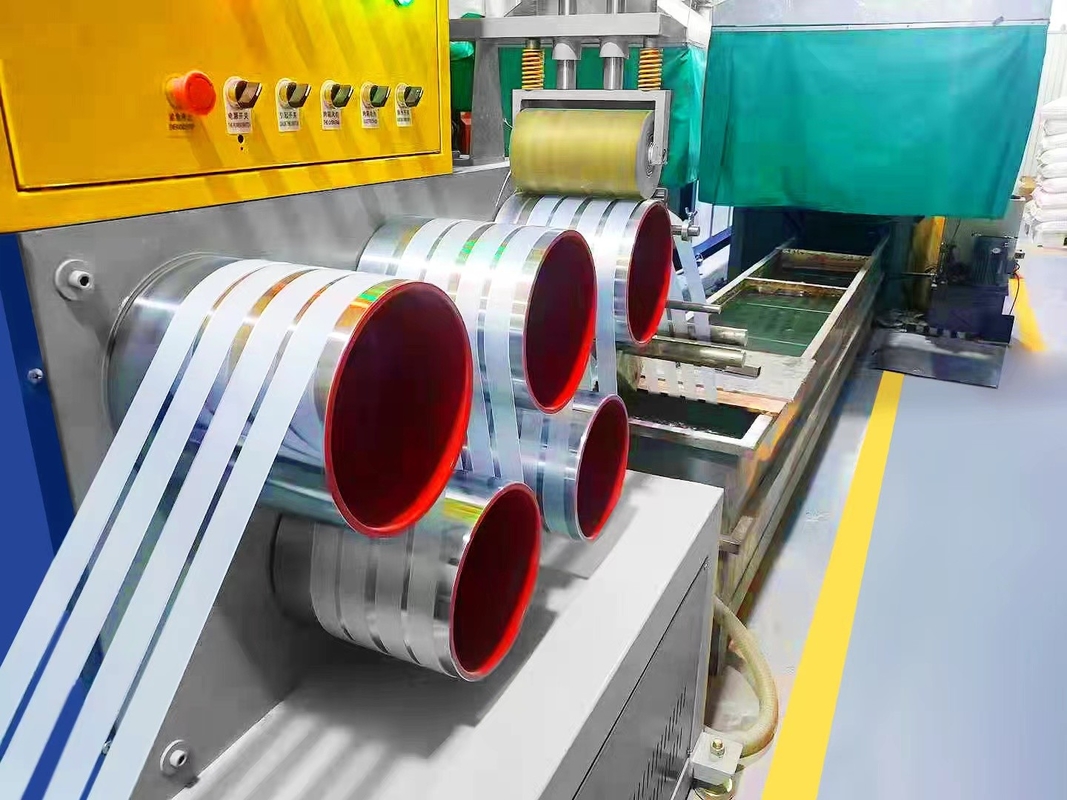

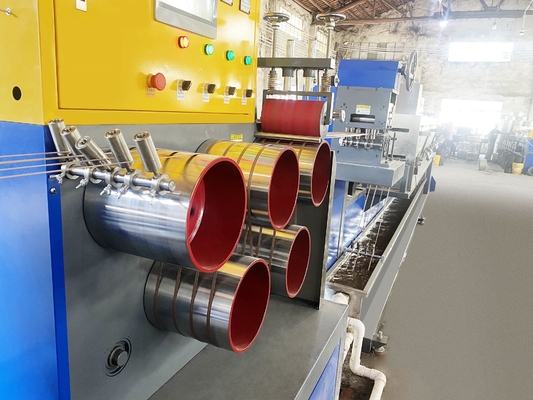

PET Strap Production Line consists of dehumidifying and crystallizing system, extruder, screen changer, mold, oven, haul-off, and winder, etc.
2. Production Process of PET Machinery
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
3. Application
With 100% bottle flakes recycled material, to produce various specifications of PET strap. It has been widely used in steel, chemical industry, aluminum, paper making, brick kiln, tobacco, electronics and textile and timber industries.
FEATURES OF PET STRAP EXTRUSION PRODUCTION LINE
1. It is suitable for all levels of recycled plastic particles, and produces sandwich belts and PP environmentally friendly packing belts;
2. It can be used to directly produce manual packing belts;
3. It can also be directly processed into hand-use, machine-use, printing packing tape, ultra-wide, ultra-thin, ultra-narrow, transparent, dyeing, and printing PP packing tape;
4. It is currently the most cost-effective and competitive product on the market, and is popular among small and medium-sized investors;
5. It can produce all kinds of manual belts, machine-use PP packing belts and export belts.
APPLICATION OF PET STARPPING MAKING MACHINE
This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.
