PET 350kg/H Strapping Production Line Recycled PET Flakes Band Extrusion Machine
PET PACKAGING BELT EXTRUDING MACHINE DESCRIPTION

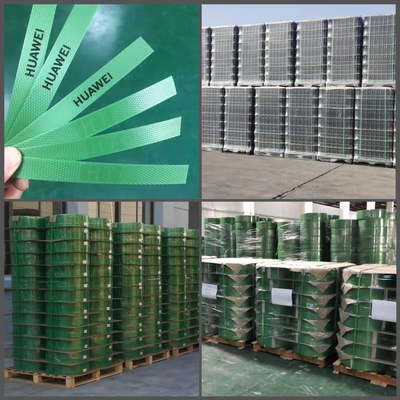

PET strap is recognized a new environment protective strapping material to substitute for Steel Strap &PP Strap in the ruling international market.
They are not only the aggregation of the intensity and the tenacity of steel strap, but also overcome the disadvantage of the tradition packing material such as insufficient intensity, brittle and so on. At present, they have been applied in wood, steel, and so on.

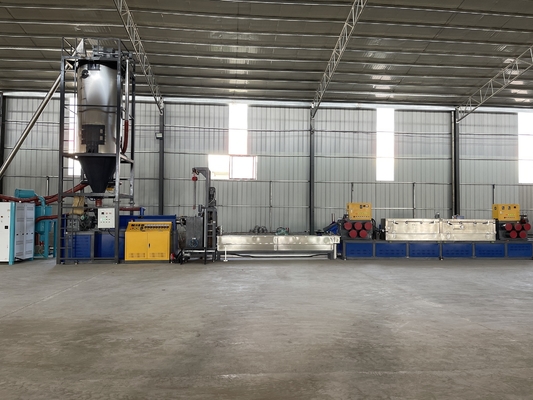

Our company this line adopt the PLC control the whole line do the automatic production. It use the melting pump and pressure sensor ensure the production stable and strap quality control.
The raw material you can use 100% recycled PET flakes from the waste PET bottles, or virgin material or mixed with each other.
PET Strap Production Line Machine List
| NO. |
Item |
Specification |
| 1 |
Power |
According to customer's factory voltage |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Capacity |
PETJT90:200kg/h
PETJT100:250kg/h
PETJT125:350kg/h
|
| 4 |
Product size |
Width:9-32mm
Thickness:0.6-12mm
|
| 6 |
Mid-height of extruder |
7000mm |
| 7 |
Installation power |
PETJT90:200KW
PETJT100:250KW
PETJT125:300KW
|
| 8 |
Humidity |
<85% |
| 9 |
Temperature |
0-40 degree |
| 10 |
Cooling tower capacity |
30T/H or 50T/H |
| 11 |
Installation Dimensions |
PETJT90:45*2.0*7.0M
PETJT100:45*2.0*7.0M
PETJT125:60*3.0*8.0M
|
| 12 |
Product color |
Green/Black/Pink/Yellow |
| 13 |
Factory dimension |
35m*(3~6)m*(4~6)m
45m*(3~6)m*(4~6)m
If your factory not big enough,please contact with us,our engineer can according to your size to design
|
OUR SERVICE
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Wechat)
2. Professionally and patiently introduction, details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale 1. Free insurance for goods
4. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
Service after sales
1. After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine, we will test the machines and send the sample to buyer.
2. After shipment, the seller will send one or two technicians to the buyer' s factory to help the buyer install the machine and train workers for buyer.
3. We will supply all electricity drawing, machine installation drawing.
4. When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays, and other items which is easier broken.
1.The system has Materials dehumidifying,dynamic drying,automatic dust removal,and centralized collection
Energy-saving and efficient dehumidifier,using Siemens PID unit;
Two-stage dehumidification effect through freezing compression and honeycomb treatment;
Eliminate the crystallization of materials,thereby saving input costs,reducing electricity consumption.
And significantly shortens drying
2.Continuous melt fitration
100% venting through venting grooves
4 screen cavities
75% of the total filtration area is kept in the product flow during the replacement of the screens indepedent of the operator
Longlife media owing to 100 times backflushing.

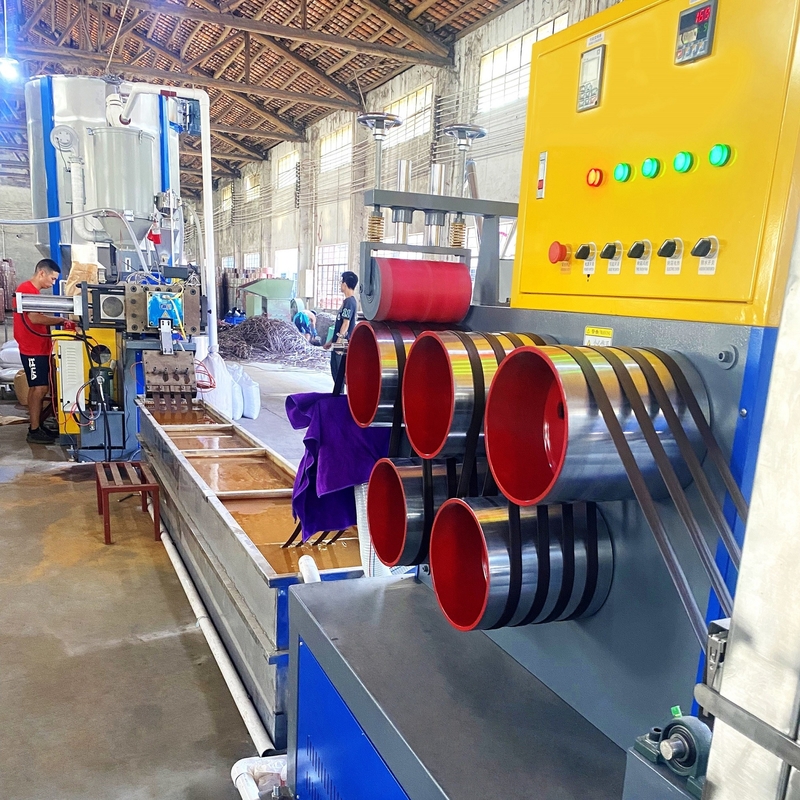

3.Stretching machine and stretching oven
Stretching machine is frequency control,mold temperature machine control roller surface temperature
The oven is made of high-performance insulation layer to save energy and better maintain the constant temperature of the strap.
Airflow speed control device,adjustable airflow and belt direction parallel
4.Heat setting and cooling system
Conductive to rapid heat setting of the strap after stretching to eliminate internal stress.
The heat body is made of high-performance insulation layer to save energy and better maintain the constant temperature of the strap.
PID temperature control system
Cooling system function to control the complete cooling and crystallinity of the strap,ensuring stable size of the strap.
5.Strapping Accumulator Unit
The strap length and the winding tension can be controlled according to strap wind speed.
Second complete cooling strapping
Reduce strapping winding camber.
6.Servo control winder(Single position and double position optionnal)
PLC control system,automatically adjust winding tension.
Winding range from 5mm-32mm.
Servo motor controls winder displacement width and distance.
Reduce the strap bending,make sure the strap is fit for automatic packaging equipment.
