Plastic PET PP Strap Belt Band Extrusion Line Production Line Making Machine
DESCRIPTION OF PET EXTRUDER MACHINE
The PP/PET strap extrusion line making machine is developed by our company and combines European advanced technology. It has the advantages of unique structure, advanced configuration, fully automatic, easy operation, high output, good plasticization, stability and reliability.
PP/PET strap produced by our machine has the moderate rigidity strength, good flexibility, creep resistant, environmental stress crack resistance and favorable hot melting property.
PET Strap Production Line Machine List
| NO. |
Item |
Specification |
| 1 |
Power |
According to customer's factory voltage |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Capacity |
PETJT90:200kg/h
PETJT100:250kg/h
PETJT125:350kg/h
|
| 4 |
Product size |
Width:9-32mm
Thickness:0.6-12mm
|
| 6 |
Mid-height of extruder |
7000mm |
| 7 |
Installation power |
PETJT90:200KW
PETJT100:250KW
PETJT125:300KW
|
| 8 |
Humidity |
<85% |
| 9 |
Temperature |
0-40 degree |
| 10 |
Cooling tower capacity |
30T/H or 50T/H |
| 11 |
Installation Dimensions |
PETJT90:45*2.0*7.0M
PETJT100:45*2.0*7.0M
PETJT125:60*3.0*8.0M
|
| 12 |
Product color |
Green/Black/Pink/Yellow |
| 13 |
Factory dimension |
35m*(3~6)m*(4~6)m
45m*(3~6)m*(4~6)m
If your factory not big enough,please contact with us,our engineer can according to your size to design
|
Features of PET packing strap production line:
1--The raw material will be dried by the dehumidifier, and the below 40 dew point make the material humidity less than 40PPM and condensation polymerization;
2--The conveyor of the raw is in a enclosed and circular mode, and without contacting with the air, in order to made perfect effect of drying;
3--Special designed extruder screw for PET production, bear the better performance of material separating and mixing. Automatic material feeding provide the smooth environment for the PET strap production.
4--Special designed extrusion die & mould; And the improved screen changer realize non-stop screen changing, and without material leakage;
5--Water tank cooling the PET strap band. The steady water temperature enhance of the molecular tension strength;
6--Heating cabinet is used for thermal annealing, relief the band distortion after long-time storage;

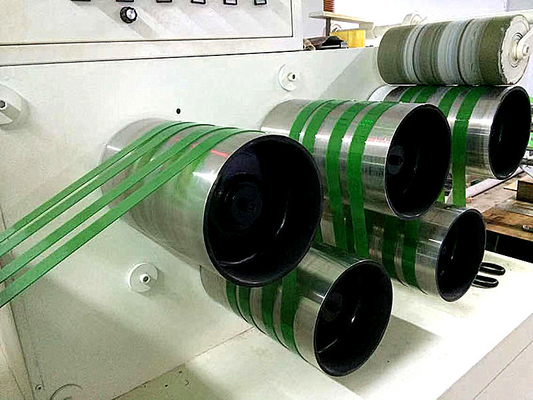

7--Dual-station automatic winder, easy operation; We provide our worldwide customer the turn-key project. We will assist our customer from the installation to the final production of this line. PET strap machine, PET strap machinery, PET strap plant, PET strap production line, PET strap line, PET strap band making machine, PET strap making machine, plastic machinery, PET strap production line, PET strap extrusion
line, extruder, plastic extruder, plastic extruders, plastic machine
DETAILS ABOUT PET STRAP MAKING MACHINE
1. Components of pp pet packing belt machinery:

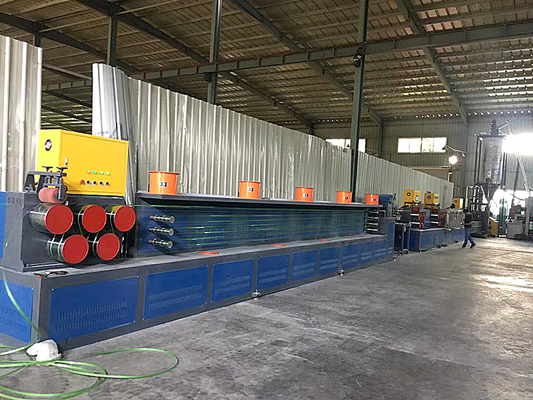

PET Strap Production Line consists of dehumidifying and crystallizing system, extruder, screen changer, mold, oven, haul-off, and winder, etc.
2. Production Process of PET Machinery
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
3. Application
With 100% bottle flakes recycled material, to produce various specifications of PET strap. It has been widely used in steel, chemical industry, aluminum, paper making, brick kiln, tobacco, electronics and textile and timber industries.
