Unique Single Screw PET Strapping Band Extruder Machine 380kg/H PET Strap Manufacturing Machine
PET Strap Production Line Machine List
| NO. |
Item |
Specification |
| 1 |
Power |
According to customer's factory voltage |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Capacity |
PETJT90:200kg/h
PETJT100:250kg/h
PETJT125:350kg/h
|
| 4 |
Product size |
Width:9-32mm
Thickness:0.4-12mm
|
| 6 |
Mid-height of extruder |
7000mm |
| 7 |
Installation power |
PETJT90:200KW
PETJT100:250KW
PETJT125:300KW
|
| 8 |
Humidity |
<85% |
| 9 |
Temperature |
0-40 degree |
| 10 |
Cooling tower capacity |
30T/H or 50T/H |
| 11 |
Installation Dimensions |
PETJT90:45*2.0*7.0M
PETJT100:45*2.0*7.0M
PETJT125:60*3.0*8.0M
|
| 12 |
Product color |
Green/Black/Pink/Yellow |
| 13 |
Factory dimension |
35m*(3~6)m*(4~6)m
45m*(3~6)m*(4~6)m
If your factory not big enough,please contact with us,our engineer can according to your size to design
|
Features of PET packing strap production line
1--The raw material will be dried by the dehumidifier, and the below 40 dew point make the material humidity less than 40PPM and condensation polymerization;
2--The conveyor of the raw is in a enclosed and circular mode, and without contacting with the air, in order to made perfect effect of drying;
3--Special designed extruder screw for PET production, bear the better performance of material separating and mixing. Automatic material feeding provide the smooth environment for the PET strap production.
4--Special designed extrusion die & mould; And the improved screen changer realize non-stop screen changing, and without material leakage;
5--Water tank cooling the PET strap band. The steady water temperature enhance of the molecular tension strength;
6--Heating cabinet is used for thermal annealing, relief the band distortion after long-time storage;
7--Dual-station automatic winder, easy operation; We provide our worldwide customer the turn-key project. We will assist our customer from the installation to the final production of this line. PET strap machine, PET strap machinery, PET strap plant, PET strap production line, PET strap line, PET strap band making machine, PET strap making machine, plastic machinery, PET strap production line, PET strap extrusion
line, extruder, plastic extruder, plastic extruders, plastic machine

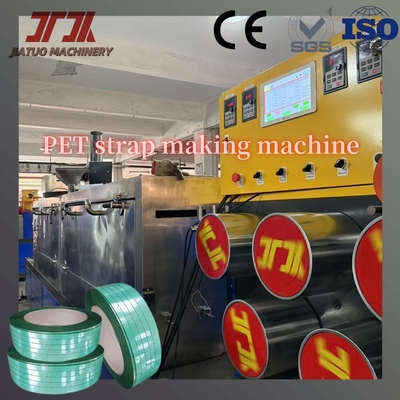

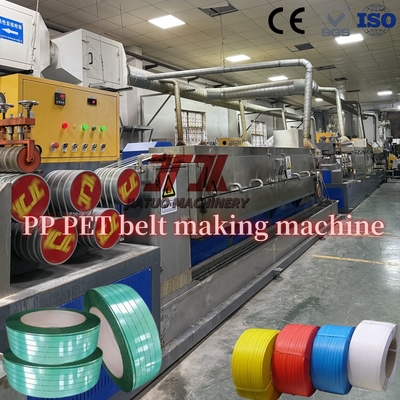

DETAILS ABOUT PET STRAP MAKING MACHINE
1. Components of pp pet packing belt machinery:

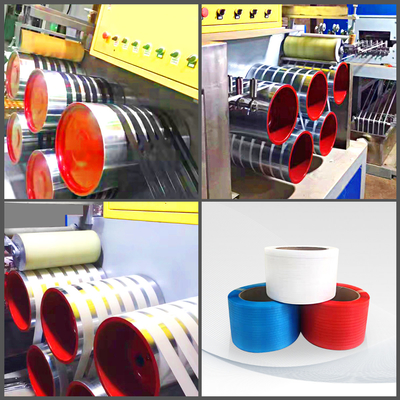

PET Strap Production Line consists of dehumidifying and crystallizing system, extruder, screen changer, mold, oven, haul-off, and winder, etc.
2. Production Process of PET Machinery
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
3. Application

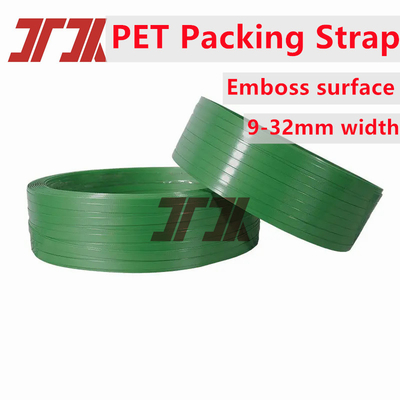

With 100% bottle flakes recycled material, to produce various specifications of PET strap. It has been widely used in steel, chemical industry, aluminum, paper making, brick kiln, tobacco, electronics and textile and timber industries.
pet packing tape making machine,pet packing tape plastic extruders,pet packing tape production line,pet plastic sheet extrusion line,pet recycling extruder machine,pet recycling production line,PET strap band tape production line,pet strap extrusion machine,pet strap making machine,pet strap plastic machinery,pet strap production line,pet strapping band production line,PET Straps extrusion line,,barrel single screw extruder,plastic extruder single screw and barrel,extruder single screw,strapping band extruding machine,strapping band production line,plastic strapping machine,plastic strapping band making machine,plastic strapping band production line,plastic extruder machine,extrusion machine,extrusion line,extruder plastic,extruder,extruder machine,plastics extrusions,plastic extrusions,plastic strapping band machine
