Product Details:
|
| Product Type: | PET Strap Making Production Line | Raw Material: | PET Flakes Or 100% Recycled Material |
|---|---|---|---|
| PET Thickness Range: | 0.6-12mm | PET Strap Width: | 9-32mm |
| Capacity: | 200kg/h | Driven Type: | Electric |
| Motor: | GUGAO | Voltage: | According To Customer's Factory |
| Strap Color: | Green/Pink/yellow/black | Application: | Packaged Material |
| After-sales Service Provided: | Video Technical Support, Online Support | Warranty: | 1 Year |
| Highlight: | Polyerster PET strap production line,Electric Driven PET strap production line,200kg/h pet strapping band making machine |
||

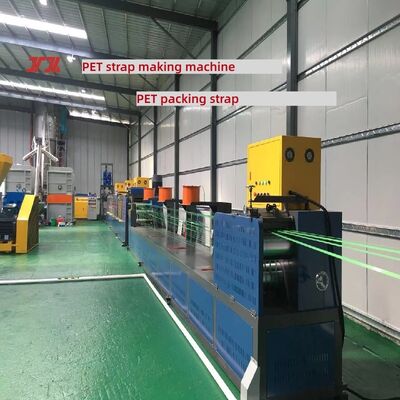

Polyerster PET Strap Production Line Electric Driven PET Strapping Band Making Machine
PRODUCT DESCRIPTION
PET strap, also known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline, have been widely used in the steel industry, chemical fiber industry, aluminum ingots, paper, brick kiln industry, screw industry, tobacco industry, electronics, textiles and wood, etc.; It is replaced by a new high-strength steel strapping, is the world’s most widely used for steel products with high strength.
PET Strap Production Line Machine List
| Model of machine | Total power | Running power | Capacity |
| PET1-2 90MM | 200KW | 110-120KW | 150-180K/H |
| PET1-3 110MM | 250KW | 150-160KW | 300-330KG/H |
| PET1-4 125MM | 300KW | 180-190KW | 400-450KG/H |
DETAILS ABOUT PET STRAP MAKING MACHINE
1. Components of pp pet packing belt machinery:
PET Strap Production Line consists of dehumidifying and crystallizing system, extruder, screen changer, mold, oven, haul-off, and winder, etc.
2. Production Process of PET Machinery
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
3. Application
With 100% bottle flakes recycled material, to produce various specifications of PET strap. It has been widely used in steel, chemical industry, aluminum, paper making, brick kiln, tobacco, electronics and textile and timber industries.
![]()
Features of PET packing strap production line
1) The PET raw material preheating and drying stages utilize an automatic circulation system, which significantly reduces capital investment and lowers production costs by 30%;
2) The use of recycled regrind as raw material substantially reduces costs;
3) Precision die heads enable the direct production of PET strapping in various specifications without the need to change die heads;
4) Low energy consumption combined with high production capacity;
5) Operation is simple and labor-saving, requiring an average of only two operators per production line.
![]()
![]()
Q:What is the voltage of PET strap making equipment?
A:380V/50HZ, we support customization
Q:Can the PET strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PET strapping equipment produced?
A:We are from China.
Q:Can PET strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PET strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PET strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
![]()
