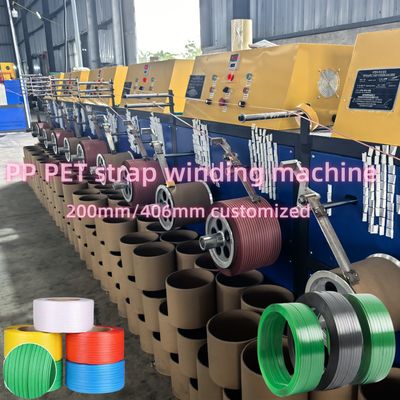

6tons Per Day Plastic PET Strap Making Machine Pet Strap Manufacturing Production Line
PRODUCT DESCRIPTION
PET strap, also known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline, have been widely used in the steel industry, chemical fiber industry, aluminum ingots, paper, brick kiln industry, screw industry, tobacco industry, electronics, textiles and wood, etc.; It is replaced by a new high-strength steel strapping, is the world’s most widely used for steel products with high strength.
PET Strap Production Line Machine List
| NO. |
Item |
Specification |
| 1 |
Power |
According to customer's factory voltage |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Capacity |
PETJT90:160kg/h |
| PETJT100:250kg/h |
| PETJT125:350kg/h |
| 4 |
Product size |
Width:9-32mm |
| Thickness:0.6-12mm |
| 5 |
Installation power |
PETJT90:200KW |
| PETJT100:250KW |
| PETJT125:300KW |
| 6 |
Cooling tower capacity |
30T/H or 50T/H |
| 7 |
Installation Dimensions |
PETJT90:45*2.0*7.0M |
| PETJT100:45*2.0*7.0M |
| PETJT125:60*3.0*8.0M |
| 8 |
Product color |
Green/Black/Pink/Yellow |
| 9 |
Factory dimension |
If your factory not big enough,please contact with us,our engineer can according to your size to design |
Features of PET packing strap production line
1. The raw material treatment is by our serious dehumidify and dryness system, it ensures the humidity in raw material less than 80PPM.
2. Closed circulation feeding system prevent the material from exposure on air to keep the dryness of raw material.
3. The screw is specially designed for PET application, it consists of separate and mixing part to keep the even plastication, also by fixed material feeding system, the extrusion is stable, which ensures the good dimension of PET strap.
4. The machine can produce 1/2/4 strap at the same time.
5. The mould is specially designed, equipped with two-stage filter.
6. Constant temperature heating device provide even cooling environment for PET strap to raise the tensile strength performance.
7. Anneal treatment for finished PET strap to remove the part remaining stress to keep good shape.
DETAILS ABOUT PET STRAP MAKING MACHINE
1. Components of pp pet packing belt machinery
PET Strap Production Line consists of dehumidifying and crystallizing system, extruder, screen changer, mold, oven, haul-off, and winder, etc.
2. Production Process of PET Machinery
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
3. Application
With 100% bottle flakes recycled material, to produce various specifications of PET strap. It has been widely used in steel, chemical industry, aluminum, paper making, brick kiln, tobacco, electronics and textile and timber industries.
pet packing making machine,pet packing strap plastic extruders,pet packing tape production line,pet plastic sheet extrusion line,pet recycling extruder machine,pet recycling production line,PET strap band tape production line,pet strap extrusion machine,pet strap making machine,pet strap plastic machinery,pet strap production line,pet strapping band production line,PET Straps extrusion line,,barrel single screw extruder,plastic extruder single screw and barrel,extruder single screw,strapping band extruding machine,strapping band production line,plastic strapping machine,plastic strapping band making machine,plastic strapping band production line,plastic extruder machine,extrusion machine,extrusion line,extruder plastic,extruder,extruder machine,plastics extrusions,plastic extrusions,plastic strapping band machine
FAQ
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
